Excavator Spare Parts

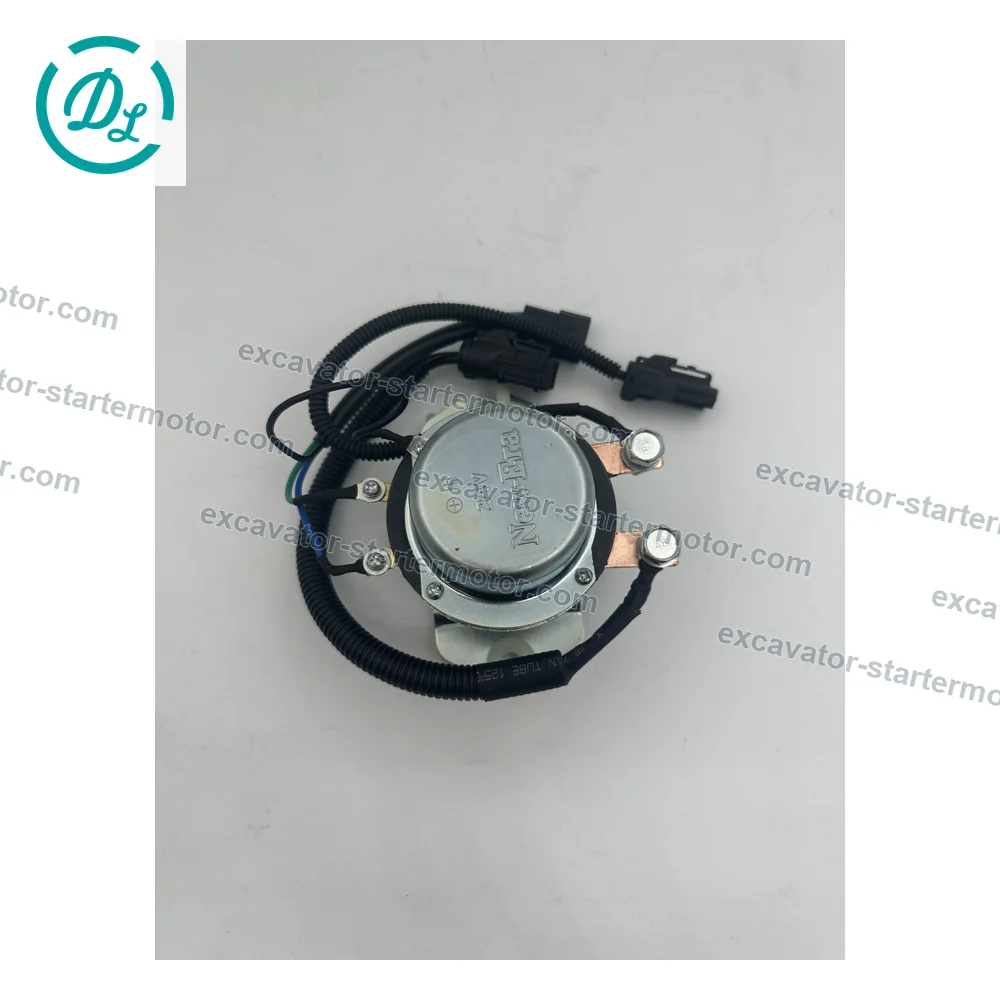

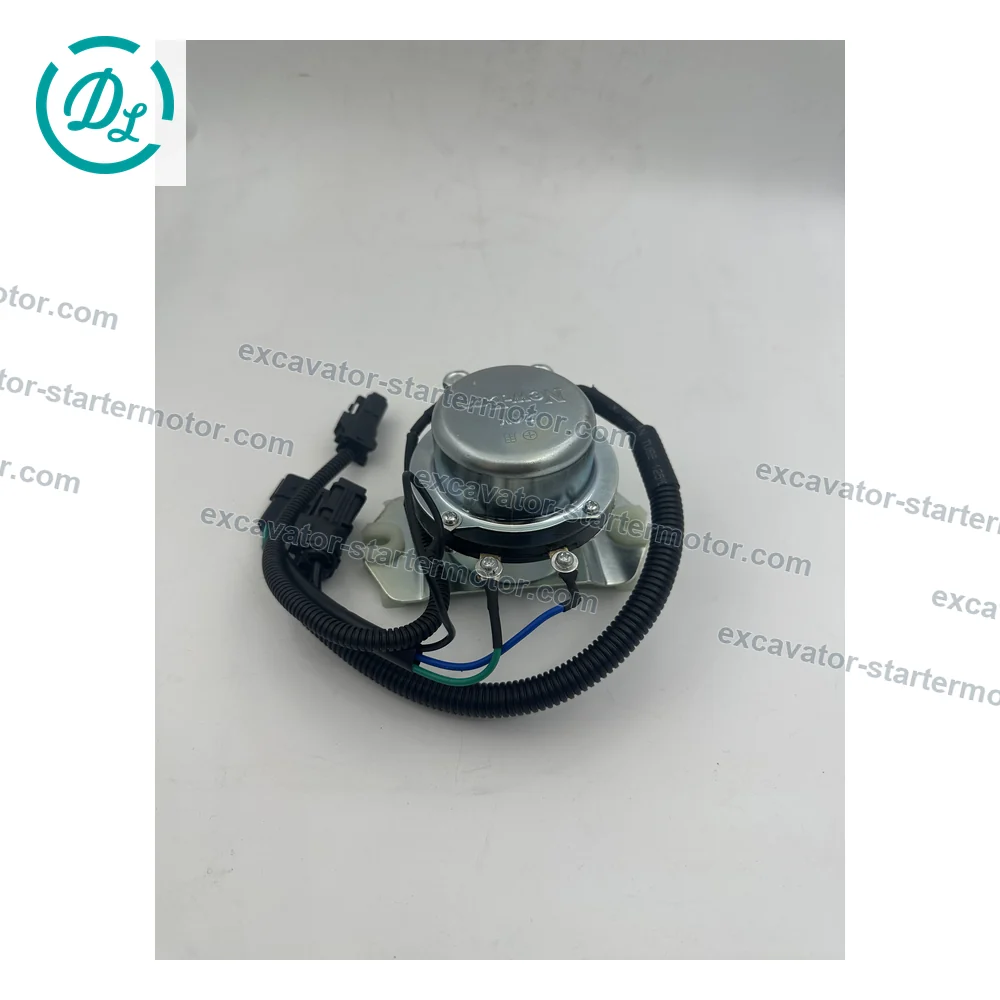

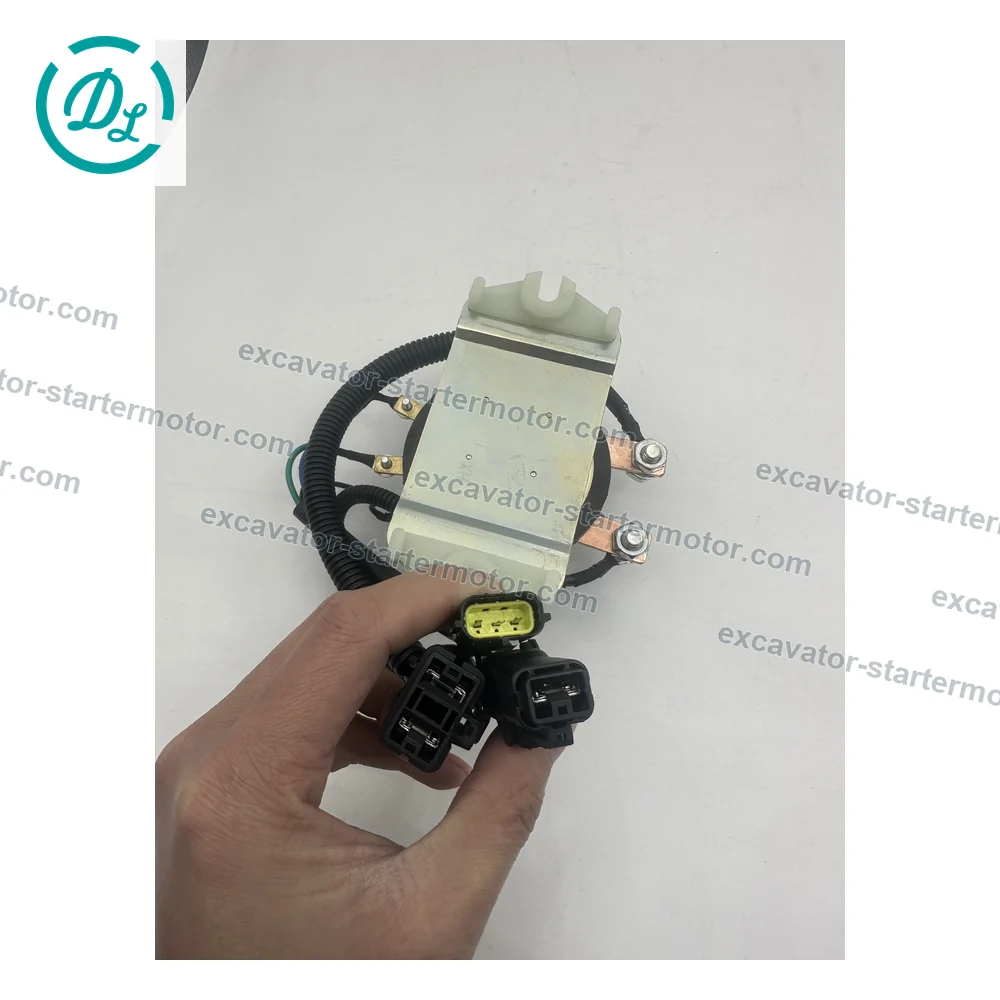

6 product photos · Swipe on mobile, or hover and select a thumbnail.
Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.
Quotation details: MOQ, availability, lead time, item condition (new or remanufactured) and warranty coverage must be confirmed in your quotation before ordering.
| Relationship | Reference family | Number |
|---|---|---|
| Primary Equipment Part Number | Kobelco battery-relay assembly number | YN24S00003F1 |
| Documented Replacement Family - Verify Connectors | Published in aftermarket listings; confirm circuit, base and harness before ordering | YN24S00003F2 |
Product fitment guide
Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.
Part identification
Formatting aliases are the same number written differently. Cross-references require a specification and fitment check; they do not by themselves confirm direct interchangeability. Related assemblies and remanufactured numbers are separate relationship types.
Product summary
Before ordering
Machine fitment
2 model references
Fitment / evidence notes
Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.
Quick fitment answers
Recorded compatible model references include Published excavator models: Kobelco SK200-6, SK200-8, System: Battery main relay / electrical power control. Recorded fitment/evidence notes: Fitment limitation: Confirm YN24S00003F1, 24V system, terminal layout, connector keys, mounting bracket, harness and machine serial range. Confirm the complete part number and machine serial range before ordering.
No alternate number is listed for YN24S00003F1. Send the original nameplate for an alternate-number check.
Match the complete part number on the original component. Compare connectors, mounting points and visible dimensions with the product photos. Confirm the exact machine or engine model and serial range before ordering. Send clear photos of the original unit and connector layout when requesting a quote.
