S7501 506211-6571 24V DKS15CH A/C Compressor for Hitachi EX120-5G EX200-5G

Q: What numbers are documented for S7501?

Primary Compressor Model: S7501. Manufacturer Cross Reference: 506211-6571. Same-number Formatting Variant: 5062116571. Cataloged Configuration Reference: 506011-6800. Cataloged Configuration Reference: 506011-7441. Cataloged Configuration Reference: 506211-5762. Relationship labels distinguish formatting aliases, direct interchanges, remanufactured references and related assemblies.

Q: How do I confirm S7501 before ordering?

Match the complete part number, compare the connector or mounting arrangement with the product photos, and confirm the machine or engine model and serial range. Send clear photos of the original unit when requesting a quote.

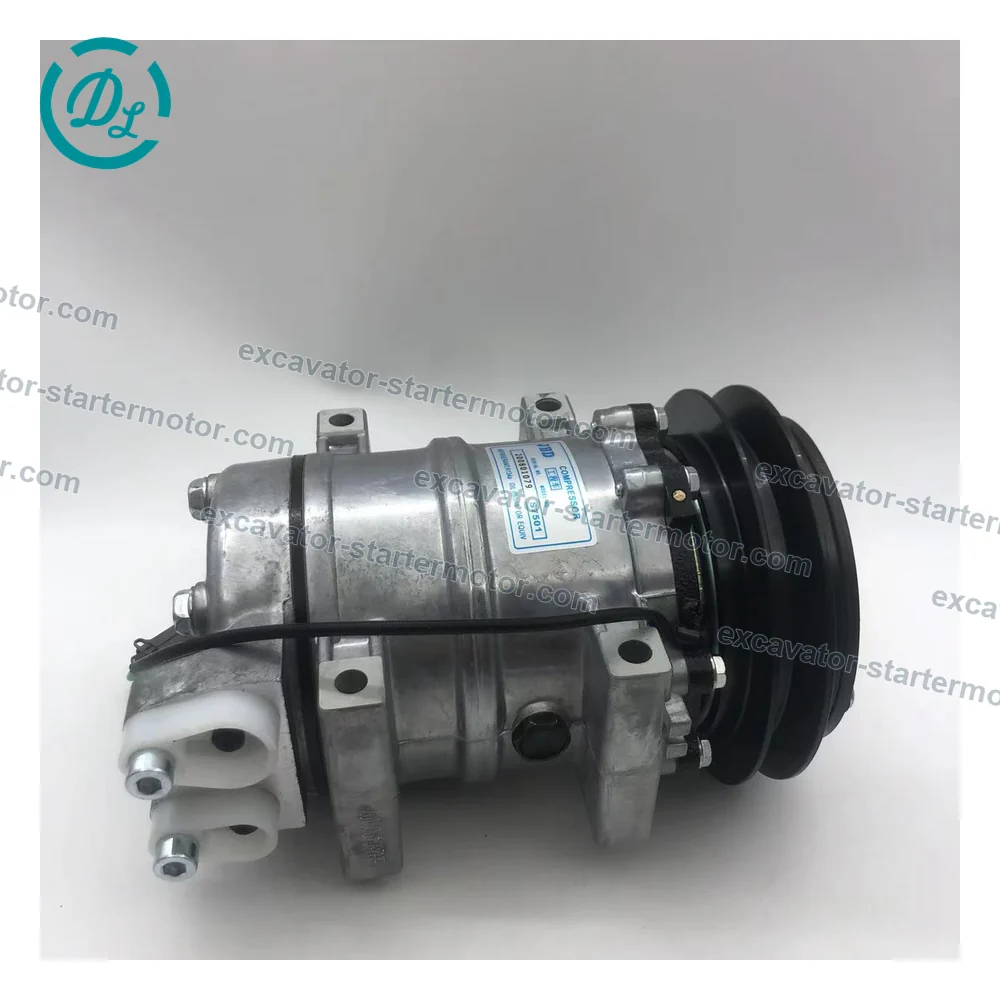

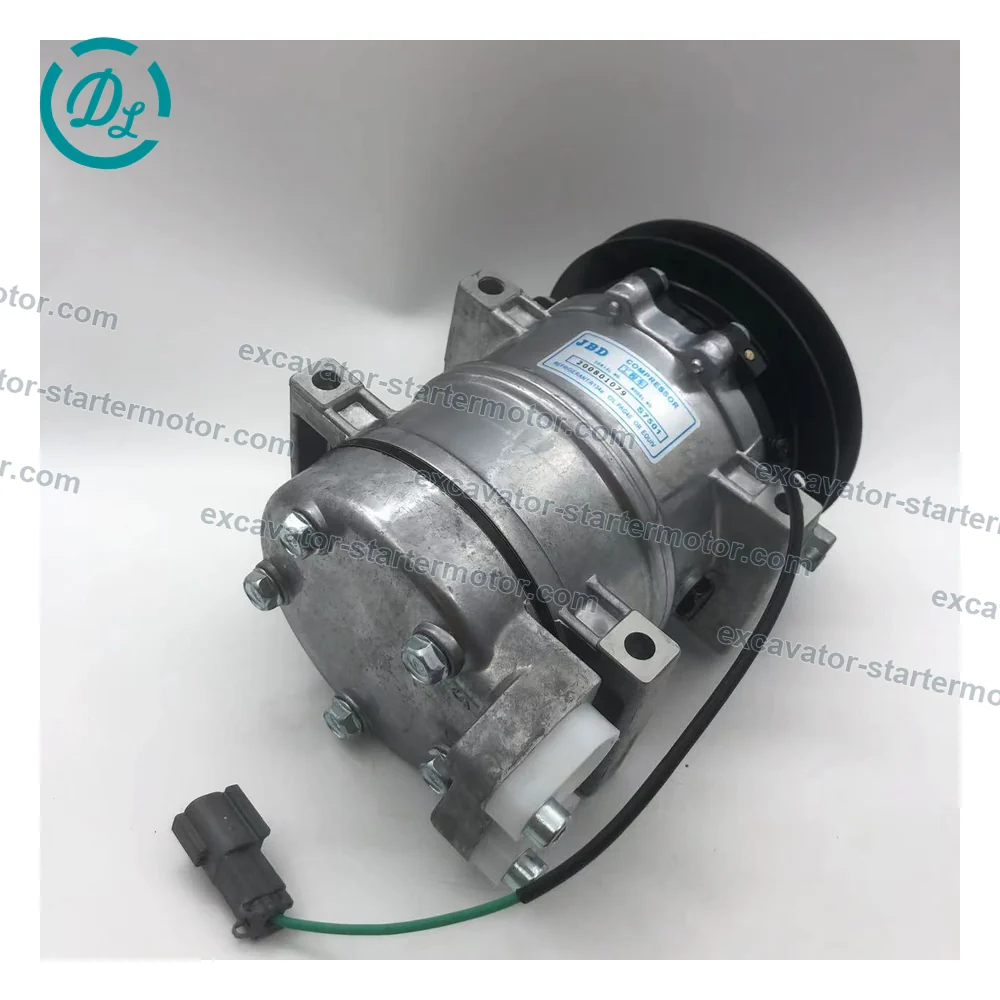

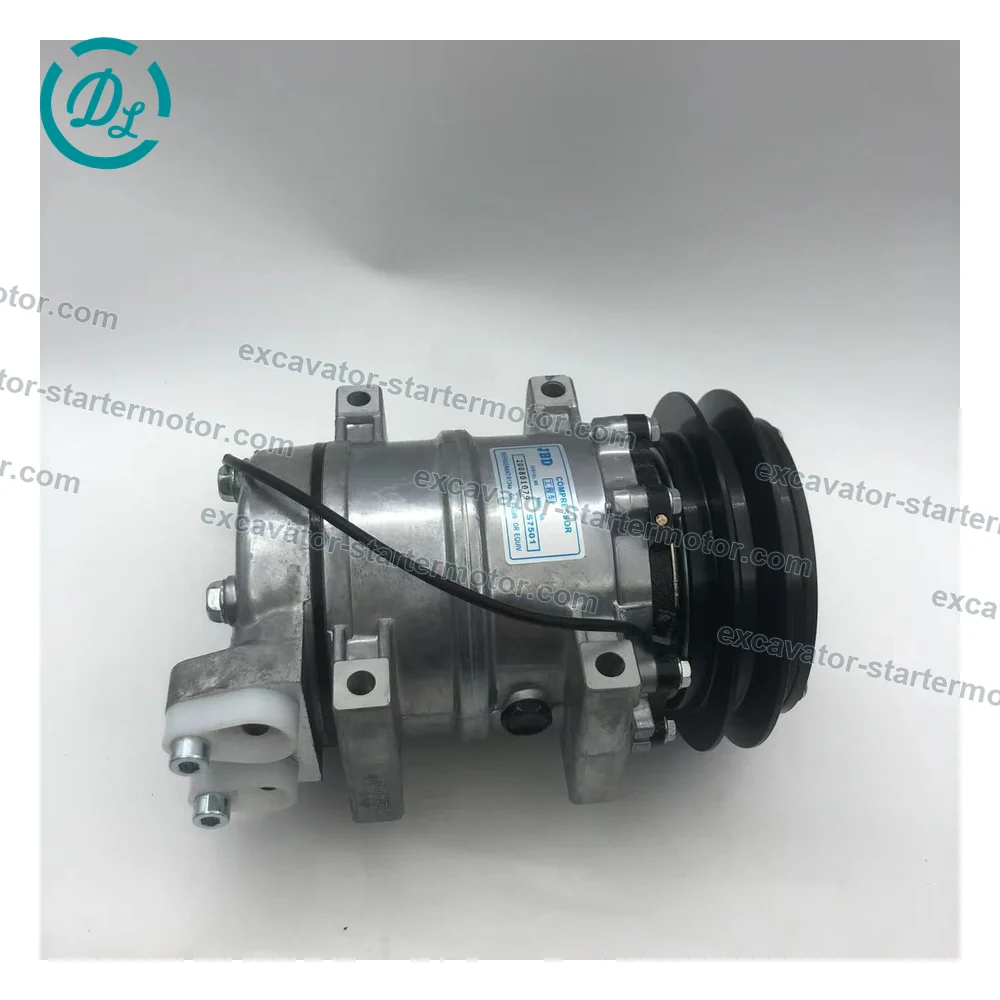

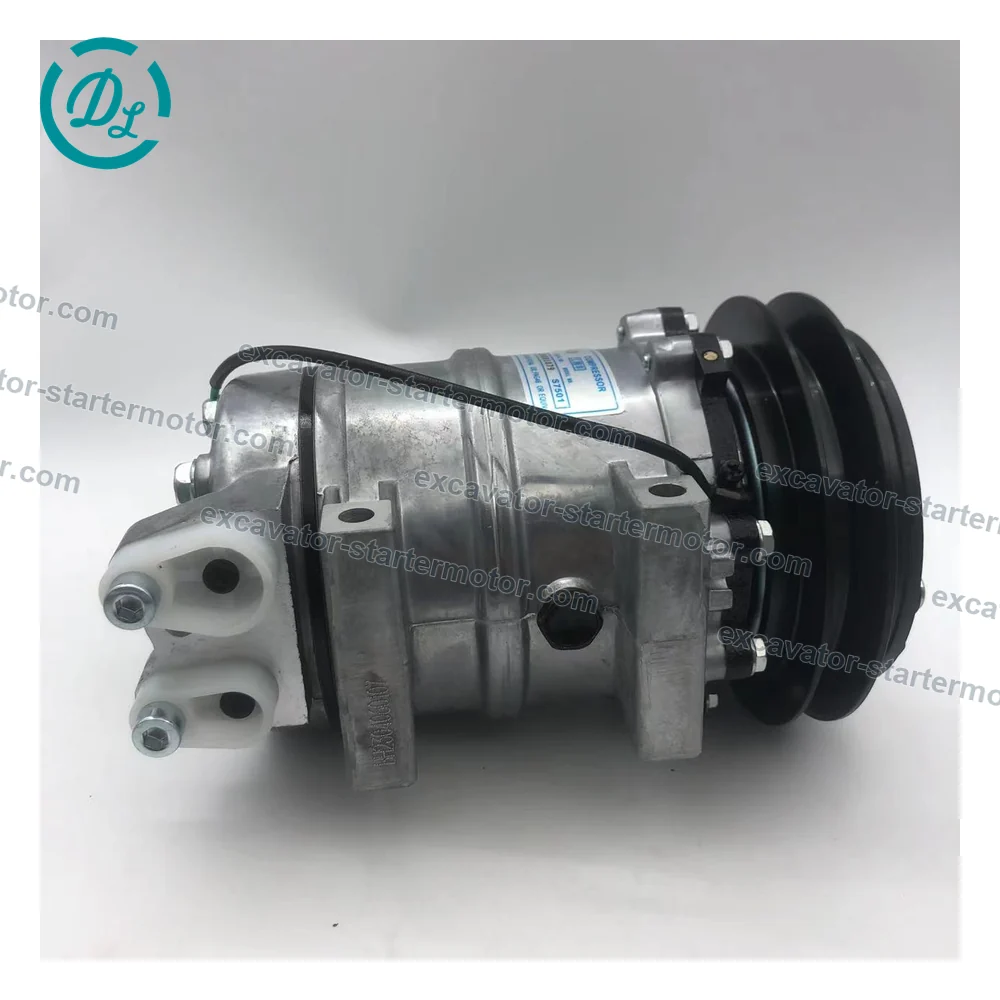

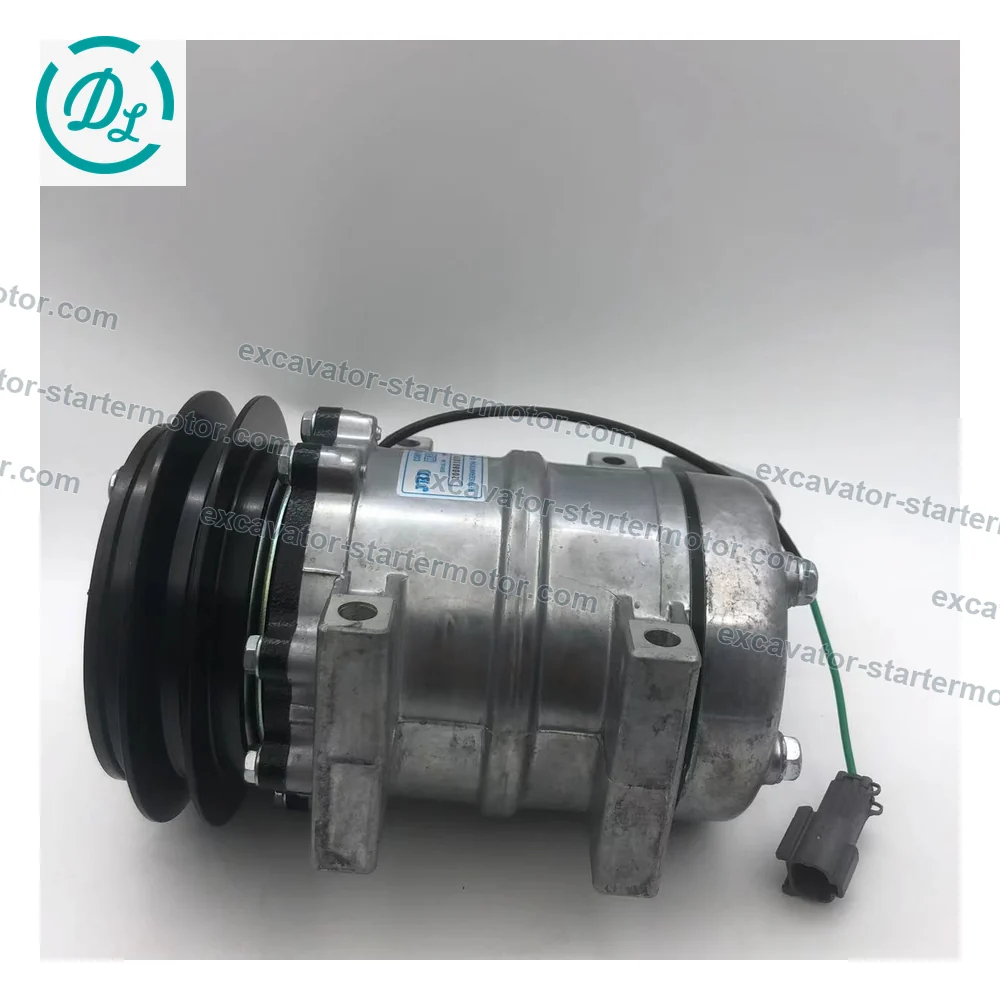

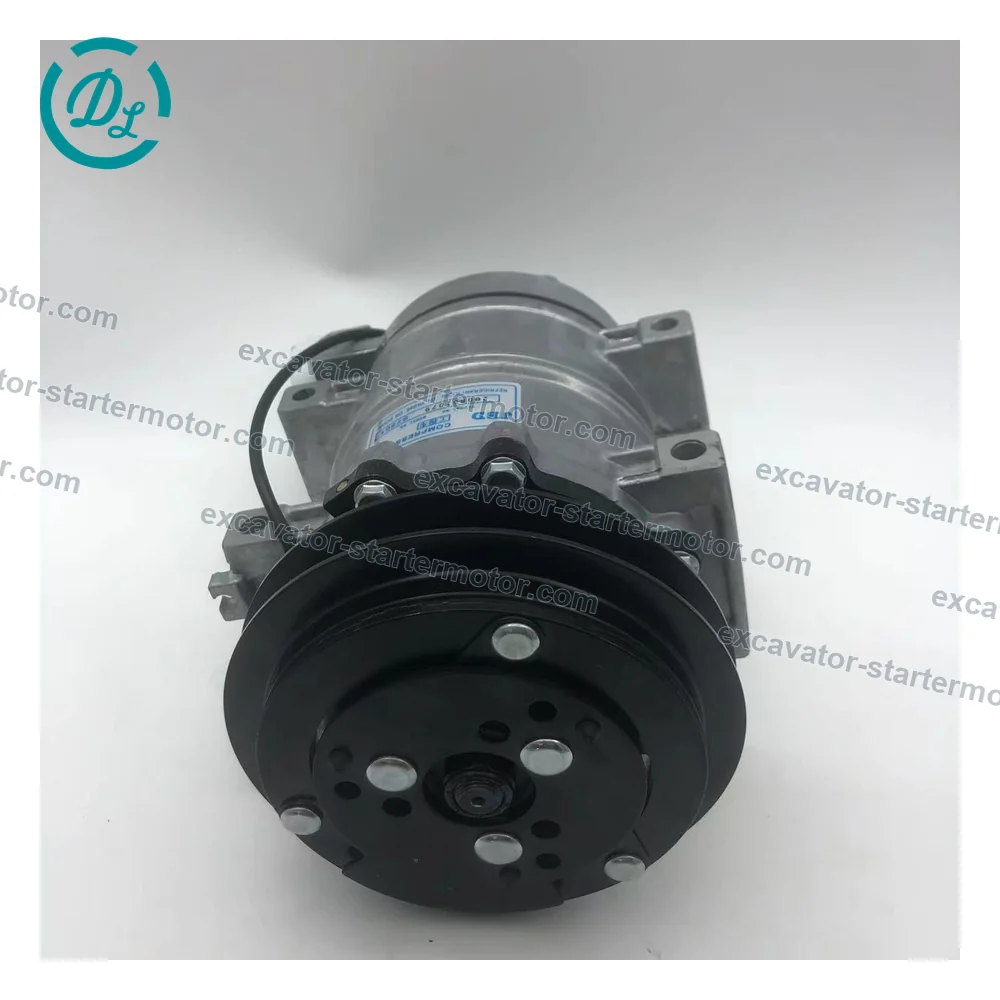

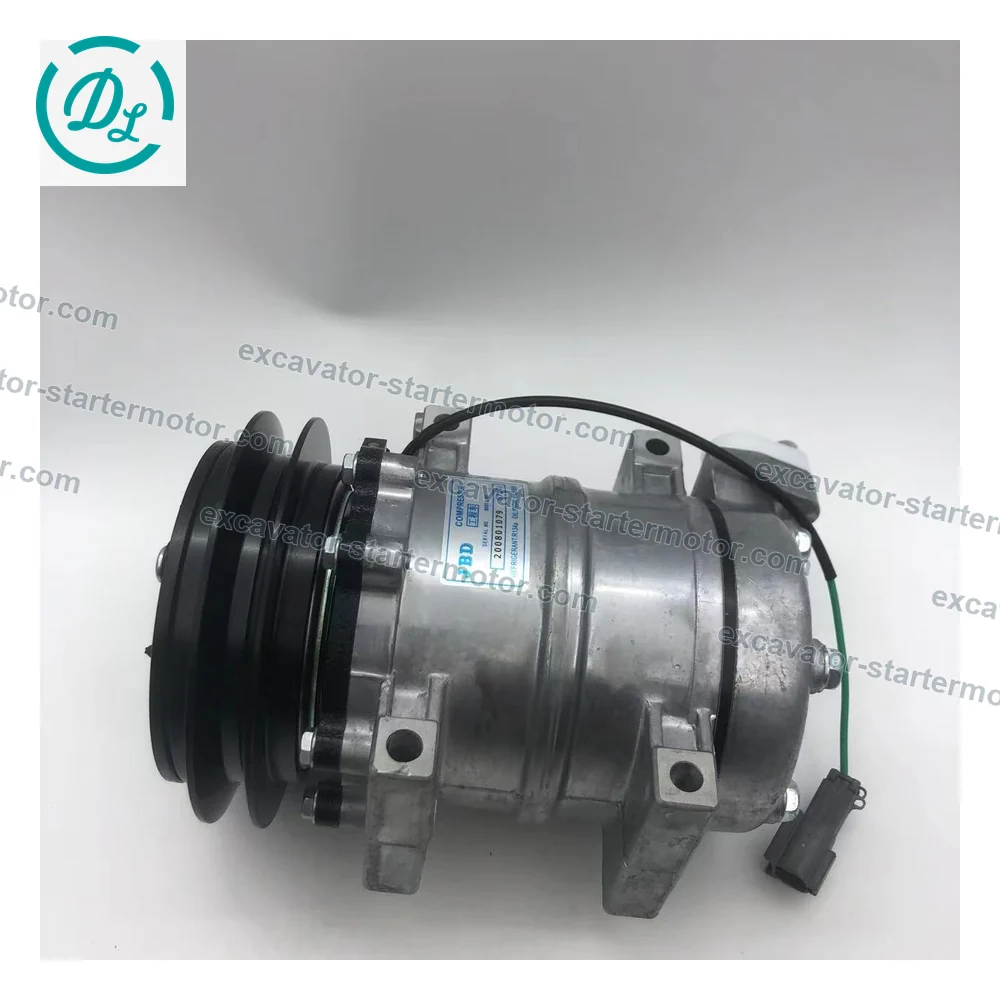

S7501 506211-6571 24V DKS15CH A/C Compressor for Hitachi EX120-5G EX200-5G, OEM/reference S7501, 24V DKS15CH Single-Groove A/C Compressor, product view 1

1 / 8

8 product photos · Swipe on mobile, or hover and select a thumbnail.

OEM / referenceS7501

Specification24V DKS15CH Single-Groove A/C Compressor

Catalog ID63898451

24V DKS15CH air-conditioning compressor identified by the S7501 model marking and catalog number 506211-6571. Cross-reference catalogs record a single-groove, 137 mm pulley configuration for selected Hitachi EX120-5G, EX200-5G and EX200LC-5 excavators. Confirm the 24V clutch, pulley groove and diameter, mounting ears, hose ports and connector before ordering.

Product Type: Air-Conditioning Compressor
Product Brand: EexcavaStart
Voltage: 24V cataloged
Compressor Type: DKS15CH
Pulley Grooves: 1
Pulley Diameter: 137 mm cataloged
Refrigerant: R134a shown on product label
Oil Type: PAG46 shown on product label

Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Part-number relationships

Relationship	Reference family	Number
Primary Compressor Model	Visible model marking on the owned unit	S7501
Manufacturer Cross Reference	Cataloged compressor number	506211-6571
Same-number Formatting Variant	Compact formatting of 506211-6571	5062116571
Cataloged Configuration Reference	Same DKS15CH 24V single-groove family	506011-6800
Cataloged Configuration Reference	Same DKS15CH 24V single-groove family	506011-7441
Cataloged Configuration Reference	Same DKS15CH 24V single-groove family	506211-5762

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number

S7501

Manufacturer number

506211-6571

Formatting alias

5062116571

Other documented relationship

506011-6800
506011-7441
506211-5762

Formatting aliases are the same number written differently. Related assemblies and remanufactured numbers are not presented as direct interchanges.

Product summary

24V DKS15CH Single-Groove A/C Compressor

Category: Excavator Air Conditioning Spare Parts
Catalog ID: 63898451
Photo views: 8

Before ordering

Confirm these details

Match the complete part number on the original component label.
Compare the front layout and visible configuration with the product photos.
Compare connector count, connector shape and keying before installation.
Confirm the exact machine model and serial range before ordering.

Machine fitment

Compatible model references

2 model references

Cataloged Hitachi models: EX120-5G / EX200-5G / EX200LC-5
Fitment limitation: Confirm S7501 or 506211-6571, 24V clutch, 1-groove 137 mm pulley, mount and hose ports

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about S7501

Which machines use S7501?

Recorded compatible model references include Cataloged Hitachi models: EX120-5G / EX200-5G / EX200LC-5, Fitment limitation: Confirm S7501 or 506211-6571, 24V clutch, 1-groove 137 mm pulley, mount and hose ports. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for S7501?

Manufacturer number: 506211-6571. Formatting aliases for the same number: 5062116571.

How do I confirm S7501 before ordering?

Match the complete part number on the original component label. Compare the front layout and visible configuration with the product photos. Compare connector count, connector shape and keying before installation. Send clear photos of the original unit and connector layout when requesting a quote.
