Starter Motors

M008T87171 24V 5.0kW 11T Starter for Mitsubishi 6D34 Kobelco SK200-6 SK250LC

Q: What numbers are documented for M008T87171?

Primary Manufacturer Part Number: M008T87171. Same-number Formatting Variant: M8T87171. Manufacturer Suffix Variant - Verify Configuration: M008T87171ZC. Manufacturer Suffix Variant - Verify Configuration: M8T87171ZC. Manufacturer Cross Reference: ME049303. Manufacturer Cross Reference: ME080740. Aftermarket Catalog Reference: S-80129. New Holland Reference: VAME049303. Relationship labels distinguish formatting aliases, direct interchanges, remanufactured references and related assemblies.

Q: How do I confirm M008T87171 before ordering?

Match the complete part number, compare the connector or mounting arrangement with the product photos, and confirm the machine or engine model and serial range. Send clear photos of the original unit when requesting a quote.

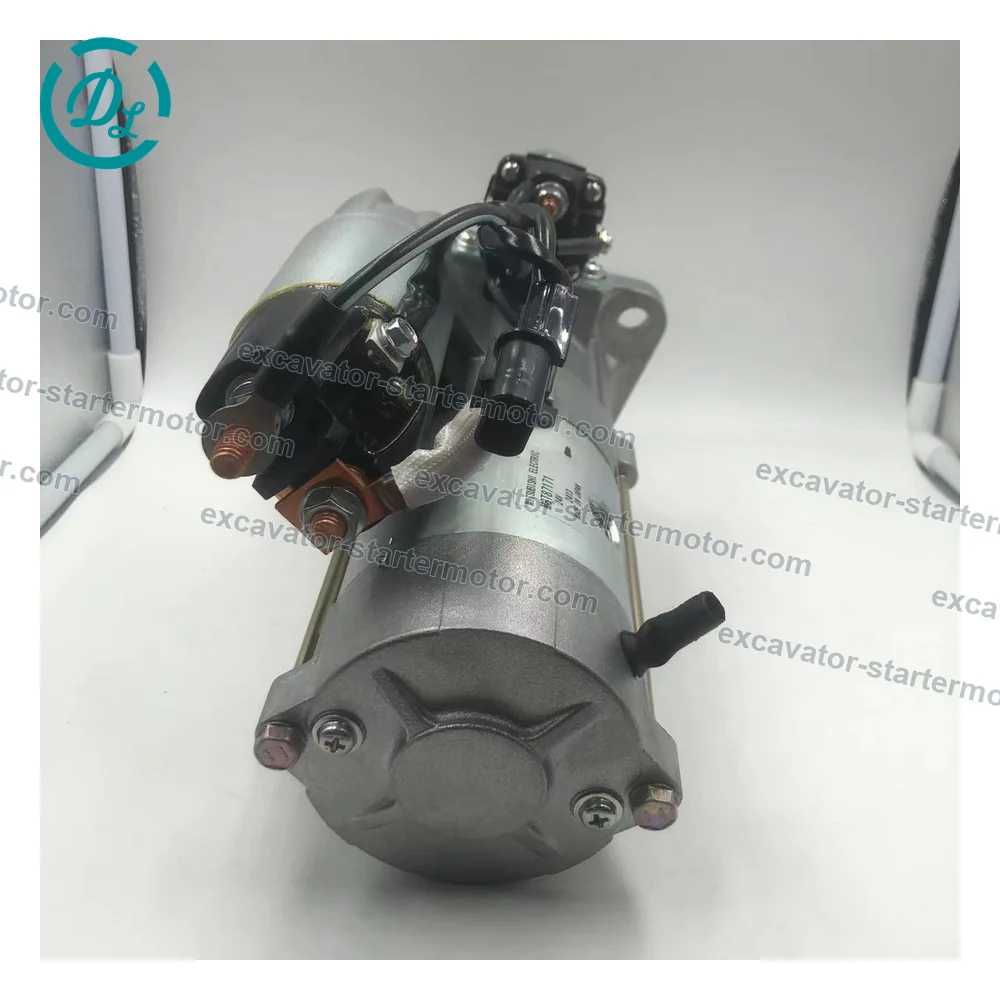

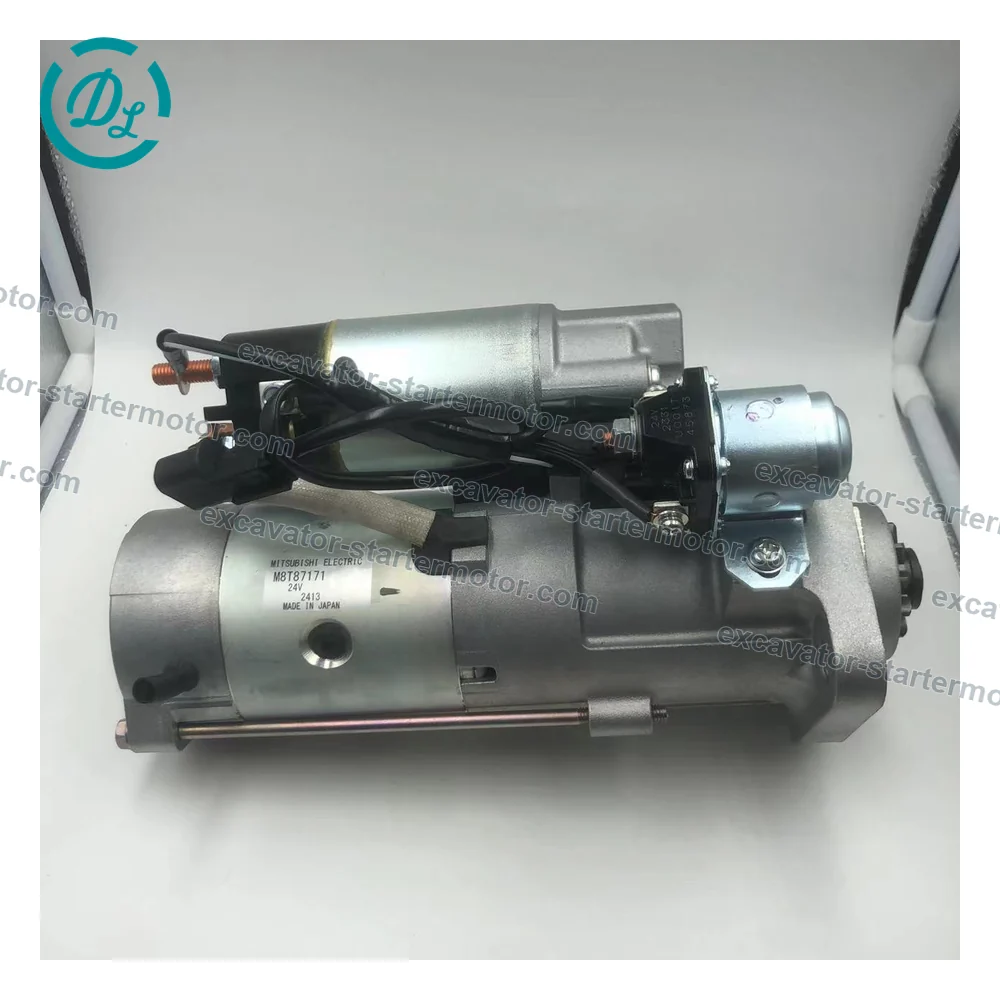

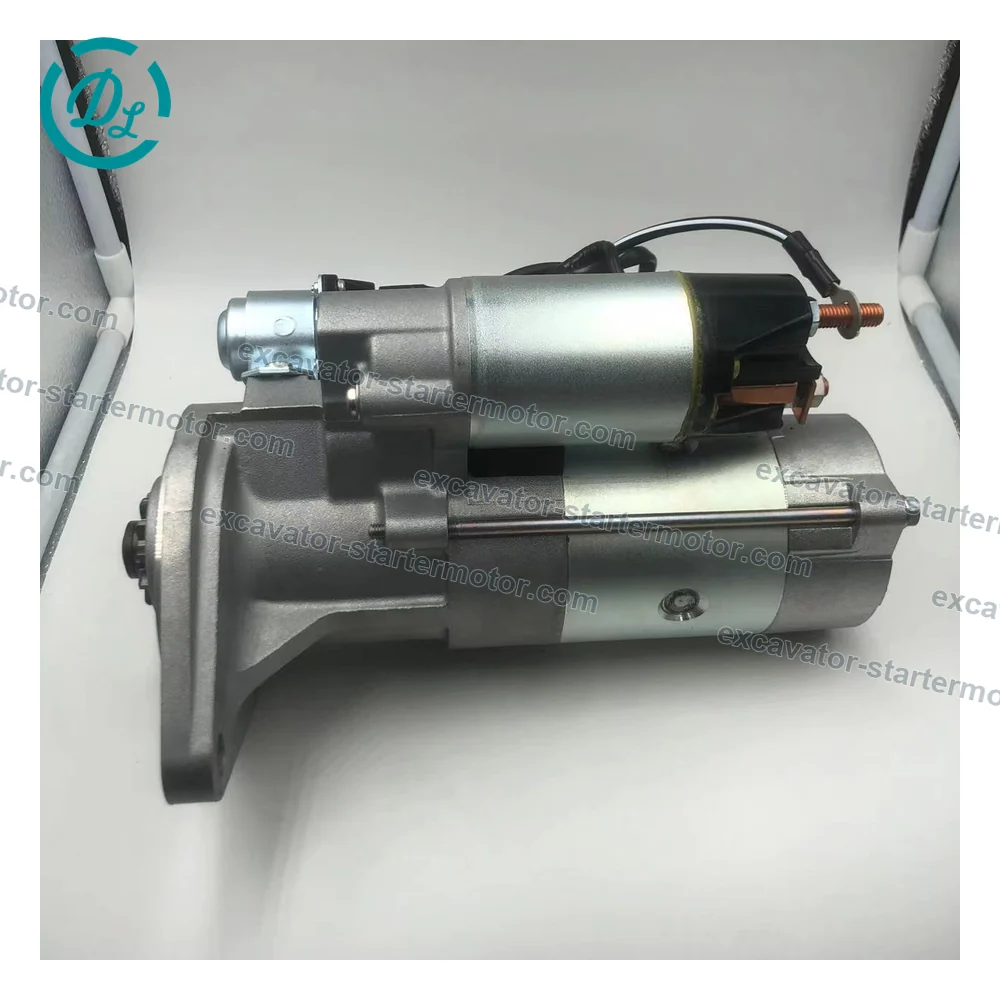

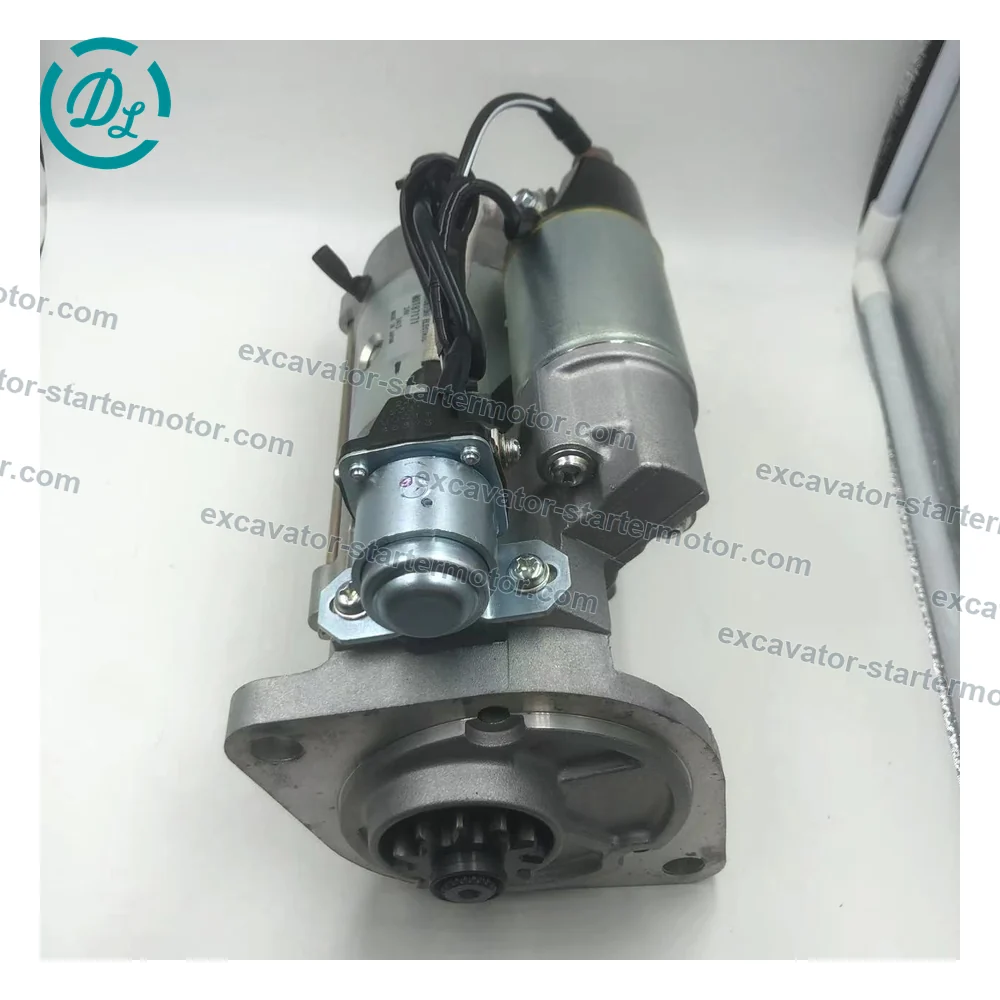

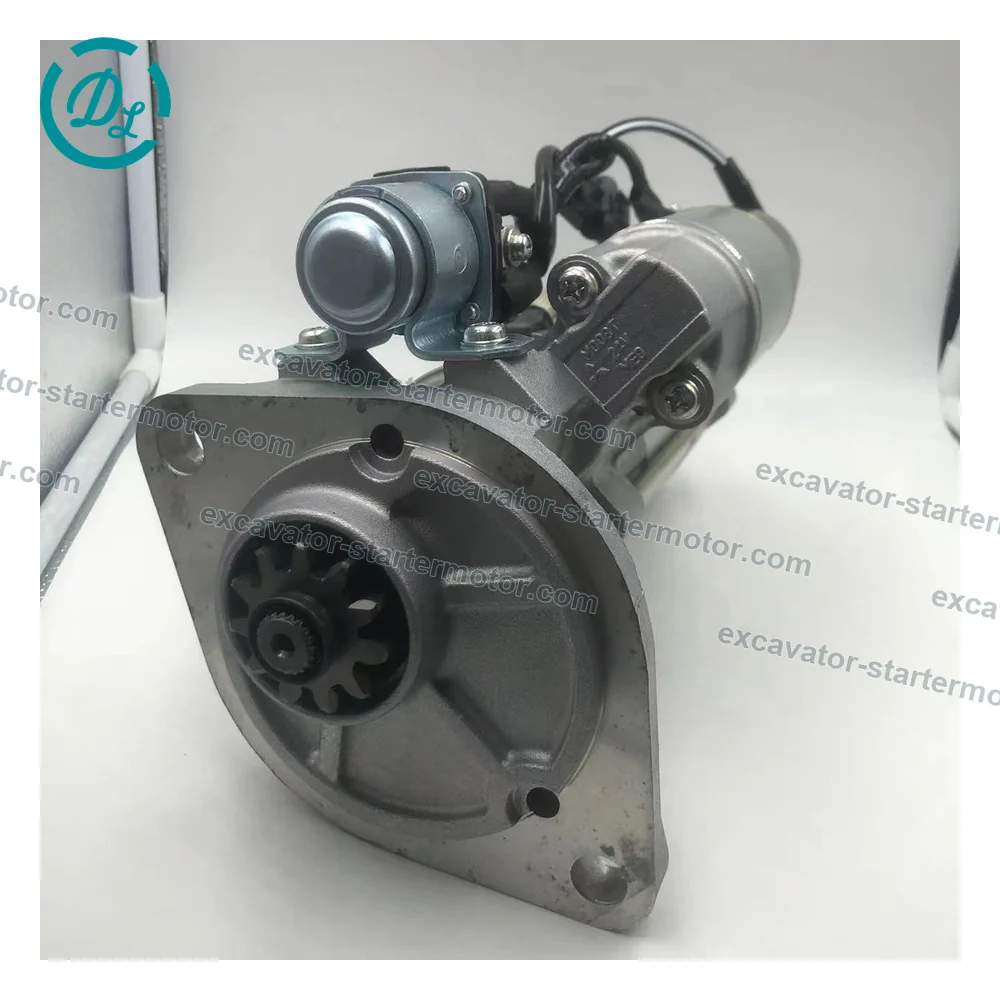

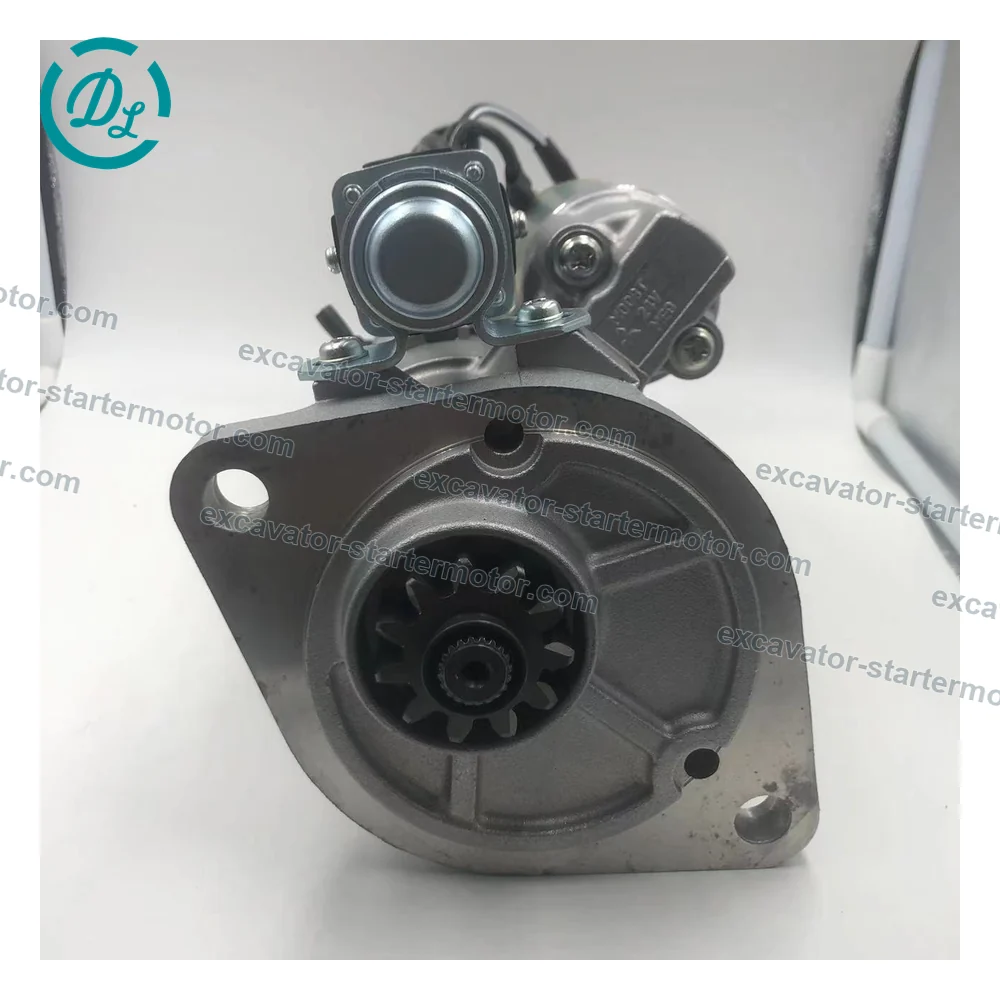

M008T87171 24V 5.0kW 11T Starter for Mitsubishi 6D34 Kobelco SK200-6 SK250LC, OEM/reference M008T87171, 24V 5.0kW 11T Heavy-Duty Starter Motor, product view 1

1 / 7

7 product photos · Swipe on mobile, or hover and select a thumbnail.

OEM / referenceM008T87171

Specification24V 5.0kW 11T Heavy-Duty Starter Motor

Catalog ID65447260

Product Type: Heavy-duty starter motor
Nominal Voltage: 24V
Rated Power: 5.0kW
Pinion Teeth: 11
Rotation: Clockwise
Starter Design: Planetary gear reduction (PLGR)
Mounting Holes: 2
Flange Diameter: 100 mm
B+ Terminal: M8
Condition: New replacement part

Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Quotation details: MOQ, availability, lead time, item condition (new or remanufactured) and warranty coverage must be confirmed in your quotation before ordering.

Part-number relationships

Relationship	Reference family	Number
Primary Manufacturer Part Number	Mitsubishi starter number	M008T87171
Same-number Formatting Variant	Compact Mitsubishi formatting; not a separate interchange	M8T87171
Manufacturer Suffix Variant - Verify Configuration	Cataloged Mitsubishi ZC suffix	M008T87171ZC
Manufacturer Suffix Variant - Verify Configuration	Compact Mitsubishi ZC suffix	M8T87171ZC
Manufacturer Cross Reference	Exact catalog family	ME049303
Manufacturer Cross Reference	Exact catalog family	ME080740
Aftermarket Catalog Reference	Dixie starter family reference	S-80129
New Holland Reference	Exact application-family reference	VAME049303

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number

M008T87171

Manufacturer number

M008T87171ZC
M8T87171ZC
ME049303
ME080740

Formatting alias

M8T87171

Other documented relationship

S-80129
VAME049303

Formatting aliases are the same number written differently. Cross-references require a specification and fitment check; they do not by themselves confirm direct interchangeability. Related assemblies and remanufactured numbers are separate relationship types.

Product summary

24V 5.0kW 11T Heavy-Duty Starter Motor

Category: Starter Motors
Catalog ID: 65447260
Photo views: 7

Before ordering

Confirm these details

Confirm voltage and power rating against the original starter nameplate.
Compare mounting-hole pattern, flange position and overall body orientation.
Confirm pinion tooth count and rotation where those values are specified.
Verify the engine model and machine serial range before ordering.

Machine fitment

Compatible model references

4 model references

Mitsubishi Engine: 6D34 / 6D34-TLE2A / 6D34-TLEG
Kobelco Excavators: SK200, SK200-6, SK200LC-6 and SK200LC-6ES
Kobelco Excavators: SK210LC, SK235SR/SRLC and SK250LC/LC-6E
New Holland Equipment: E160 and EH160

Fitment / evidence notes

Fitment Limitation: Confirm nameplate, 24V, 11 teeth, 100 mm flange, terminals and machine serial range

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about M008T87171

Which machines use M008T87171?

Recorded compatible model references include Mitsubishi Engine: 6D34 / 6D34-TLE2A / 6D34-TLEG, Kobelco Excavators: SK200, SK200-6, SK200LC-6 and SK200LC-6ES, Kobelco Excavators: SK210LC, SK235SR/SRLC and SK250LC/LC-6E, New Holland Equipment: E160 and EH160. Recorded fitment/evidence notes: Fitment Limitation: Confirm nameplate, 24V, 11 teeth, 100 mm flange, terminals and machine serial range. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for M008T87171?

Manufacturer number: M008T87171ZC, M8T87171ZC, ME049303, ME080740. Formatting aliases for the same number: M8T87171.

How do I confirm M008T87171 before ordering?

Confirm voltage and power rating against the original starter nameplate. Compare mounting-hole pattern, flange position and overall body orientation. Confirm pinion tooth count and rotation where those values are specified. Send clear photos of the original unit and connector layout when requesting a quote.
