Excavator Alternators

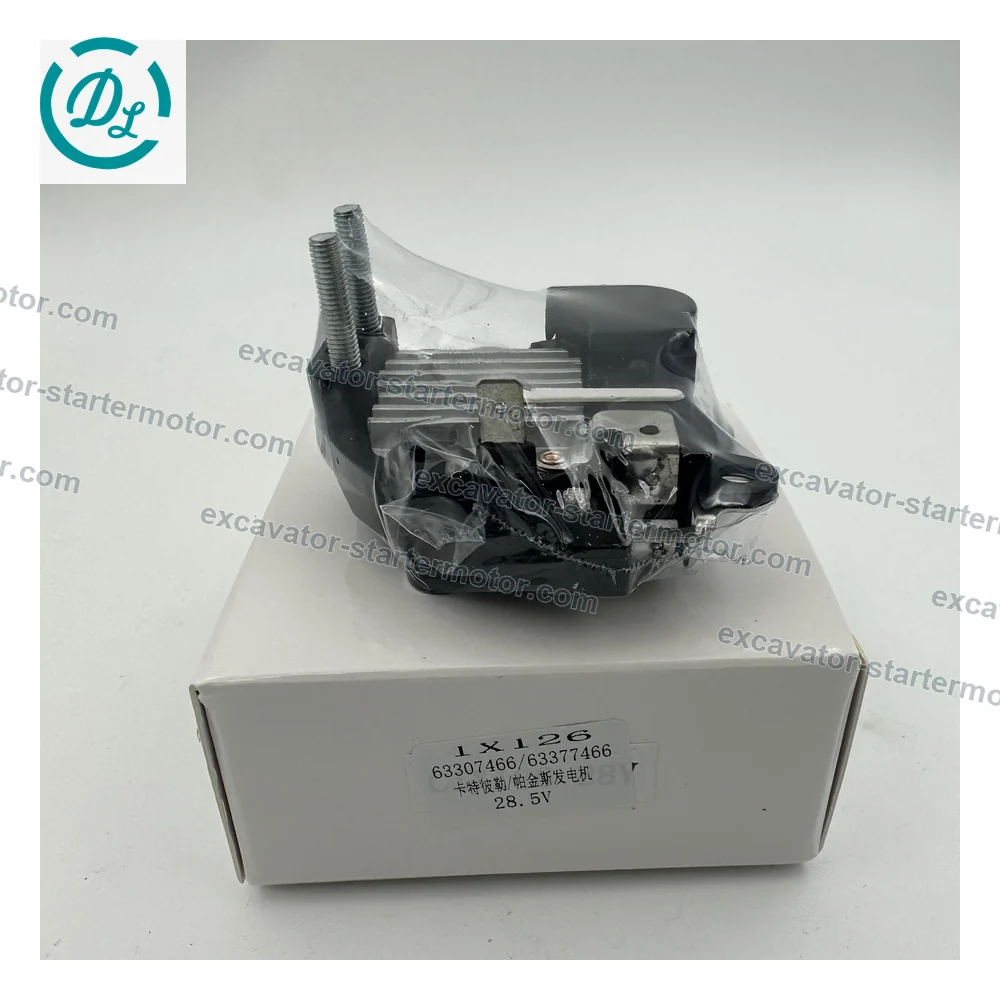

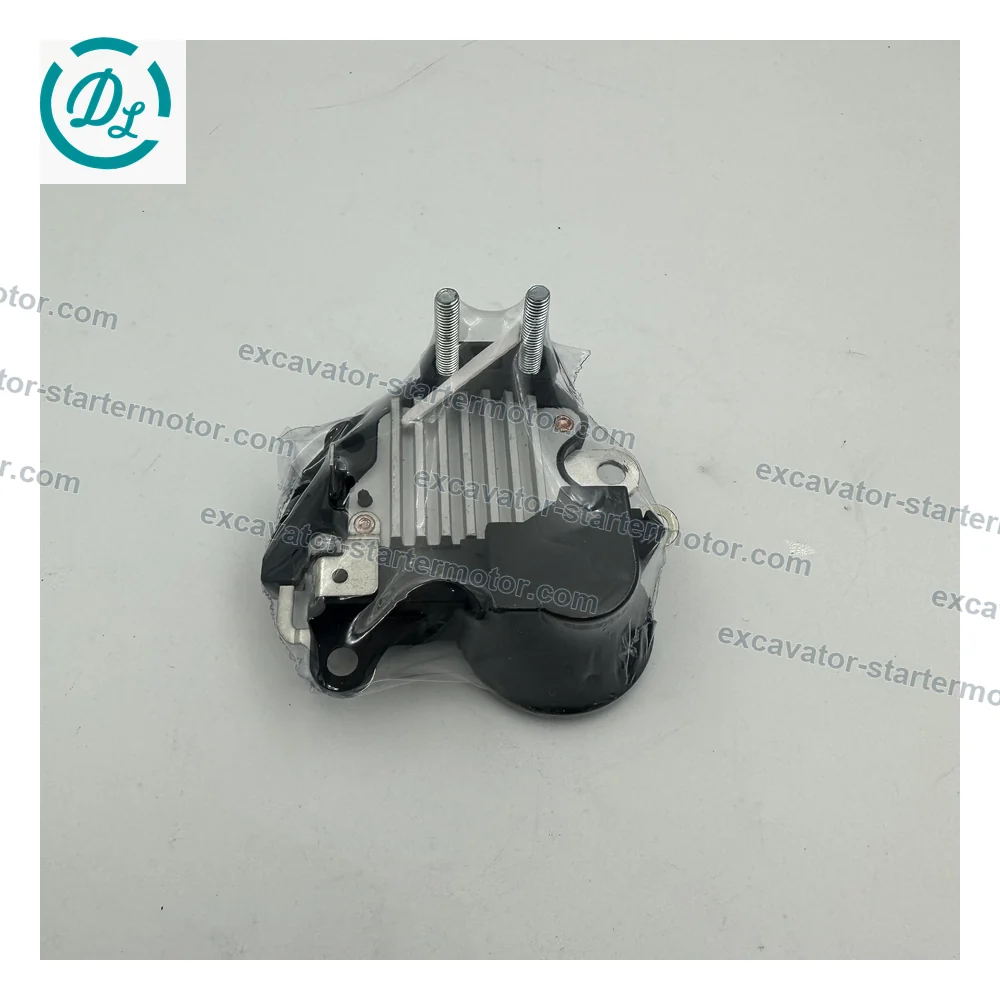

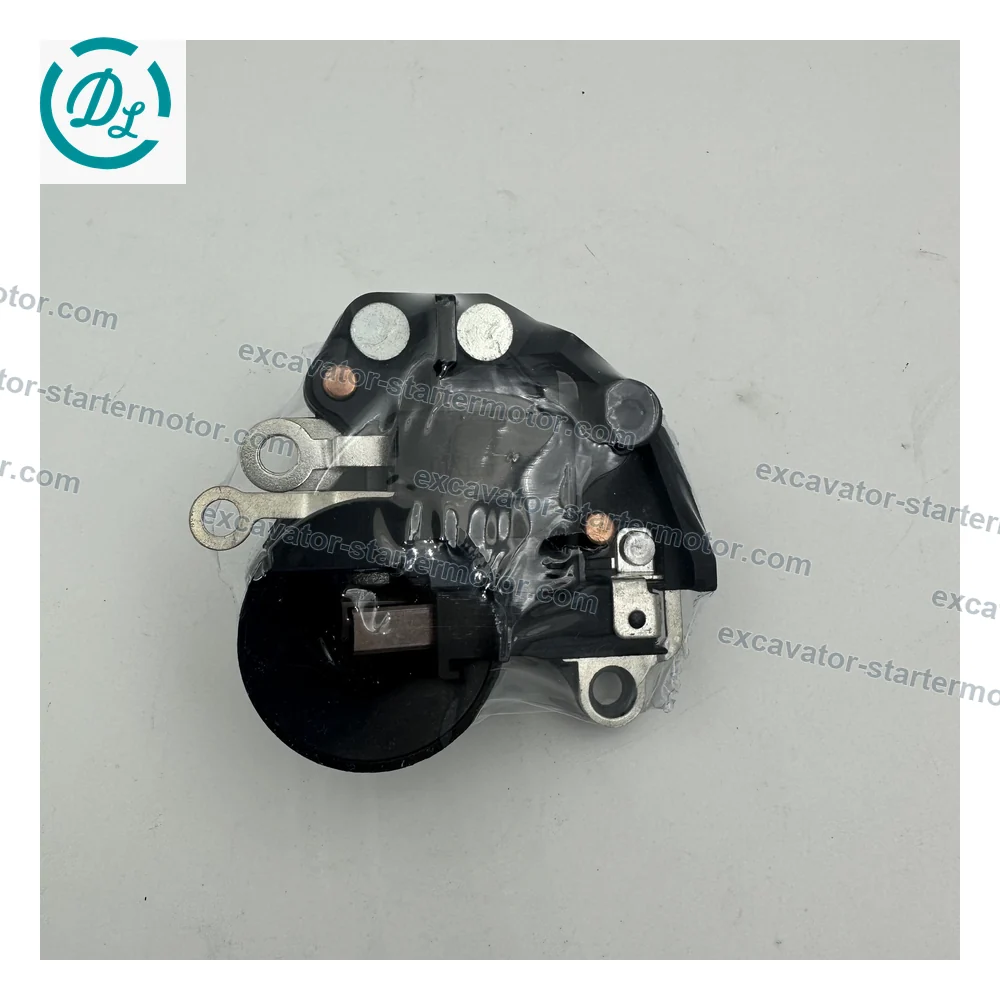

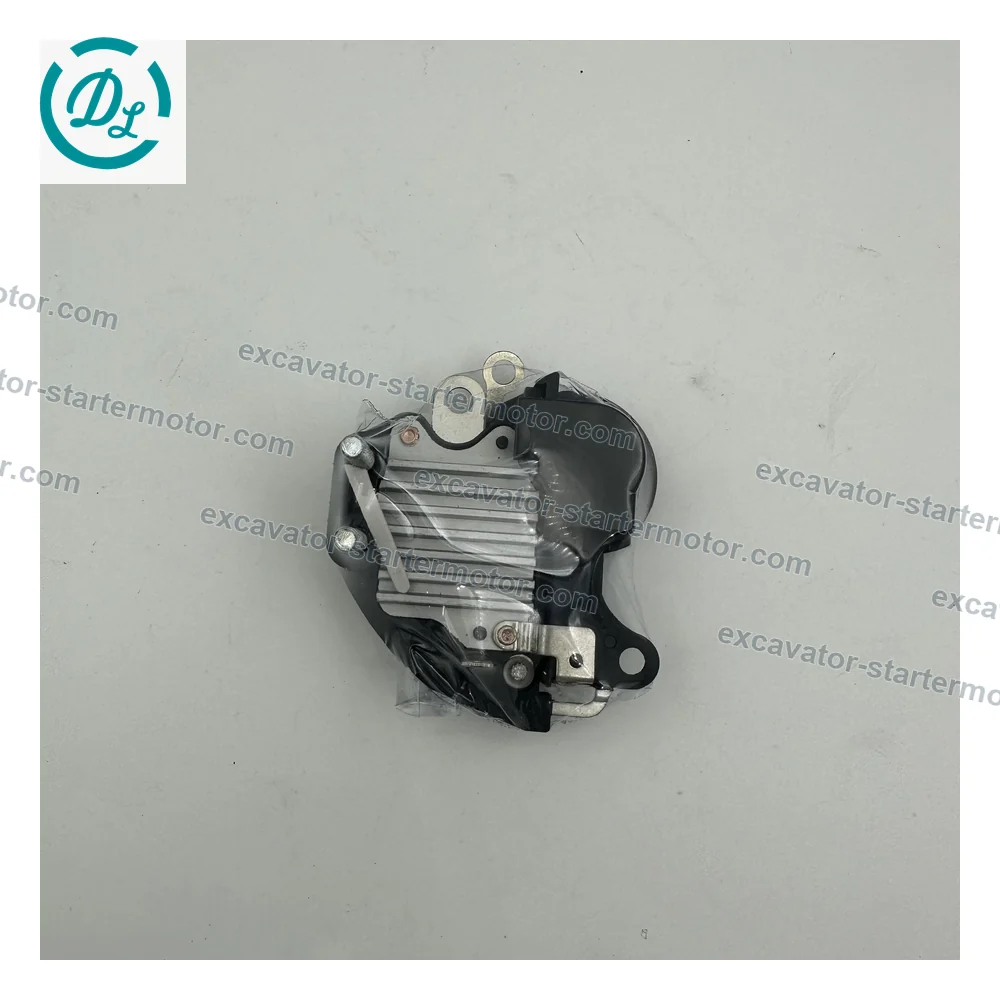

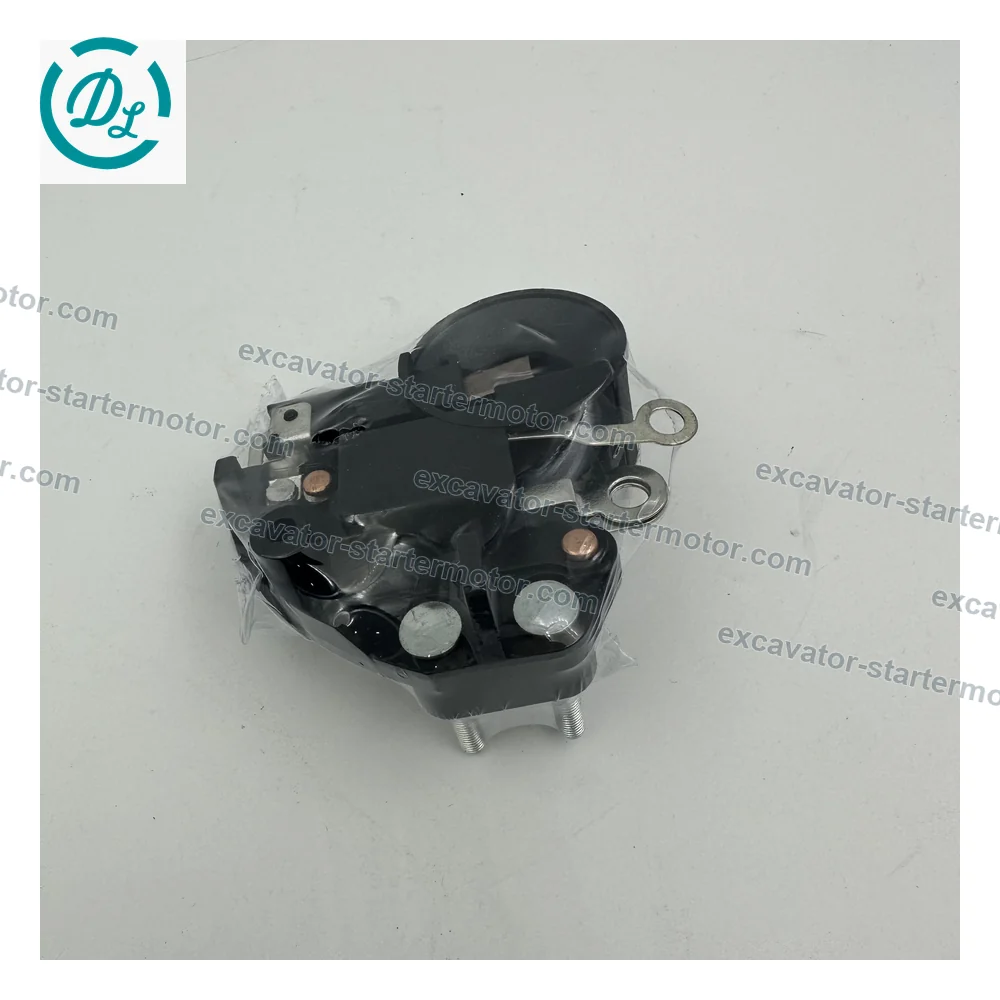

IX126 24V 28.5V Alternator Voltage Regulator for 63307466 63377466

Name: IX126 24V 28.5V Alternator Voltage Regulator for 63307466 63377466
Brand: EexcavaStart
SKU: IX126

OEM / referenceIX126

Specification24V Alternator Voltage Regulator, 28.5V Set Point

Catalog ID77259085

24-volt alternator voltage regulator with a 28.5-volt set point, identified by Transpo/WAI number IX126. Manufacturer and cross-reference records support Mobiletron VR-F154B and AS-PL ARE4018 and identify 63307466 and 63377466 as compatible alternator-unit numbers. This is a regulator component, not a complete alternator.

Fitment status: Verified · Checked 2026-07-28

Product Type: Alternator Voltage Regulator
Product Brand: EexcavaStart
Electrical System: 24V
Voltage Set Point: 28.5V
Circuit: A-circuit
Signal Terminals: L-W
Protection: Short-circuit protection
Mounting: Two-bolt, 68 mm hole spacing

Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Part-number relationships

Relationship	Reference family	Number
Primary Regulator Part Number	Transpo/WAI regulator number	IX126
Manufacturer Cross-Reference	Mobiletron voltage regulator	VR-F154B
Direct Regulator Cross-Reference	AS-PL regulator number	ARE4018
Fits Alternator Number	Marelli alternator unit; not a regulator interchange	63307466
Fits Alternator Number	Marelli alternator unit; not a regulator interchange	63377466
Fits Alternator Number	Denso alternator unit; not a regulator interchange	102211-8140
Fits Alternator Number	Denso alternator unit; not a regulator interchange	102211-8150

Evidence record

Source: Exact-reference evidence retained for internal audit
Evidence grade: multi-source-supported
Checked: 2026-07-28

Source URLs, catalog files and local evidence paths are stored in the protected product audit record and are not public outbound links.

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number

IX126

Manufacturer number

VR-F154B

Direct interchange

ARE4018

Other documented relationship

63307466
63377466
102211-8140
102211-8150

Formatting aliases are the same number written differently. Related assemblies and remanufactured numbers are not presented as direct interchanges.

Product summary

24V Alternator Voltage Regulator, 28.5V Set Point

Category: Excavator Alternators
Catalog ID: 77259085
Photo views: 6

Before ordering

Confirm these details

Confirm voltage and rated amperage against the original alternator label.
Compare mounting ears, pulley type and pulley-groove count.
Check plug shape, terminal position and regulator connection.
Verify the engine model and machine serial range before ordering.

Machine fitment

Compatible model references

7 model references

Alternator family: Marelli 63307465 / 63307466
Alternator family: Marelli 63377465 / 63377466
Alternator family: Denso 102211-8140 / 102211-8150
Engine example: Caterpillar 3056E
Machine example: Caterpillar M322C
Machine example: Terex SKL873
Fitment limitation: Confirm IX126 or VR-F154B, 24V system, 28.5V set point, L-W terminals and mounting footprint

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about IX126

Which machines use IX126?

Recorded compatible model references include Alternator family: Marelli 63307465 / 63307466, Alternator family: Marelli 63377465 / 63377466, Alternator family: Denso 102211-8140 / 102211-8150, Engine example: Caterpillar 3056E, Machine example: Caterpillar M322C, Machine example: Terex SKL873, Fitment limitation: Confirm IX126 or VR-F154B, 24V system, 28.5V set point, L-W terminals and mounting footprint. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for IX126?

Documented direct interchanges: ARE4018. Manufacturer number: VR-F154B.

How do I confirm IX126 before ordering?

Confirm voltage and rated amperage against the original alternator label. Compare mounting ears, pulley type and pulley-groove count. Check plug shape, terminal position and regulator connection. Send clear photos of the original unit and connector layout when requesting a quote.
