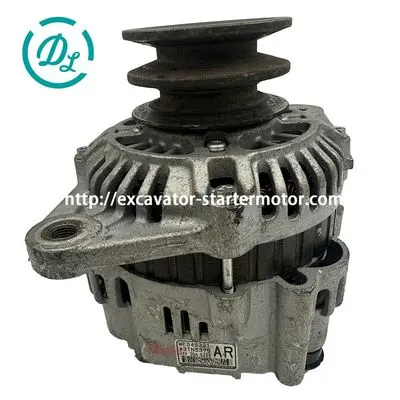

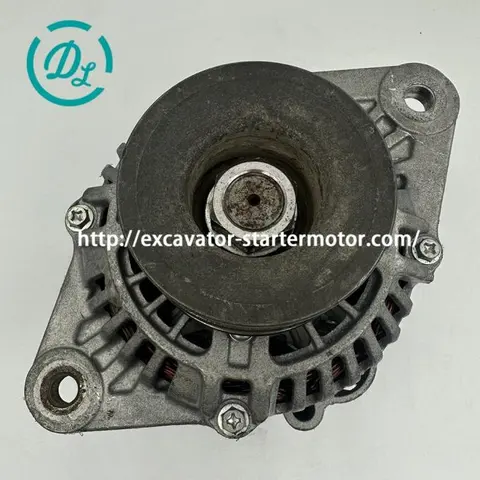

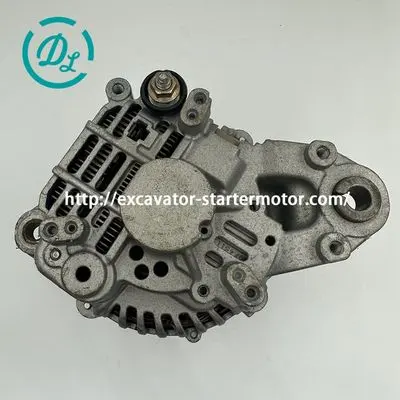

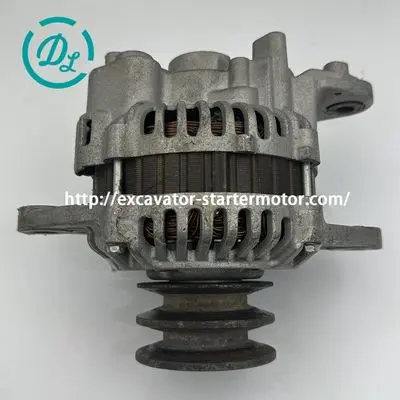

ME049321 24V 35A Alternator for Kobelco ED190 ED190LC-6E

Q: What numbers are documented for ME049321?

Primary Part Number: ME049321. Catalog Cross-Reference - Verify Configuration: 12563N. Catalog Cross-Reference - Verify Configuration: 112091. Catalog Cross-Reference - Verify Configuration: 12563. Catalog Cross-Reference - Verify Configuration: 143-36204. Catalog Cross-Reference - Verify Configuration: 203-5269. Catalog Cross-Reference - Verify Configuration: 276.502.035. Catalog Cross-Reference - Verify Configuration: 276.502.035.130. Catalog Cross-Reference - Verify Configuration: 276.502.035.138. Catalog Cross-Reference - Verify Configuration: 276.502.035.370. Catalog Cross-Reference - Verify Configuration: 400-48173. Catalog Cross-Reference - Verify Configuration: 90-27-3285. Relationship labels distinguish formatting aliases, direct interchanges, remanufactured references and related assemblies.

Q: How do I confirm ME049321 before ordering?

Match the complete part number, compare the connector or mounting arrangement with the product photos, and confirm the machine or engine model and serial range. Send clear photos of the original unit when requesting a quote.

Product video

1 / 6

1 product video · 5 product photos · Swipe on mobile, or hover and select a thumbnail.

OEM / referenceME049321

SpecificationAlternator

Catalog ID53243541

Product Type: Alternator
Product Brand: EexcavaStart
Technical Specification: 35 Amp/24 Volt, CW, 2-Groove Pulley
Design: IR/IF
Voltage: 24
Amperage: 35
Rotation: CW
Plug Clock: 04:00 Plug Clock
Plug Code: 192
Pulley Class: V2
Dist Btwn Mtg Ft Mm H: 76
De Ft To Pulley 1st Grv Mm K: 43.7
De To Rotor Shft End Mm L: 54.7
Mounting Type: DUAL FOOT MOUNT
Dist Btwn Mtg Ear Mm: 81.5
Split Mtg Ear Thk Mm: 76
Polarity: Positive
Brushless Design: No
One Wire Capable: No
Cooling Method: Alternator cooling via internal fan
Condition: New replacement part
Item Condition: Aftermarket Part
Unit Type: Alternator
Dimension: Replacement Unit: Mtg. Ear 1 Hole: M12-1.25 Thread Mtg. Ear 2 Hole: 12.7mm Unthr Mtg. Ear 3 Hole: 12.5mm Unthr Mtg. Ear 1 Thick: 13.8mm Mtg. Ear 2 Thick: 14.1mm Mtg. Ear 3 Thick: 18.5mm B+ Term: M8-1.25 IG Term: Spade L Term: Spade
Regulator: IR
Fan Type: IF

Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Quotation details: MOQ, availability, lead time, item condition (new or remanufactured) and warranty coverage must be confirmed in your quotation before ordering.

Part-number relationships

Relationship	Reference family	Number
Primary Part Number	Source catalog	ME049321
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	12563N
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	112091
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	12563
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	143-36204
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	203-5269
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	276.502.035
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	276.502.035.130
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	276.502.035.138
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	276.502.035.370
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	400-48173
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	90-27-3285
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	A-80421
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	A003TN5379
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	A003TN5379ZC
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	A3TN5379
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	A3TN5379ZC
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	A5222
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	AMT0243
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	AVF-12563
Cross-reference (fitment check required)	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	MEO49321
Cross-reference (fitment check required)	ARROWHEAD	AMT0243
Cross-reference (fitment check required)	ARROWHEAD	A3TN5379
Cross-reference (fitment check required)	J&N Electrical Products	400-48173
Cross-reference (fitment check required)	LESTER	12563
Cross-reference (fitment check required)	MITSUBISHI	A3TN5379
Primary Manufacturer Part Number	MITSUBISHI INDUSTRIAL	ME049321

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number

ME049321

Cross-reference (fitment check required)

12563N
112091
12563
143-36204
203-5269
276.502.035
276.502.035.130
276.502.035.138
276.502.035.370
400-48173
90-27-3285
A-80421
A003TN5379
A003TN5379ZC
A3TN5379
A3TN5379ZC
A5222
AMT0243
AVF-12563
MEO49321

Formatting aliases are the same number written differently. Cross-references require a specification and fitment check; they do not by themselves confirm direct interchangeability. Related assemblies and remanufactured numbers are separate relationship types.

Product summary

Alternator

Category: Alternators
Catalog ID: 53243541
Photo views: 5

Before ordering

Confirm these details

Confirm voltage and rated amperage against the original alternator label.
Compare mounting ears, pulley type and pulley-groove count.
Check plug shape, terminal position and regulator connection.
Verify the engine model and machine serial range before ordering.

Machine fitment

Compatible model references

31 model references

Recorded application: Make: Kobelco · Model: ED190 · Year: 2002-2008 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: Kobelco · Model: ED190LC-6E · Year: 2005-2007 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: Kobelco · Model: ED190LC · Year: 2002-2008 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK160LC-6E · Year: 2001-2002 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK160LC · Year: 2001-2014 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK200-6 · Year: 1999-2006 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK200LC-3 · Year: 1999-2006 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK200LC-6 · Year: 1999-2006 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK200LC-6ES · Year: 1999-2006 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK200LC · Year: 1999-2006 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK210LC-6E · Year: 2000-2016 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK210LC · Year: 2000-2016 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK235SR-1E · Year: 2009-2013 · Engine: L4 5.1L 313cid Hino
Recorded application: Make: Kobelco · Model: SK235SR-1ES · Year: 2001-2007 · Engine: L4 5.1L 313cid Hino
Recorded application: Make: Kobelco · Model: SK235SRLC-1E · Year: 2001-2007 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK235SRLC-1ES · Year: 2001-2007 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK235SRLC · Year: 1999-2013 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK235SRLC · Year: 2004-2006 · Engine: L6 5.9L 359cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK235SRNLC-1E · Year: 1999-2013 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK250LC-6E · Year: 2001-2003 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK250LC · Year: 1999-2006 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK290LC-6E · Year: 2000-2008 · Engine: L6 7.5L 460cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK290LC · Year: 2000-2008 · Engine: L6 7.5L 460cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK330LC-6E · Year: 2000-2008 · Engine: L6 7.5L 460cid Mitsubishi
Recorded application: Make: Kobelco · Model: SK330LC · Year: 2000-2008 · Engine: L6 7.5L 460cid Mitsubishi
Recorded application: Make: New Holland · Model: E160 · Year: 2006-2007 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: New Holland · Model: E215 · Year: 2006-2007 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: New Holland · Model: E235SR · Year: 2005-2008 · Engine: L6 5.9L 359cid Mitsubishi
Recorded application: Make: New Holland · Model: E235SRLC · Year: 2005-2008 · Engine: L6 5.9L 359cid Mitsubishi
Recorded application: Make: New Holland · Model: EH160 · Year: 2003-2005 · Engine: L4 3.9L 240cid Mitsubishi
Recorded application: Make: New Holland · Model: EH215 · Year: 2004-2006 · Engine: L6 5.9L 359cid Mitsubishi

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about ME049321

Which machines use ME049321?

Recorded compatible model references include Recorded application: Make: Kobelco · Model: ED190 · Year: 2002-2008 · Engine: L4 3.9L 240cid Mitsubishi, Recorded application: Make: Kobelco · Model: ED190LC-6E · Year: 2005-2007 · Engine: L4 3.9L 240cid Mitsubishi, Recorded application: Make: Kobelco · Model: ED190LC · Year: 2002-2008 · Engine: L4 3.9L 240cid Mitsubishi, Recorded application: Make: Kobelco · Model: SK160LC-6E · Year: 2001-2002 · Engine: L4 3.9L 240cid Mitsubishi, Recorded application: Make: Kobelco · Model: SK160LC · Year: 2001-2014 · Engine: L4 3.9L 240cid Mitsubishi, Recorded application: Make: Kobelco · Model: SK200-6 · Year: 1999-2006 · Engine: L4 3.9L 240cid Mitsubishi, Recorded application: Make: Kobelco · Model: SK200LC-3 · Year: 1999-2006 · Engine: L4 3.9L 240cid Mitsubishi, Recorded application: Make: Kobelco · Model: SK200LC-6 · Year: 1999-2006 · Engine: L4 3.9L 240cid Mitsubishi and 23 additional models shown on this page. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for ME049321?

Cross-references are listed in the relationship table above. Compare specifications and the original unit before treating a reference as interchangeable.

How do I confirm ME049321 before ordering?

Confirm voltage and rated amperage against the original alternator label. Compare mounting ears, pulley type and pulley-groove count. Check plug shape, terminal position and regulator connection. Send clear photos of the original unit and connector layout when requesting a quote.
