Excavator Alternators

0R-9700 12V 55A Alternator for CAT 228 236

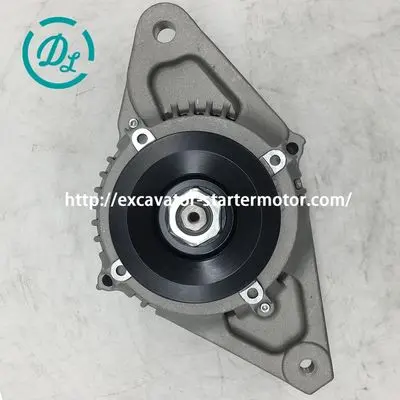

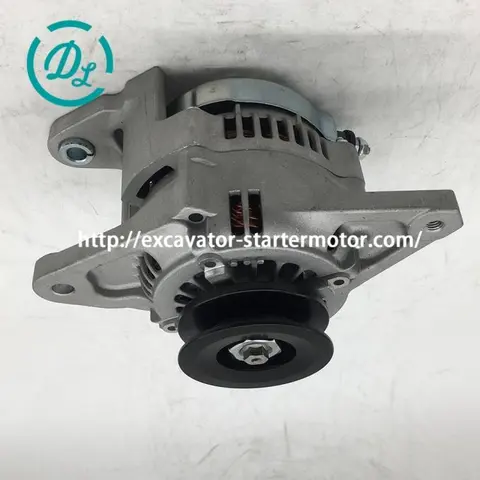

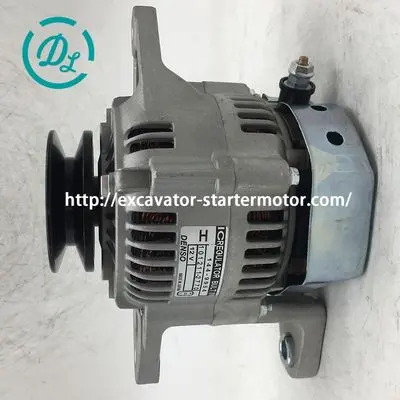

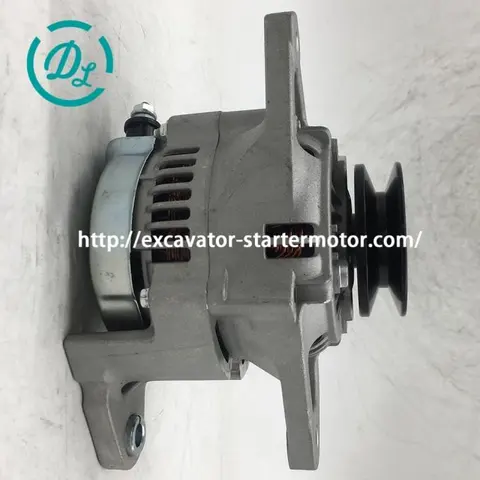

0R-9700 12V 55A Alternator for CAT 228 236, OEM/reference 0R-9700, Alternator, product view 1
1 / 6

6 product photos · Swipe on mobile, or hover and select a thumbnail.

OEM / reference0R-9700
SpecificationAlternator
Catalog ID53633935

Alternator identified by primary reference 0R-9700. Catalog-confirmed configuration: 12V, 55A. The cited technical sources record 8 application references. Confirm the complete number, connector or mounting arrangement, and machine serial range before ordering.

Product Type
Alternator
Product Brand
EexcavaStart
Voltage
12V 55A
Technical Specification
55 Amp/12 Volt, CW, 1-Groove Pulley
Design
IR/IF
Voltage
12
Amperage
55
Rotation
CW
Plug Clock
11:00 Plug Clock
Plug Code
328
Pulley Class
V1
Pulley Note
69.5MM OD
Ac Tap Y/N
NO
Brushless
YES
Dist Btwn Mtg Ft Mm H
75
De Ft To Pulley 1st Grv Mm K
32
De To Rotor Shft End Mm L
88/88
Mounting Type
Two Mounting Feet/One Mounting Ear
Pulley Groove Od
69.5
Split Mtg Ear Thk Mm
75
Polarity
B+
One Wire Capable
No
Condition
New replacement part
Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Part-number relationships

RelationshipReference familyNumber
Primary Part NumberSource catalog0R-9700
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration12470N
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration1-3424-01ND
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration101211-2770
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration114043
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration12470
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration12470R
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration144-9954
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration146-06108
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration290-460
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration400-52101
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration553190RI
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration612470
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration645.504.055.050
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration90-29-5395
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration90-29-5395N
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configurationA-8730
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configurationA6647S
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configurationALT30166
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configurationAND0437
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configurationCAL40151AS
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configurationCLA10205
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configurationDRA0336
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configurationJFZ1513
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configurationVA-12470
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configurationX612470

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number
  • 0R-9700
Other documented relationship
  • 12470N
  • 1-3424-01ND
  • 101211-2770
  • 114043
  • 12470
  • 12470R
  • 144-9954
  • 146-06108
  • 290-460
  • 400-52101
  • 553190RI
  • 612470
  • 645.504.055.050
  • 90-29-5395
  • 90-29-5395N
  • A-8730
  • A6647S
  • ALT30166
  • AND0437
  • CAL40151AS
  • CLA10205
  • DRA0336
  • JFZ1513
  • VA-12470
  • X612470

Formatting aliases are the same number written differently. Related assemblies and remanufactured numbers are not presented as direct interchanges.

Product summary

Alternator

Category
Excavator Alternators
Catalog ID
53633935
Photo views
6

Before ordering

Confirm these details

  • Confirm voltage and rated amperage against the original alternator label.
  • Compare mounting ears, pulley type and pulley-groove count.
  • Check plug shape, terminal position and regulator connection.
  • Verify the engine model and machine serial range before ordering.

Machine fitment

Compatible model references

8 model references

  • Recorded application: Make: Caterpillar Ag. & Ind. · Model: 228 · Year: 1999-2003 · Engine: Cat. 3024
  • Recorded application: Make: Caterpillar Ag. & Ind. · Model: 236 · Year: 1999-2003 · Engine: Cat. 3034
  • Recorded application: Make: Caterpillar Ag. & Ind. · Model: 246 · Year: 1999-2004 · Engine: Cat. 3034
  • Recorded application: Make: Caterpillar Ag. & Ind. · Model: 248 · Year: 1999-2004 · Engine: Cat. 3034
  • Recorded application: Make: Caterpillar Ag. & Ind. · Model: 252 · Year: 1999-2004 · Engine: Cat. 3034
  • Recorded application: Make: Caterpillar Ag. & Ind. · Model: 262 · Year: 1999-2003 · Engine: Cat. 3034
  • Recorded application: Make: Caterpillar Ag. & Ind. · Model: 902 · Year: 1998-2005 · Engine: Cat. 3024C
  • Recorded application: Make: Caterpillar Ag. & Ind. · Model: 906 · Year: 1998-2008 · Engine: Cat. 3034

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about 0R-9700

Which machines use 0R-9700?

Recorded compatible model references include Recorded application: Make: Caterpillar Ag. & Ind. · Model: 228 · Year: 1999-2003 · Engine: Cat. 3024, Recorded application: Make: Caterpillar Ag. & Ind. · Model: 236 · Year: 1999-2003 · Engine: Cat. 3034, Recorded application: Make: Caterpillar Ag. & Ind. · Model: 246 · Year: 1999-2004 · Engine: Cat. 3034, Recorded application: Make: Caterpillar Ag. & Ind. · Model: 248 · Year: 1999-2004 · Engine: Cat. 3034, Recorded application: Make: Caterpillar Ag. & Ind. · Model: 252 · Year: 1999-2004 · Engine: Cat. 3034, Recorded application: Make: Caterpillar Ag. & Ind. · Model: 262 · Year: 1999-2003 · Engine: Cat. 3034, Recorded application: Make: Caterpillar Ag. & Ind. · Model: 902 · Year: 1998-2005 · Engine: Cat. 3024C, Recorded application: Make: Caterpillar Ag. & Ind. · Model: 906 · Year: 1998-2008 · Engine: Cat. 3034. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for 0R-9700?

No alternate number is listed for 0R-9700. Send the original nameplate for an alternate-number check.

How do I confirm 0R-9700 before ordering?

Confirm voltage and rated amperage against the original alternator label. Compare mounting ears, pulley type and pulley-groove count. Check plug shape, terminal position and regulator connection. Send clear photos of the original unit and connector layout when requesting a quote.
