344-7392 500 Hz PWM Pressure Sensor for Cat 312D2, 320D2, 323 and 336

Q: What numbers are documented for 344-7392?

Primary OE Number: 344-7392. Formatted Alias: 3447392. Relationship labels distinguish formatting aliases, direct interchanges, remanufactured references and related assemblies.

Q: How do I confirm 344-7392 before ordering?

Match the complete part number, compare the connector or mounting arrangement with the product photos, and confirm the machine or engine model and serial range. Send clear photos of the original unit when requesting a quote.

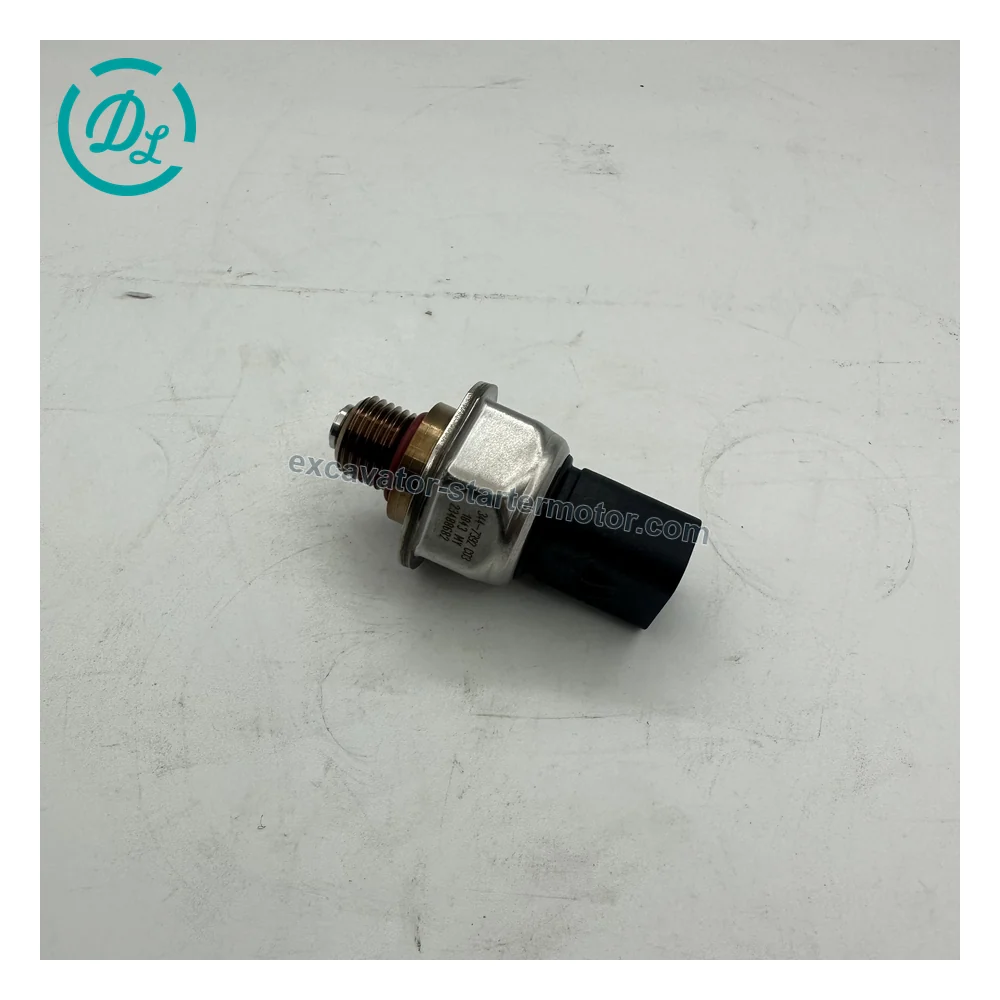

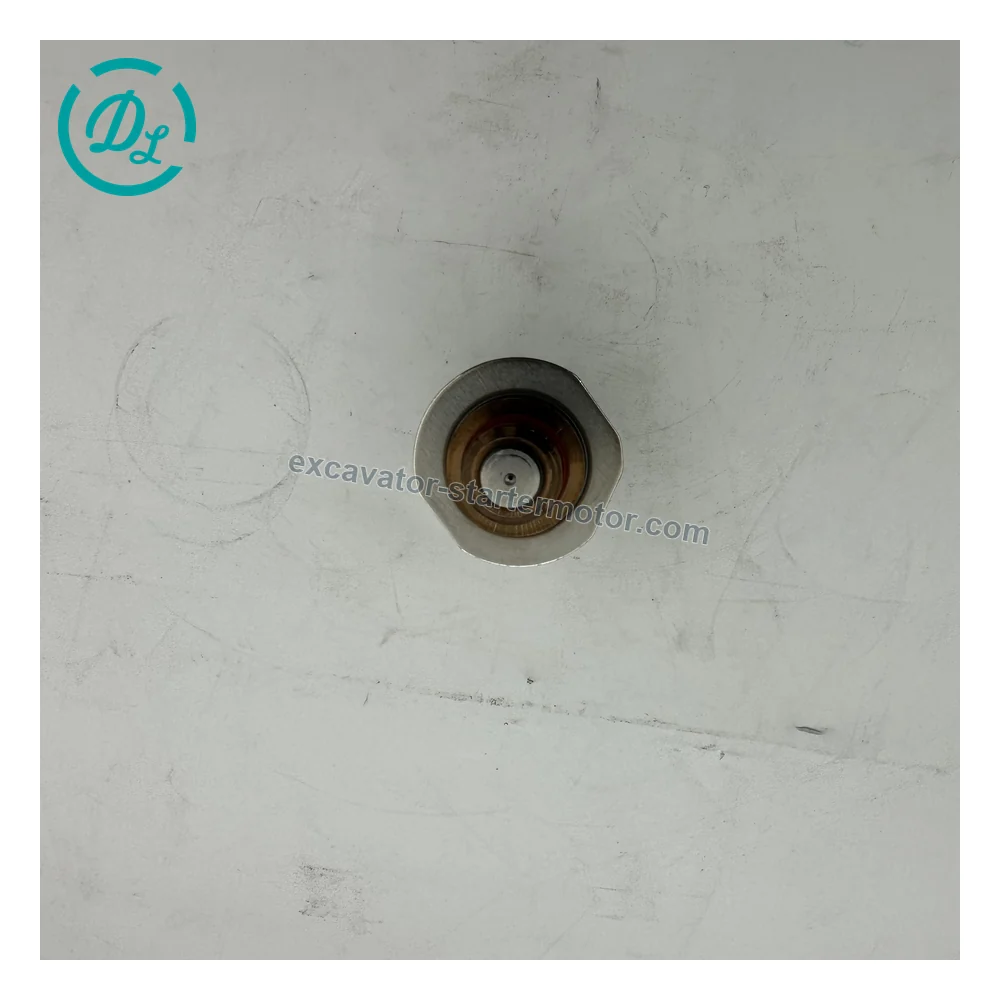

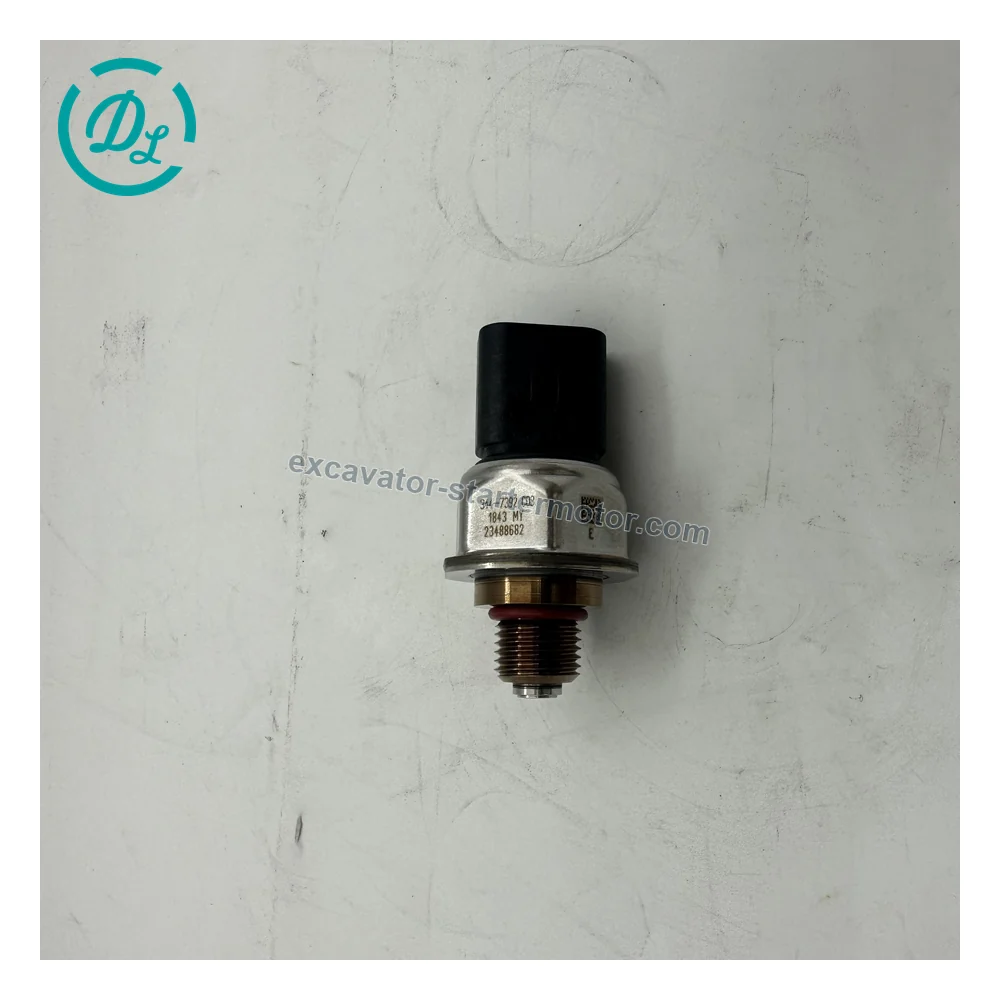

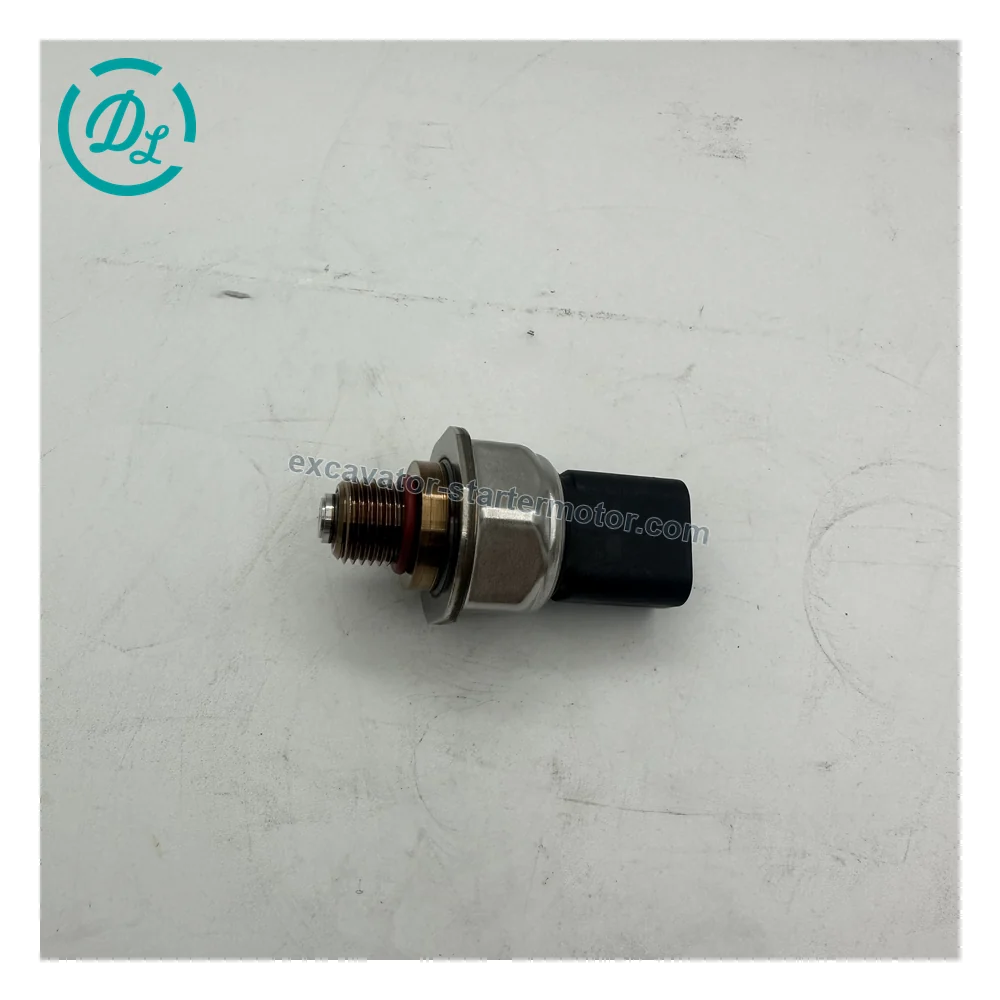

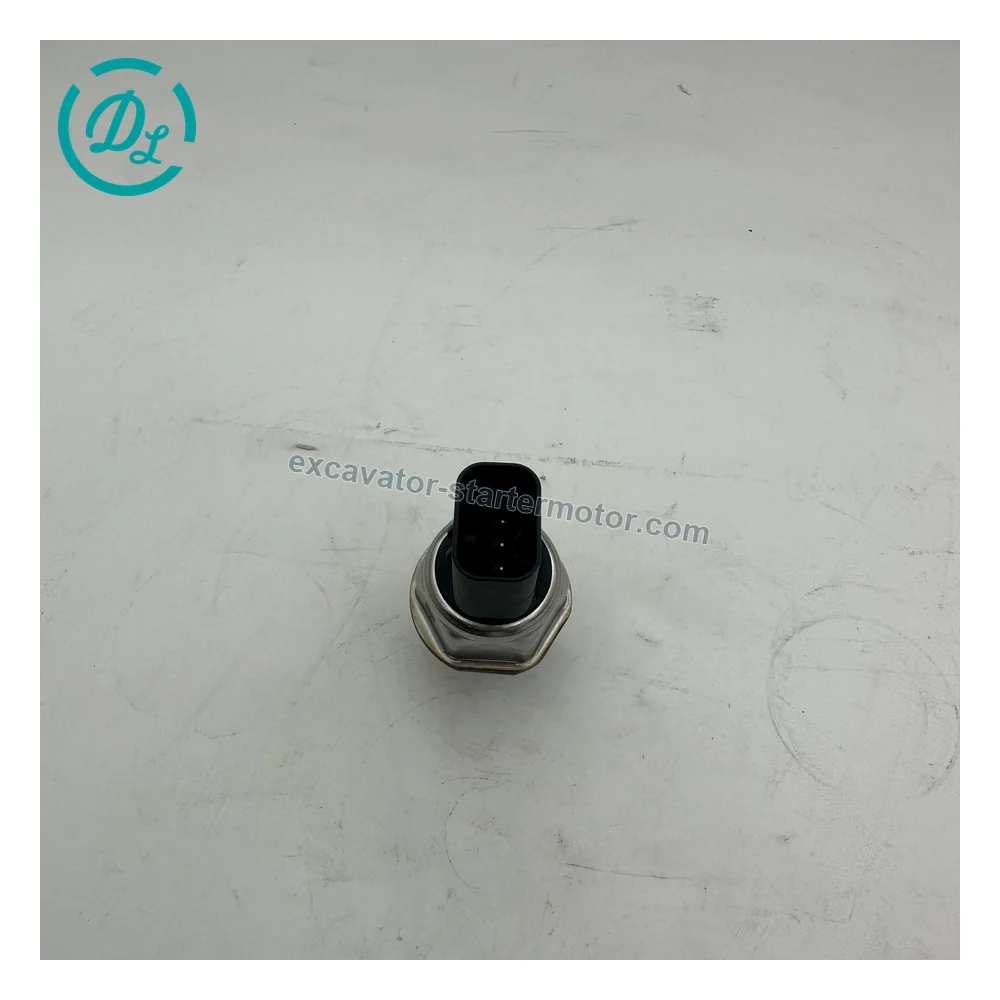

344-7392 500 Hz PWM Pressure Sensor for Cat 312D2, 320D2, 323 and 336, OEM/reference 344-7392, 500 Hz PWM Pressure Sensor, product view 1

1 / 5

5 product photos · Swipe on mobile, or hover and select a thumbnail.

OEM / reference344-7392

Specification500 Hz PWM Pressure Sensor

Catalog ID53573910

Cat part number 344-7392 identifies a 500 Hz pulse-width-modulation high-pressure sensor. The official exact-number record describes a strain-gage sensor whose PWM signal is proportional to applied pressure, with an integral connector and threaded process connection. Compatible models include 312D2, 320D2, 323, 336 and numerous additional Cat excavator and material-handler variants listed by the manufacturer. EexcavaStart-owned photographs show one matching 344-7392 sensor from five angles. Confirm the exact number, connector keying, thread, sealing face and machine serial range before ordering.

Product Type: High-pressure sensor
Signal Type: Pulse-width modulation (PWM)
Signal Frequency: 500 Hz
Sensing Technology: Strain gage
Electrical Connection: Integral connector; confirm keying
Process Connection: Threaded connection; confirm thread and sealing face

Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Part-number relationships

Relationship	Reference family	Number
Primary OE Number	Cat PWM pressure sensor	344-7392
Formatted Alias	Hyphen-free search form only	3447392

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number

344-7392

Formatting alias

3447392

Formatting aliases are the same number written differently. Related assemblies and remanufactured numbers are not presented as direct interchanges.

Product summary

500 Hz PWM Pressure Sensor

Category: Excavator Engine Parts
Catalog ID: 53573910
Photo views: 5

Before ordering

Confirm these details

Match the complete part number on the original component.
Compare connectors, mounting points and visible dimensions with the product photos.
Confirm the exact machine or engine model and serial range before ordering.

Machine fitment

Compatible model references

7 model references

Representative excavators: Cat 312D2, 312D2 GC, 313, 313 GC, 315F LCR, 316 GC and 316 GX
Representative excavators: Cat 318D2, 320, 320D2, 320D2 L, 320 GC and 320 GX
Representative excavators: Cat 321, 323, 323D2 L, 323F SA, 325 and 326
Representative excavators: Cat 329F L, 330, 330 GC, 336, 336 GC, 340, 345 GC and 349
Material handlers: Cat M315F, M317F, M318F and MH3040 among manufacturer-listed applications
Typical systems: Brake, steering, hydraulic and other application-specific pressure sensing
Fitment limitation: Confirm 344-7392, connector, thread, sealing face and machine serial range

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about 344-7392

Which machines use 344-7392?

Recorded compatible model references include Representative excavators: Cat 312D2, 312D2 GC, 313, 313 GC, 315F LCR, 316 GC and 316 GX, Representative excavators: Cat 318D2, 320, 320D2, 320D2 L, 320 GC and 320 GX, Representative excavators: Cat 321, 323, 323D2 L, 323F SA, 325 and 326, Representative excavators: Cat 329F L, 330, 330 GC, 336, 336 GC, 340, 345 GC and 349, Material handlers: Cat M315F, M317F, M318F and MH3040 among manufacturer-listed applications, Typical systems: Brake, steering, hydraulic and other application-specific pressure sensing, Fitment limitation: Confirm 344-7392, connector, thread, sealing face and machine serial range. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for 344-7392?

Formatting aliases for the same number: 3447392.

How do I confirm 344-7392 before ordering?

Match the complete part number on the original component. Compare connectors, mounting points and visible dimensions with the product photos. Confirm the exact machine or engine model and serial range before ordering. Send clear photos of the original unit and connector layout when requesting a quote.
