3357747 24V 80A Alternator for Mercedes-Benz Unitog U-300 Unitog U-400

Q: What numbers are documented for 3357747?

Primary Part Number: 3357747. Catalog Cross-Reference - Verify Configuration: 0 124 555 012. Catalog Cross-Reference - Verify Configuration: 220-5746. Catalog Cross-Reference - Verify Configuration: 752 611 85. Catalog Cross-Reference - Verify Configuration: 12387N. Catalog Cross-Reference - Verify Configuration: A 013 154 78 02 80. Catalog Cross-Reference - Verify Configuration: 0 124 555 001. Catalog Cross-Reference - Verify Configuration: 0 124 555 002. Catalog Cross-Reference - Verify Configuration: 0 124 555 004. Catalog Cross-Reference - Verify Configuration: 0 124 555 007. Catalog Cross-Reference - Verify Configuration: 0 124 555 022. Catalog Cross-Reference - Verify Configuration: 0 124 555 032. Relationship labels distinguish formatting aliases, direct interchanges, remanufactured references and related assemblies.

Q: How do I confirm 3357747 before ordering?

Match the complete part number, compare the connector or mounting arrangement with the product photos, and confirm the machine or engine model and serial range. Send clear photos of the original unit when requesting a quote.

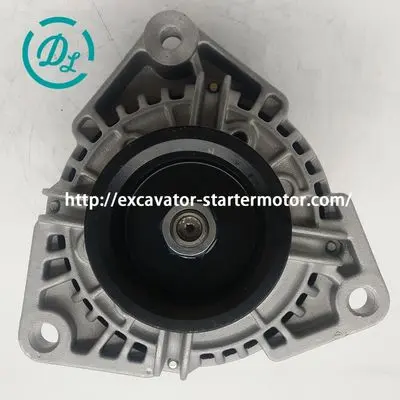

3357747 24V 80A Alternator for Mercedes-Benz Unitog U-300 Unitog U-400, OEM/reference 3357747, Alternator, product view 1

1 / 4

4 product photos · Swipe on mobile, or hover and select a thumbnail.

OEM / reference3357747

SpecificationAlternator

Catalog ID53693001

Alternator identified by primary reference 3357747. Catalog-confirmed configuration: 24V, 80A. The cited technical sources record 4 application references. Confirm the complete number, connector or mounting arrangement, and machine serial range before ordering.

Product Type: Alternator
Product Brand: EexcavaStart
Voltage: 24V 80A
Technical Specification: 80 Amp/24 Volt, 9-Groove Pulley
Design: IR/IF
Voltage: 24
Amperage: 80
Rotation: CW
Plug Clock: 08:00 Plug Clock
Pulley Class: S9
Pulley Note: 76MM OD
Note 1: Replaces several OEM units with different pulleys. Swap pulley if needed.
Ac Tap Y/N: N
Brushless: No
Dist Btwn Mtg Ft Mm H: 80
De Ft To Pulley 1st Grv Mm K: 29
De To Rotor Shft End Mm L: 61.5
Ground: N
Mtg Config Code: K
Pulley Groove Od: 76
Polarity: B+
One Wire Capable: No
Condition: New replacement part

Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Part-number relationships

Relationship	Reference family	Number
Primary Part Number	Source catalog	3357747
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	0 124 555 012
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	220-5746
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	752 611 85
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	12387N
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	A 013 154 78 02 80
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	0 124 555 001
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	0 124 555 002
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	0 124 555 004
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	0 124 555 007
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	0 124 555 022
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	0 124 555 032
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	0 124 555 065
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	0 124 555 168
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	0 986 042 360
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	0 986 042 370
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	0 986 042 380
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	0 986 048 100
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	011 154 86 02 80
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	011-154-28-02
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	011-154-86-02
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	012 154 04 02
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	012 154 04 02 80
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	012 154 10 02
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	012 154 10 02 80
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	012 154 68 02
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	012 154 68 02 80
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	013 154 28 02 80
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	013 154 29 02
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	013 154 29 02 80
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	013 154 40 02
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	013 154 53 02 80
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	013 154 78 02
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	013 154 78 02 80
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	013-154-28-02
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	014 154 53 02
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	014 154 53 02 80
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	063535550650
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	07804800
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	1-2716-00BO
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	10-1247
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	10-1249
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	10-1251
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	10443511
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	11.1666
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	113278
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	113351
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	113594
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	115497
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	12387
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	1475569
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	1516515R
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	160-55203
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	1763035
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	1763036
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	1777299
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	18.1666
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	19070008
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	19070009
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	19070019
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	20029
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	20101150
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	20101151
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	20101152
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	21.201.014
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	210630
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	210817
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	2109
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	220-5193
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	220-5197
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	220-5270
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	220-5270A
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	220-5270B
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	220-5270C
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	220-5441
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	220-8094
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	220-8096
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	2585798
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	2Z0 903 015
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	301666RI
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	301666RIB
Catalog Cross-Reference - Verify Configuration	Recorded in the cited catalog family; confirm electrical, mounting and application configuration	400-24046

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number

3357747

Other documented relationship

0 124 555 012
220-5746
752 611 85
12387N
A 013 154 78 02 80
0 124 555 001
0 124 555 002
0 124 555 004
0 124 555 007
0 124 555 022
0 124 555 032
0 124 555 065
0 124 555 168
0 986 042 360
0 986 042 370
0 986 042 380
0 986 048 100
011 154 86 02 80
011-154-28-02
011-154-86-02
012 154 04 02
012 154 04 02 80
012 154 10 02
012 154 10 02 80
012 154 68 02
012 154 68 02 80
013 154 28 02 80
013 154 29 02
013 154 29 02 80
013 154 40 02
013 154 53 02 80
013 154 78 02
013 154 78 02 80
013-154-28-02
014 154 53 02
014 154 53 02 80
063535550650
07804800
1-2716-00BO
10-1247
10-1249
10-1251
10443511
11.1666
113278
113351
113594
115497
12387
1475569
1516515R
160-55203
1763035
1763036
1777299
18.1666
19070008
19070009
19070019
20029
20101150
20101151
20101152
21.201.014
210630
210817
2109
220-5193
220-5197
220-5270
220-5270A
220-5270B
220-5270C
220-5441
220-8094
220-8096
2585798
2Z0 903 015
301666RI
301666RIB
400-24046

Formatting aliases are the same number written differently. Related assemblies and remanufactured numbers are not presented as direct interchanges.

Product summary

Alternator

Category: Excavator Alternators
Catalog ID: 53693001
Photo views: 4

Before ordering

Confirm these details

Confirm voltage and rated amperage against the original alternator label.
Compare mounting ears, pulley type and pulley-groove count.
Check plug shape, terminal position and regulator connection.
Verify the engine model and machine serial range before ordering.

Machine fitment

Compatible model references

4 model references

Recorded application: Make: Mercedes-Benz · Model: Unitog U-300 · Year: 2000-2003 · Engine: 4.3L - 4249cc Dsl
Recorded application: Make: Mercedes-Benz · Model: Unitog U-400 · Year: 2000-2003 · Engine: 4.3L - 4249cc Dsl
Recorded application: Make: Mercedes-Benz · Model: Unitog U-400 · Year: 2000-2003 · Engine: 6.4L - 6374cc Dsl
Recorded application: Make: Mercedes-Benz · Model: Unitog U-500 · Year: 2001-2003 · Engine: 6.4L - 6374cc Dsl

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about 3357747

Which machines use 3357747?

Recorded compatible model references include Recorded application: Make: Mercedes-Benz · Model: Unitog U-300 · Year: 2000-2003 · Engine: 4.3L - 4249cc Dsl, Recorded application: Make: Mercedes-Benz · Model: Unitog U-400 · Year: 2000-2003 · Engine: 4.3L - 4249cc Dsl, Recorded application: Make: Mercedes-Benz · Model: Unitog U-400 · Year: 2000-2003 · Engine: 6.4L - 6374cc Dsl, Recorded application: Make: Mercedes-Benz · Model: Unitog U-500 · Year: 2001-2003 · Engine: 6.4L - 6374cc Dsl. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for 3357747?

No alternate number is listed for 3357747. Send the original nameplate for an alternate-number check.

How do I confirm 3357747 before ordering?

Confirm voltage and rated amperage against the original alternator label. Compare mounting ears, pulley type and pulley-groove count. Check plug shape, terminal position and regulator connection. Send clear photos of the original unit and connector layout when requesting a quote.
