Excavator Alternators

LR1110-501 12V 110A Alternator for Chevrolet W3500 Tiltmaster W4500 Tiltmaster

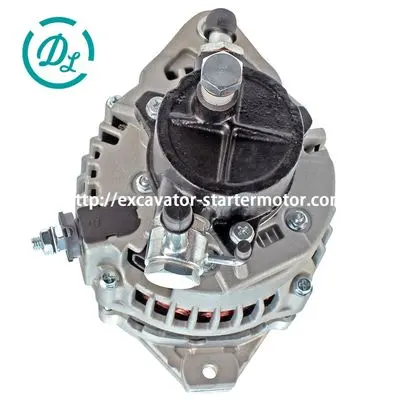

LR1110-501 12V 110A Alternator for Chevrolet W3500 Tiltmaster W4500 Tiltmaster, OEM/reference LR1110-501, Alternator, product view 1
1 / 4

4 product photos · Swipe on mobile, or hover and select a thumbnail.

OEM / referenceLR1110-501
SpecificationAlternator
Catalog ID53684520

Alternator identified by primary reference LR1110-501. Catalog-confirmed configuration: 12V, 110A. The cited technical sources record 21 application references. Confirm the complete number, connector or mounting arrangement, and machine serial range before ordering.

Product Type
Alternator
Product Brand
EexcavaStart
Voltage
12V 110A
Technical Specification
110 Amp/12 Volt, CW, 3-Groove Pulley
Design
IR/EF
Voltage
12
Amperage
110
Rotation
CW
Plug Clock
01:00 Plug Clock
Plug Code
300
Pulley Class
V3
Pulley Note
82MM OD
Ac Tap Y/N
N
Brushless
NO
Dist Btwn Mtg Ft Mm H
79
De Ft To Pulley 1st Grv Mm K
42
De To Rotor Shft End Mm L
55
Mounting Type
DUAL FOOT MOUNT
Pulley Groove Od
82
Dist Btwn Mtg Ear Mm
78.9
Split Mtg Ear Thk Mm
76.9
Polarity
Positive
Condition
New replacement part
Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Part-number relationships

RelationshipReference familyNumber
Primary Part NumberSource catalogLR1110-501
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration12536N
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration1-3203-01HI
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration12536
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration12536R
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration135.815.110.080
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration140-39121
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration204-226
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration2902768400
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration400-44066
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration612536
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration8972482970
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration8972482971
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configuration90-25-1148
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configurationA-80176
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configurationAHI0145
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configurationAJ-00124R
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configurationALT20405
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configurationLR1110-501B
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configurationLR1110-501BAM
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configurationVA-12536
Catalog Cross-Reference - Verify ConfigurationRecorded in the cited catalog family; confirm electrical, mounting and application configurationX612536

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number
  • LR1110-501
Other documented relationship
  • 12536N
  • 1-3203-01HI
  • 12536
  • 12536R
  • 135.815.110.080
  • 140-39121
  • 204-226
  • 2902768400
  • 400-44066
  • 612536
  • 8972482970
  • 8972482971
  • 90-25-1148
  • A-80176
  • AHI0145
  • AJ-00124R
  • ALT20405
  • LR1110-501B
  • LR1110-501BAM
  • VA-12536
  • X612536

Formatting aliases are the same number written differently. Related assemblies and remanufactured numbers are not presented as direct interchanges.

Product summary

Alternator

Category
Excavator Alternators
Catalog ID
53684520
Photo views
4

Before ordering

Confirm these details

  • Confirm voltage and rated amperage against the original alternator label.
  • Compare mounting ears, pulley type and pulley-groove count.
  • Check plug shape, terminal position and regulator connection.
  • Verify the engine model and machine serial range before ordering.

Machine fitment

Compatible model references

21 model references

  • Recorded application: Make: Chevrolet · Model: W3500 Tiltmaster · Year: 1999 · Engine: L4 4.8L 290cid Isuzu 4HE1
  • Recorded application: Make: Chevrolet · Model: W3500 Tiltmaster · Year: 2000 · Engine: L4 4.8L 290cid
  • Recorded application: Make: Chevrolet · Model: W3500 Tiltmaster · Year: 2001-2004 · Engine: L4 4.8L 290cid Isuzu 4HE1
  • Recorded application: Make: Chevrolet · Model: W3500 Tiltmaster · Year: 2005-2009 · Engine: L4 5.2L 317cid Isuzu 4HK1
  • Recorded application: Make: Chevrolet · Model: W4500 Tiltmaster · Year: 1999-2004 · Engine: L4 4.8L 290cid Isuzu 4HE1
  • Recorded application: Make: Chevrolet · Model: W4500 Tiltmaster · Year: 2005-2010 · Engine: L4 5.2L 317cid Isuzu 4HK1
  • Recorded application: Make: Chevrolet · Model: W5500 Tiltmaster · Year: 1999-2004 · Engine: L4 4.8L 290cid Isuzu 4HE1
  • Recorded application: Make: Chevrolet · Model: W5500 Tiltmaster · Year: 2005-2010 · Engine: L4 5.2L 317cid Isuzu 4HK1
  • Recorded application: Make: Chevrolet · Model: W5500HD Tiltmaster · Year: 2004-2009 · Engine: L4 5.2L 317cid Isuzu 4HK1
  • Recorded application: Make: Chevrolet · Model: W5500HD Tiltmaster · Year: 2004 · Engine: L4 4.8L 290cid Isuzu 4HE1
  • Recorded application: Make: GMC · Model: W3500 Forward · Year: 2005-2008 · Engine: L4 5.2L 317cid Isuzu 4HK1
  • Recorded application: Make: GMC · Model: W4500 Forward · Year: 2005-2010 · Engine: L4 5.2L 317cid Isuzu 4HK1
  • Recorded application: Make: GMC · Model: W5500 Forward · Year: 2005-2010 · Engine: L4 5.2L 317cid Isuzu 4HK1
  • Recorded application: Make: GMC · Model: W5500HD Forward · Year: 2005-2009 · Engine: L4 5.2L 317cid Isuzu 4HK1
  • Recorded application: Make: Isuzu · Model: NPR-HD · Year: 2003-2004 · Engine: L4 4.8L 290cid Isuzu 4HE1
  • Recorded application: Make: Isuzu · Model: NPR-HD · Year: 2005-2007 · Engine: L4 5.2L 317cid Isuzu 4HK1
  • Recorded application: Make: Isuzu · Model: NPR · Year: 2003-2004 · Engine: L4 4.8L 290cid Isuzu 4HE1
  • Recorded application: Make: Isuzu · Model: NPR · Year: 2005-2006 · Engine: L4 5.2L 317cid Isuzu 4HK1
  • Recorded application: Make: Isuzu · Model: NQR · Year: 2003-2004 · Engine: L4 4.8L 290cid Isuzu 4HE1
  • Recorded application: Make: Isuzu · Model: NQR · Year: 2005-2007 · Engine: L4 5.2L 317cid Isuzu 4HK1
  • Recorded application: Make: Isuzu · Model: NRR · Year: 2005-2007 · Engine: L4 5.2L 317cid Isuzu 4HK1

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about LR1110-501

Which machines use LR1110-501?

Recorded compatible model references include Recorded application: Make: Chevrolet · Model: W3500 Tiltmaster · Year: 1999 · Engine: L4 4.8L 290cid Isuzu 4HE1, Recorded application: Make: Chevrolet · Model: W3500 Tiltmaster · Year: 2000 · Engine: L4 4.8L 290cid, Recorded application: Make: Chevrolet · Model: W3500 Tiltmaster · Year: 2001-2004 · Engine: L4 4.8L 290cid Isuzu 4HE1, Recorded application: Make: Chevrolet · Model: W3500 Tiltmaster · Year: 2005-2009 · Engine: L4 5.2L 317cid Isuzu 4HK1, Recorded application: Make: Chevrolet · Model: W4500 Tiltmaster · Year: 1999-2004 · Engine: L4 4.8L 290cid Isuzu 4HE1, Recorded application: Make: Chevrolet · Model: W4500 Tiltmaster · Year: 2005-2010 · Engine: L4 5.2L 317cid Isuzu 4HK1, Recorded application: Make: Chevrolet · Model: W5500 Tiltmaster · Year: 1999-2004 · Engine: L4 4.8L 290cid Isuzu 4HE1, Recorded application: Make: Chevrolet · Model: W5500 Tiltmaster · Year: 2005-2010 · Engine: L4 5.2L 317cid Isuzu 4HK1 and 13 additional models shown on this page. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for LR1110-501?

No alternate number is listed for LR1110-501. Send the original nameplate for an alternate-number check.

How do I confirm LR1110-501 before ordering?

Confirm voltage and rated amperage against the original alternator label. Compare mounting ears, pulley type and pulley-groove count. Check plug shape, terminal position and regulator connection. Send clear photos of the original unit and connector layout when requesting a quote.
