Excavator Starter Motors

0001223016 12V 2.3kW 9T CW Starter Motor for Deutz 1011 2011 Engines

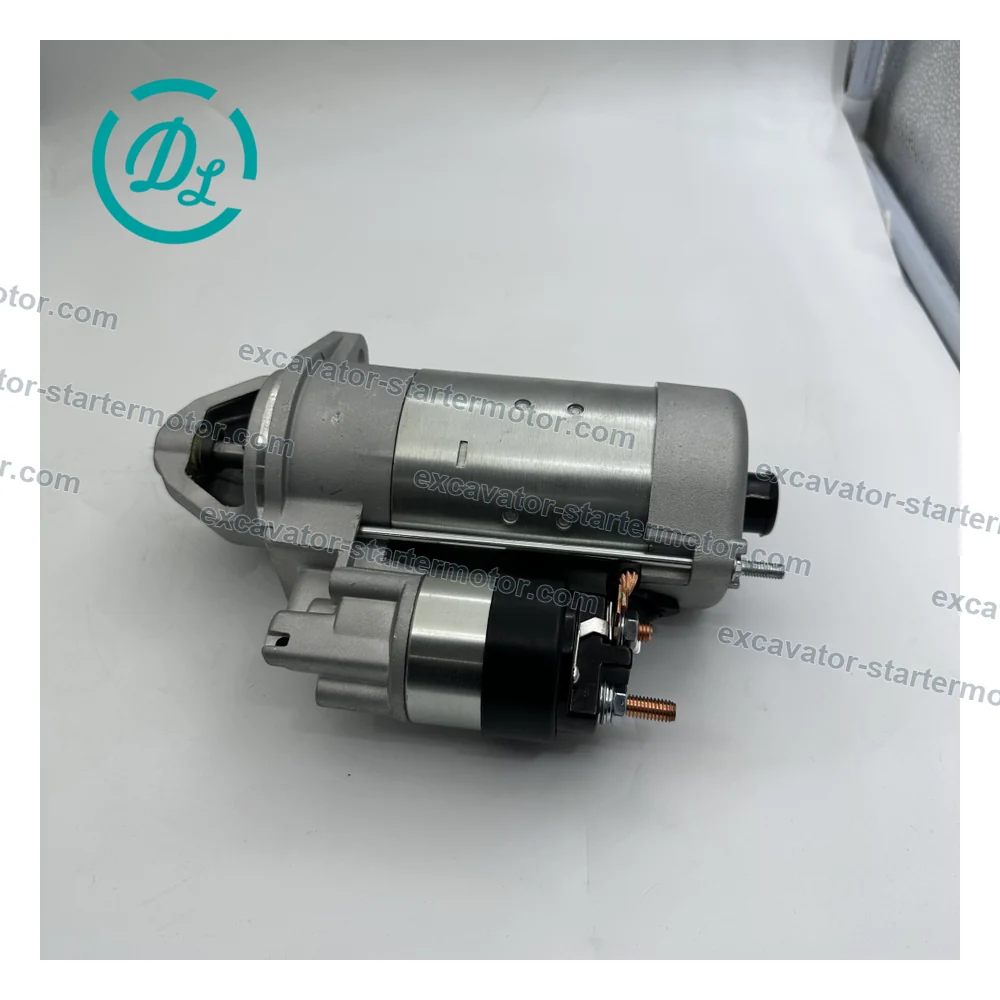

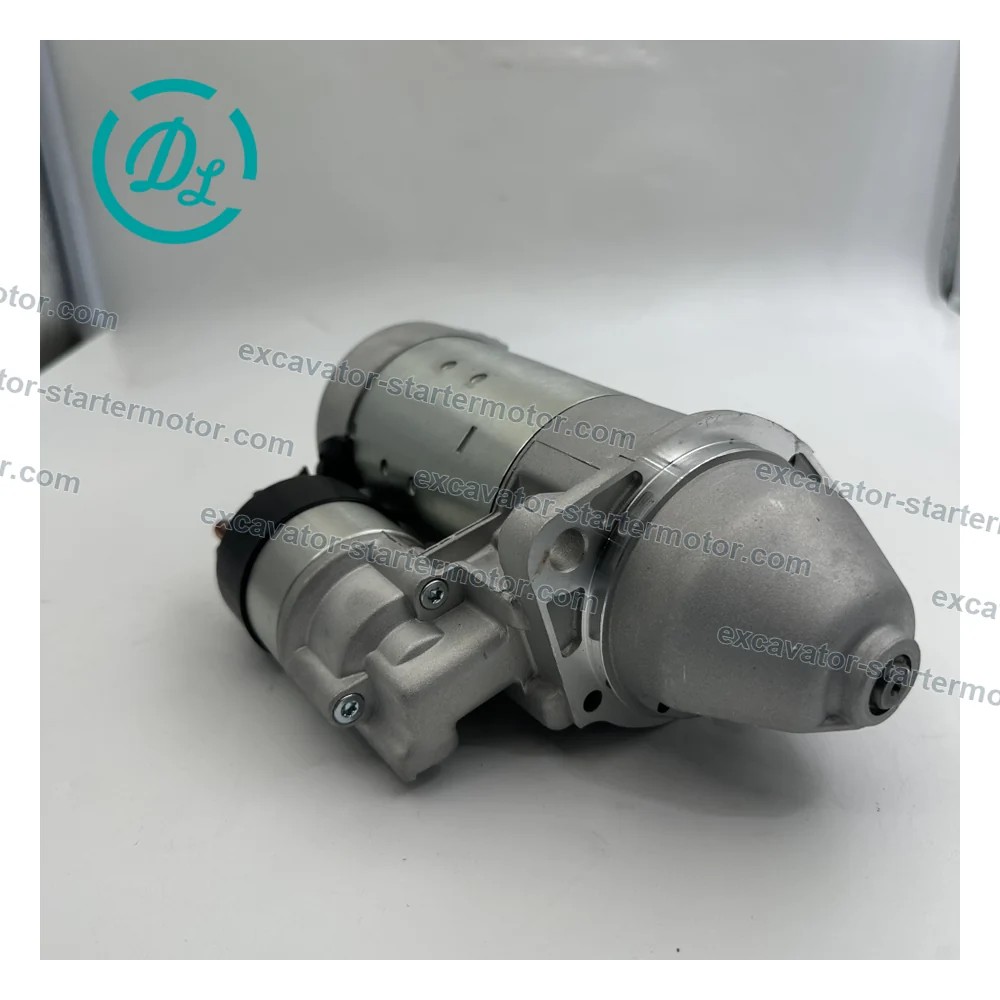

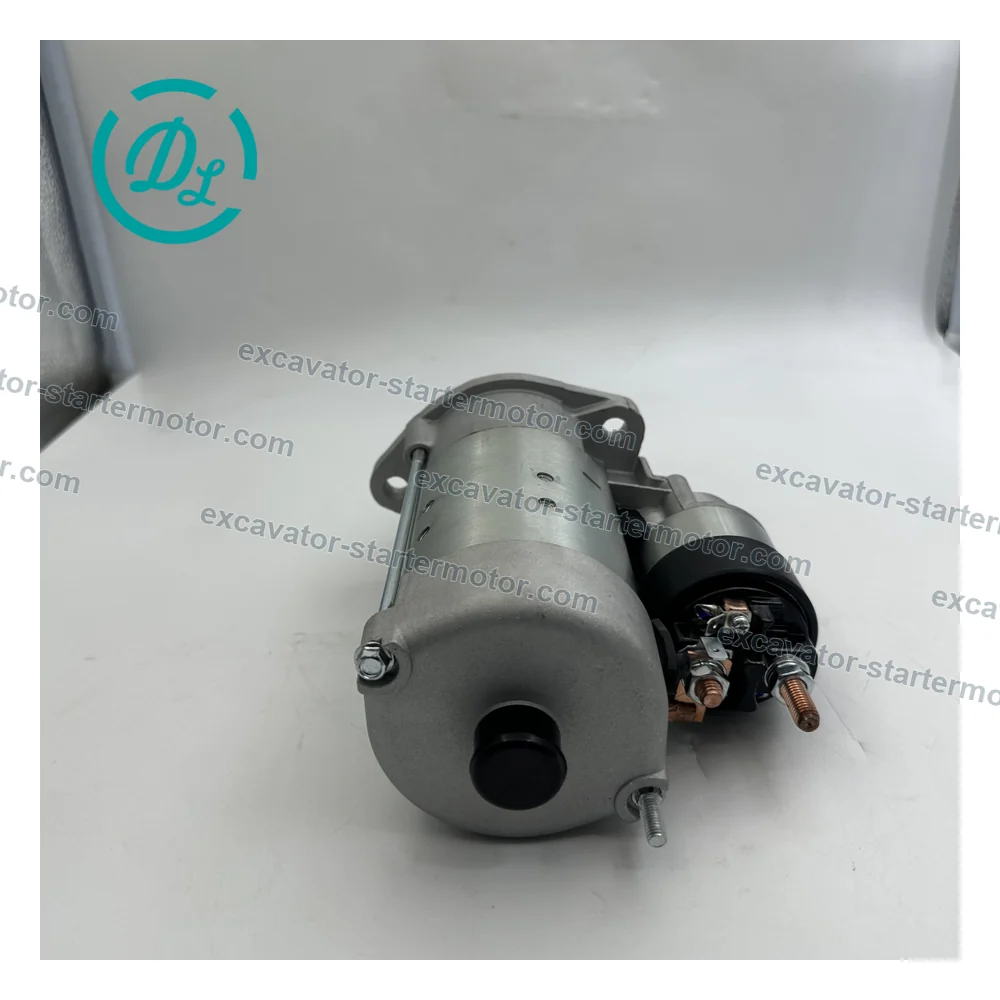

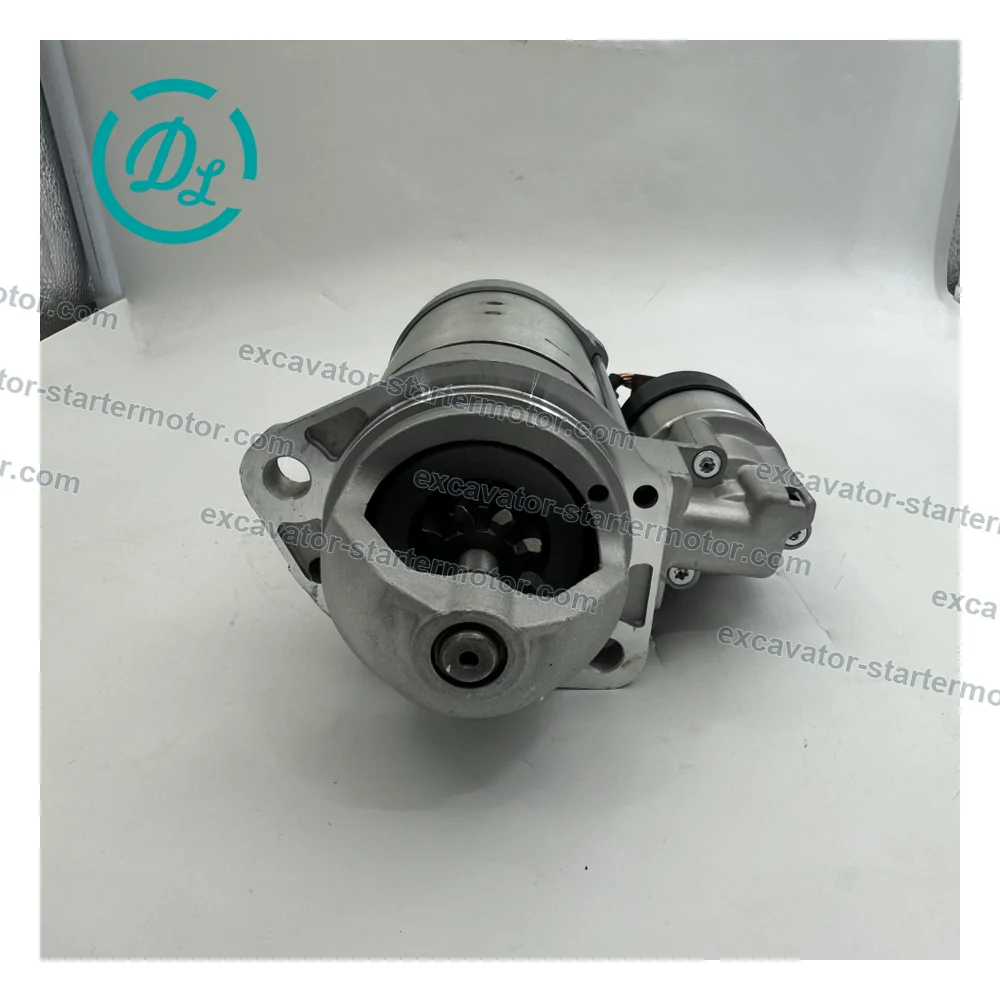

0001223016 12V 2.3kW 9T CW Starter Motor for Deutz 1011 2011 Engines, OEM/reference 0001223016, Starter Motor, product view 1
1 / 5

5 product photos · Swipe on mobile, or hover and select a thumbnail.

OEM / reference0001223016
SpecificationStarter Motor
Catalog ID53825832

12V PLGR starter motor identified by primary part number 0001223016 (formatted 0 001 223 016). Exact-number catalogues specify 2.3kW, clockwise rotation and a 9-tooth pinion for matching Deutz 1011 and 2011-series industrial engine applications. Confirm the complete number, two-bolt mounting flange, pinion dimensions, terminals, engine model and machine serial range before ordering.

Product Type
PLGR starter motor
Product Brand
EexcavaStart
Voltage
12V
Rated Power
2.3kW
Rotation
CW
Pinion Teeth
9
Mounting
2-bolt flange; verify hole and pilot dimensions
Gear Outside Diameter
33.7mm catalog specification
Condition
New replacement part
Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Part-number relationships

RelationshipReference familyNumber
Primary Part NumberExact catalog and source-folder identity0001223016
Formatted AliasSame primary number with manufacturer spacing0 001 223 016
Source Catalog NumberExact 18951N technical catalog record18951N
Catalog Alternative - Verify ConfigurationCatalog-listed alternate unit; compare mounting and terminals0001223021
Formatted AliasFormatted version of catalog alternative 00012230210 001 223 021
Remanufactured AlternativeCatalog-listed remanufactured service number0986019820
Catalog OEM Reference - Verify ConfigurationDeutz/KHD service reference in exact-number catalogues01181751
Catalog OEM Reference - Verify ConfigurationDeutz/KHD service reference in exact-number catalogues01182382
Catalog OEM Reference - Verify ConfigurationDeutz/KHD service reference in exact-number catalogues01182384
Catalog OEM Reference - Verify ConfigurationDeutz/KHD service reference in exact-number catalogues01183404
Catalog OEM Reference - Verify ConfigurationDeutz/KHD service reference in exact-number catalogues01183599
Catalog OEM Reference - Verify ConfigurationDeutz/KHD service reference in exact-number catalogues04300006

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number
  • 0001223016
Formatting alias
  • 0 001 223 016
  • 0 001 223 021
Remanufactured number
  • 0986019820
Other documented relationship
  • 18951N
  • 0001223021
  • 01181751
  • 01182382
  • 01182384
  • 01183404
  • 01183599
  • 04300006

Formatting aliases are the same number written differently. Related assemblies and remanufactured numbers are not presented as direct interchanges.

Product summary

Starter Motor

Category
Excavator Starter Motors
Catalog ID
53825832
Photo views
5

Before ordering

Confirm these details

  • Confirm voltage and power rating against the original starter nameplate.
  • Compare mounting-hole pattern, flange position and overall body orientation.
  • Confirm pinion tooth count and rotation where those values are specified.
  • Verify the engine model and machine serial range before ordering.

Machine fitment

Compatible model references

5 model references

  • Deutz 1011 engine family: F2L1011, F3L1011, F3L1011F, F4L1011, F4L1011F, F4M1011F, BF4L1011 and BF4M1011F
  • Deutz 2011 engine family: F2M2011, F3L2011F, F3M2011F, D2011 L02/L03, BF3M2011F, BF4M2011 and related matching configurations
  • Catalog-recorded machine examples: Ahlmann AL100; Bomag BW124DH-3/BW124PDH-3; Gehl 4640/4640E/4840/4840E; Hamm 3205/3205P/3307/3307P; Stone WP6400/WP6400B
  • Additional catalog-recorded equipment: Selected Atlas Copco QAX/XAS generators and compressors, rollers, pavers and industrial equipment using the matching Deutz engine and starter configuration
  • Fitment limitation: Confirm 0001223016, 12V, 2.3kW, 9 teeth, clockwise rotation, two-bolt flange, pilot, terminals, engine model and machine serial range

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about 0001223016

Which machines use 0001223016?

Recorded compatible model references include Deutz 1011 engine family: F2L1011, F3L1011, F3L1011F, F4L1011, F4L1011F, F4M1011F, BF4L1011 and BF4M1011F, Deutz 2011 engine family: F2M2011, F3L2011F, F3M2011F, D2011 L02/L03, BF3M2011F, BF4M2011 and related matching configurations, Catalog-recorded machine examples: Ahlmann AL100; Bomag BW124DH-3/BW124PDH-3; Gehl 4640/4640E/4840/4840E; Hamm 3205/3205P/3307/3307P; Stone WP6400/WP6400B, Additional catalog-recorded equipment: Selected Atlas Copco QAX/XAS generators and compressors, rollers, pavers and industrial equipment using the matching Deutz engine and starter configuration, Fitment limitation: Confirm 0001223016, 12V, 2.3kW, 9 teeth, clockwise rotation, two-bolt flange, pilot, terminals, engine model and machine serial range. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for 0001223016?

Formatting aliases for the same number: 0 001 223 016, 0 001 223 021. Remanufactured references: 0986019820.

How do I confirm 0001223016 before ordering?

Confirm voltage and power rating against the original starter nameplate. Compare mounting-hole pattern, flange position and overall body orientation. Confirm pinion tooth count and rotation where those values are specified. Send clear photos of the original unit and connector layout when requesting a quote.
