87715398 12V 200A Alternator for Case IH 5088 6088 7088 Magnum

Q: What numbers are documented for 87715398?

Primary Case IH Part Number: 87715398. Formatted Primary Alias: 877 153 98. CNH Replacement-Family Reference: 504338098. Bosch Manufacturer Reference: 0 124 625 059. Bosch Manufacturer Reference: 0 124 625 123. Letrika Manufacturer Reference: 11.204.299. Aftermarket Catalogue Number: 12881N. Relationship labels distinguish formatting aliases, direct interchanges, remanufactured references and related assemblies.

Q: How do I confirm 87715398 before ordering?

Match the complete part number, compare the connector or mounting arrangement with the product photos, and confirm the machine or engine model and serial range. Send clear photos of the original unit when requesting a quote.

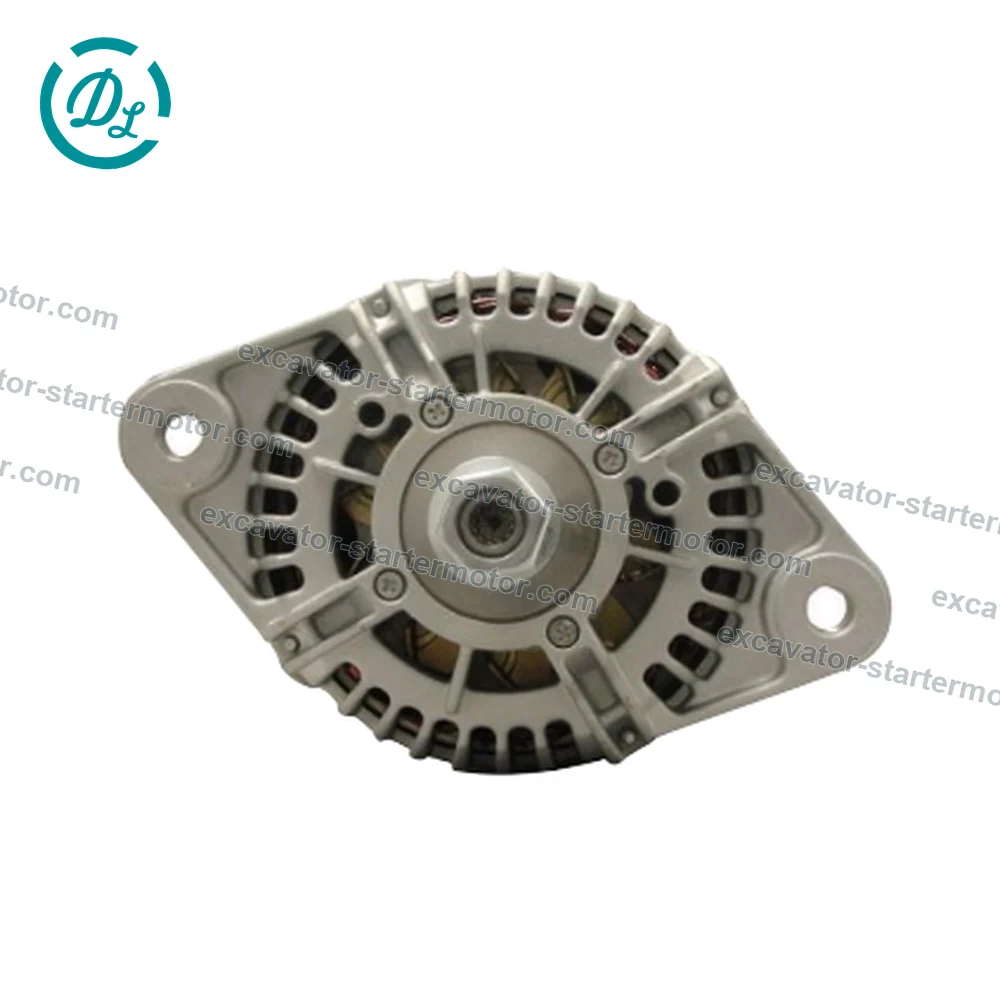

87715398 12V 200A Alternator for Case IH 5088 6088 7088 Magnum, OEM/reference 87715398, Alternator, product view 1

1 / 2

2 product photos · Swipe on mobile, or hover and select a thumbnail.

OEM / reference87715398

SpecificationAlternator

Catalog ID65276161

22-508860887088 Alternator for Excavator and Diesel Equipment. EexcavaStart alternator identified by reference 22-508860887088. Compare the complete part number, connector or mounting configuration, and the original product photos before ordering. Send the machine model, serial number, and nameplate photo for a fitment check.

Product Type: Alternator
Voltage: 12V
Output: 200A
Design: Bosch IR/IF
Rotation: Clockwise (CW)
Pulley: Not supplied; transfer/confirm original pulley
Mounting-Ear Distance: 101.2 mm published value
Split Mounting-Ear Thickness: 27 mm published value
Cooling: Internal fan
Condition: New replacement part

Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Part-number relationships

Relationship	Reference family	Number
Primary Case IH Part Number	Exact published replacement-reference entry	87715398
Formatted Primary Alias	Spacing-only form of the same primary number	877 153 98
CNH Replacement-Family Reference	Published catalogue relation; verify physical configuration	504338098
Bosch Manufacturer Reference	Published manufacturer reference	0 124 625 059
Bosch Manufacturer Reference	Published manufacturer reference	0 124 625 123
Letrika Manufacturer Reference	Published manufacturer reference	11.204.299
Aftermarket Catalogue Number	verified exact-reference interchange record	12881N

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number

87715398
877 153 98

Manufacturer number

0 124 625 059
0 124 625 123
11.204.299

Other documented relationship

504338098
12881N

Formatting aliases are the same number written differently. Related assemblies and remanufactured numbers are not presented as direct interchanges.

Product summary

Alternator

Category: Excavator Alternators
Catalog ID: 65276161
Photo views: 2

Before ordering

Confirm these details

Confirm voltage and rated amperage against the original alternator label.
Compare mounting ears, pulley type and pulley-groove count.
Check plug shape, terminal position and regulator connection.
Verify the engine model and machine serial range before ordering.

Machine fitment

Compatible model references

12 model references

Case IH 5088: 6TAA-830 / QSC8.3 engine family
Case IH 6088: 6TAA-830 / QSC8.3 engine family
Case IH 7088: 6TAA-830 / QSC8.3 engine family
Case IH Magnum 215 / 245 / 275: Published exact-record applications
Case IH Magnum 255 / 305 / 335: Published exact-record applications
Case CE catalog applications: f3dfa613a e001, f3dfa613a e002, f3dfa613b e004
Case CE catalog engine references: F3DFA613A, F3DFA613B
Case IH catalog applications: 2566, 2688, 2799, f3hfe613b b001, f3hfe613b b002, f3hfe613d b001, f3hfe613d b002, f3hfe613g b001, f3hfe613g b002, magnum 225, magnum 245, magnum 250, magnum 275, magnum 280, magnum 305, magnum 310, magnum 335, mx215, mx245, mx275, mx305, quadtrac 420, quadtrac 450, quadtrac 470, quadtrac 500, quadtrac 550, quadtrac 600, steiger 335, steiger 400, steiger 420, steiger 450, steiger 470, steiger 500, steiger 535, steiger 540, steiger 550, steiger 600
Case IH catalog engine references: F3HFE613B, F3HFE613D, F3HFE613G
New Holland catalog applications: f3hfe613b b001, f3hfe613b b002, f3hfe613d b001, f3hfe613d b002, f3hfe613g b001, f3hfe613g b002, t8010, t8020, t8030, t8040, t8050, t9.450, t9.505, t9.560, t9.565, t9.615, t9.670, t9010, t9020, t9030, t9040, t9050, t9060, tg215, tg245, tg275, tg305, tj280, tj330, tj380, tj430, tj480, tj530
New Holland catalog engine references: F3HFE613B, F3HFE613D, F3HFE613G
Fitment limitation: Confirm 87715398, 12V 200A, pulley transfer, mounting ears, terminals and serial configuration

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about 87715398

Which machines use 87715398?

Recorded compatible model references include Case IH 5088: 6TAA-830 / QSC8.3 engine family, Case IH 6088: 6TAA-830 / QSC8.3 engine family, Case IH 7088: 6TAA-830 / QSC8.3 engine family, Case IH Magnum 215 / 245 / 275: Published exact-record applications, Case IH Magnum 255 / 305 / 335: Published exact-record applications, Case CE catalog applications: f3dfa613a e001, f3dfa613a e002, f3dfa613b e004, Case CE catalog engine references: F3DFA613A, F3DFA613B, Case IH catalog applications: 2566, 2688, 2799, f3hfe613b b001, f3hfe613b b002, f3hfe613d b001, f3hfe613d b002, f3hfe613g b001, f3hfe613g b002, magnum 225, magnum 245, magnum 250, magnum 275, magnum 280, magnum 305, magnum 310, magnum 335, mx215, mx245, mx275, mx305, quadtrac 420, quadtrac 450, quadtrac 470, quadtrac 500, quadtrac 550, quadtrac 600, steiger 335, steiger 400, steiger 420, steiger 450, steiger 470, steiger 500, steiger 535, steiger 540, steiger 550, steiger 600 and 4 additional models shown on this page. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for 87715398?

Manufacturer number: 0 124 625 059, 0 124 625 123, 11.204.299.

How do I confirm 87715398 before ordering?

Confirm voltage and rated amperage against the original alternator label. Compare mounting ears, pulley type and pulley-groove count. Check plug shape, terminal position and regulator connection. Send clear photos of the original unit and connector layout when requesting a quote.
