Excavator Starter Motors

028000-9270 12V 1.4kW 9-Tooth CW Denso Starter for Toyota 2SG-7 3FG 4FG 5FG and 6FG Lift Trucks

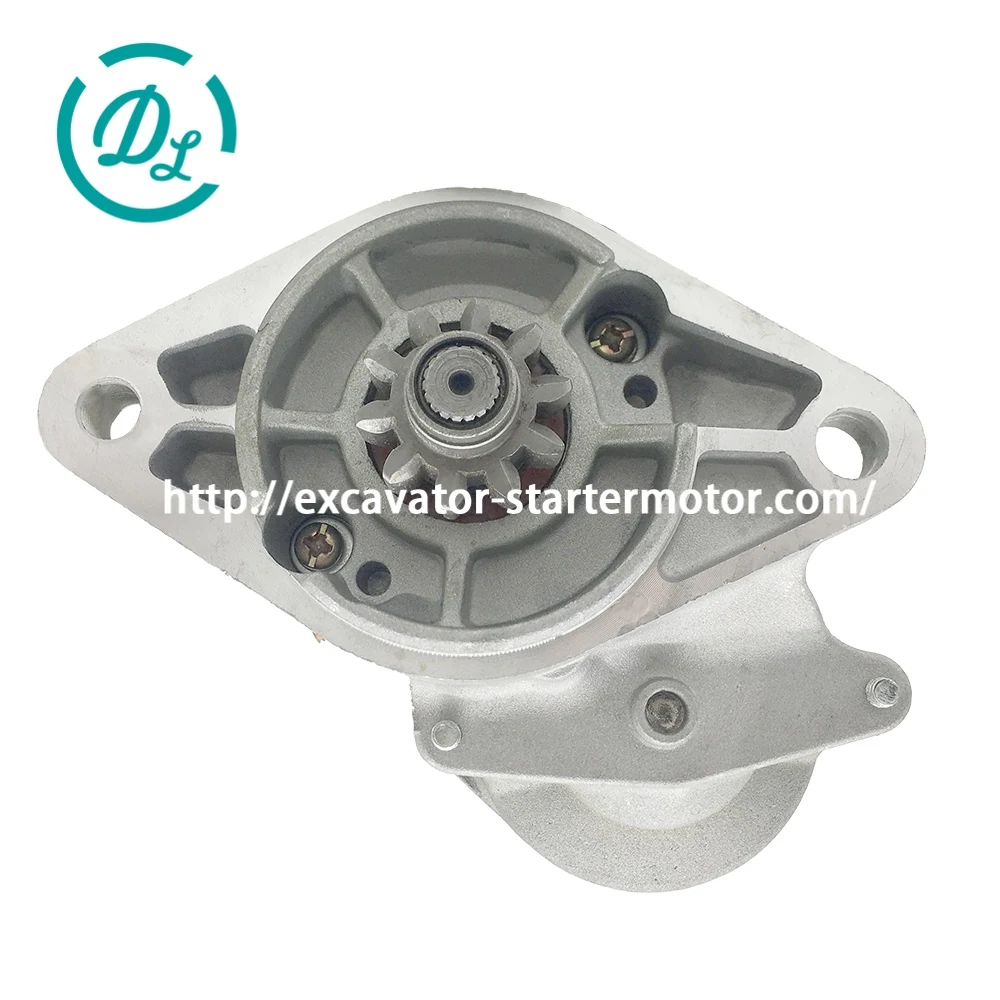

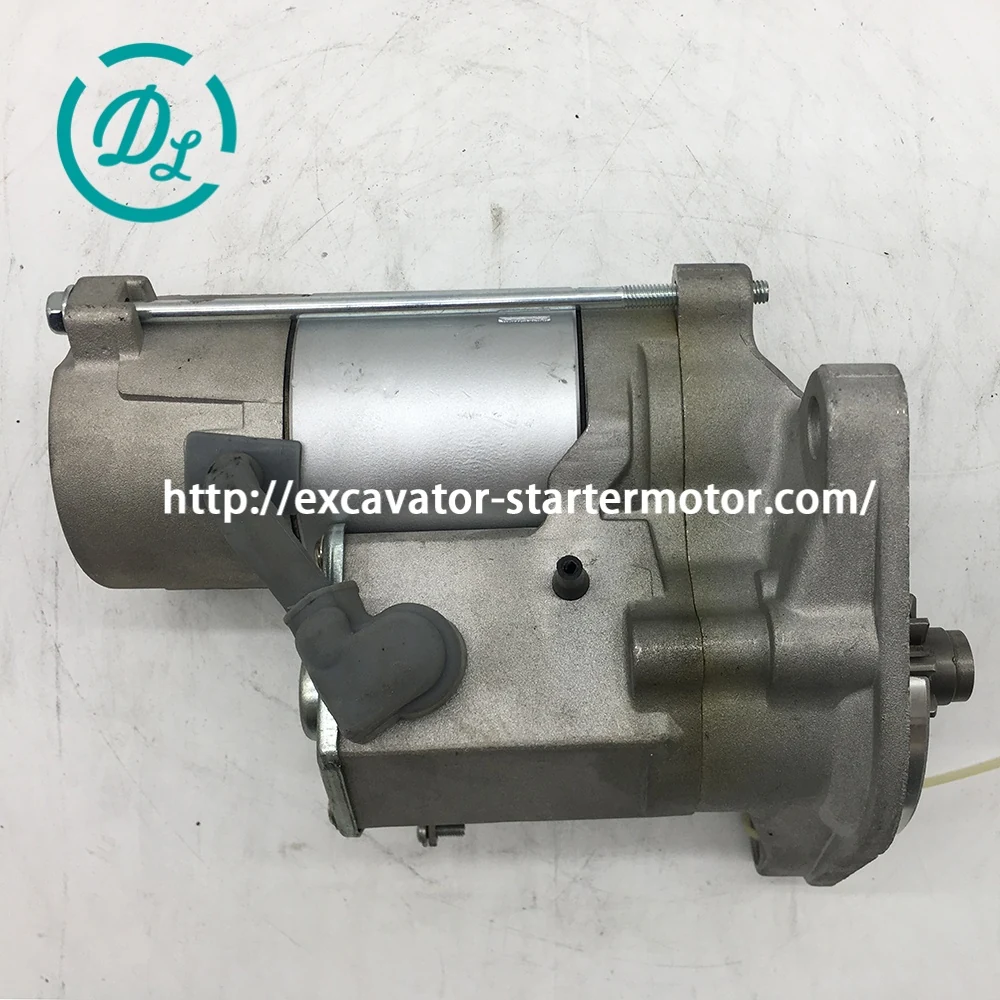

028000-9270 12V 1.4kW 9-Tooth CW Denso Starter for Toyota 2SG-7 3FG 4FG 5FG and 6FG Lift Trucks, OEM/reference 028000-9270, 12V 1.4kW 9-Tooth CW OSGR Starter, product view 1
1 / 3

3 product photos · Swipe on mobile, or hover and select a thumbnail.

OEM / reference028000-9270
Specification12V 1.4kW 9-Tooth CW OSGR Starter
Catalog ID74586975

Denso offset-gear-reduction starter identified by primary number 028000-9270. Independent exact-number catalogs agree on 12 volts, 1.4 kW, clockwise rotation and a 9-tooth pinion. Published applications include Toyota 2SG-7 and selected 3FG, 4FG, 5FG and 6FG lift trucks with the cataloged 2F, 3F, 4P, 4Y, 5P and 5R engine families. Confirm the complete number, flange, pinion and terminal layout before shipment.

Product Type
Offset-gear-reduction starter motor
Voltage
12 V
Published Power
1.4 kW
Rotation
Clockwise
Pinion Teeth
9
Mounting Type
Flange
Condition
New replacement part
Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Part-number relationships

RelationshipReference familyNumber
Primary Manufacturer Part NumberDenso exact-number identity028000-9270
Formatted AliasSame Denso number without separators0280009270
Direct Interchange NumbersDenso unit-number family in the exact 16790 catalog record128000-1250 / 128000-1251 / 128000-1252
Equipment OEM Cross-ReferencesToyota numbers in the exact 16790 replacement record28100-20550 / 28100-20550-71 / 28100-20551 / 28100-20552 / 28100-20552-71 / 28100-34050 / 28100-34051 / 28100-34052 / 28100-34053 / 28100-35020 / 28100-35040 / 28100-35140
Equipment OEM Cross-ReferenceHyster catalog number3048566
Catalog Cross-ReferenceLester catalog number16790

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number
  • 028000-9270
Formatting alias
  • 0280009270
Direct interchange
  • 128000-1250 / 128000-1251 / 128000-1252
Other documented relationship
  • 28100-20550 / 28100-20550-71 / 28100-20551 / 28100-20552 / 28100-20552-71 / 28100-34050 / 28100-34051 / 28100-34052 / 28100-34053 / 28100-35020 / 28100-35040 / 28100-35140
  • 3048566
  • 16790

Formatting aliases are the same number written differently. Related assemblies and remanufactured numbers are not presented as direct interchanges.

Product summary

12V 1.4kW 9-Tooth CW OSGR Starter

Category
Excavator Starter Motors
Catalog ID
74586975
Photo views
3

Before ordering

Confirm these details

  • Confirm voltage and power rating against the original starter nameplate.
  • Compare mounting-hole pattern, flange position and overall body orientation.
  • Confirm pinion tooth count and rotation where those values are specified.
  • Verify the engine model and machine serial range before ordering.

Machine fitment

Compatible model references

8 model references

  • Verified Toyota lift-truck application: 2SG-7 with 4P engine, 1980-1992
  • Published 3-series lift trucks: 3FG / 3FGC / 3SG families with 2F, 4Y, 5P and 5R engines
  • Published 4-series lift trucks: 4FG family with 4P, 5P and 5R engines
  • Published 5-series lift trucks: 5FG / 5FGE / 5FGL families with 3F, 4P and 4Y engines
  • Published 6-series lift trucks: 6FG / 6FGC / 6FGL families with 4Y engines
  • Additional published application: Toyota 7FGCSU20 with 4Y engine, 1993-2001
  • Published Toyota road vehicles: Celica 2.4L 1984-1985; 4Runner 2.4L 1984-1993; Pickup 2.4L 1984-1991
  • Fitment limitation: Toyota 5L is not verified; confirm complete number, engine, flange, pinion and terminal layout before shipment

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about 028000-9270

Which machines use 028000-9270?

Recorded compatible model references include Verified Toyota lift-truck application: 2SG-7 with 4P engine, 1980-1992, Published 3-series lift trucks: 3FG / 3FGC / 3SG families with 2F, 4Y, 5P and 5R engines, Published 4-series lift trucks: 4FG family with 4P, 5P and 5R engines, Published 5-series lift trucks: 5FG / 5FGE / 5FGL families with 3F, 4P and 4Y engines, Published 6-series lift trucks: 6FG / 6FGC / 6FGL families with 4Y engines, Additional published application: Toyota 7FGCSU20 with 4Y engine, 1993-2001, Published Toyota road vehicles: Celica 2.4L 1984-1985; 4Runner 2.4L 1984-1993; Pickup 2.4L 1984-1991, Fitment limitation: Toyota 5L is not verified; confirm complete number, engine, flange, pinion and terminal layout before shipment. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for 028000-9270?

Documented direct interchanges: 128000-1250 / 128000-1251 / 128000-1252. Formatting aliases for the same number: 0280009270.

How do I confirm 028000-9270 before ordering?

Confirm voltage and power rating against the original starter nameplate. Compare mounting-hole pattern, flange position and overall body orientation. Confirm pinion tooth count and rotation where those values are specified. Send clear photos of the original unit and connector layout when requesting a quote.
