Starter Motors

0001223507 Starter Motor for Claas Elios 210

Q: What numbers are documented for 0001223507?

Primary Manufacturer Part Number: 0001223507. Interchange Reference: 254967M. Interchange Reference: 500.559.103. Interchange Reference: 504015749. Interchange Reference: 6010467. Interchange Reference: 6021122. Interchange Reference: CST10467. Interchange Reference: CST10467AS. Interchange Reference: CST10467ES. Interchange Reference: CST10467GS. Interchange Reference: CST10467OS. Interchange Reference: CST10467RS. Relationship labels distinguish formatting aliases, direct interchanges, remanufactured references and related assemblies.

Q: How do I confirm 0001223507 before ordering?

Match the complete part number, compare the connector or mounting arrangement with the product photos, and confirm the machine or engine model and serial range. Send clear photos of the original unit when requesting a quote.

0001223507 Starter Motor for Claas Elios 210, OEM/reference 0001223507, 12V 2.60kW 10T CW Starter Motor, product view 1

1 / 2

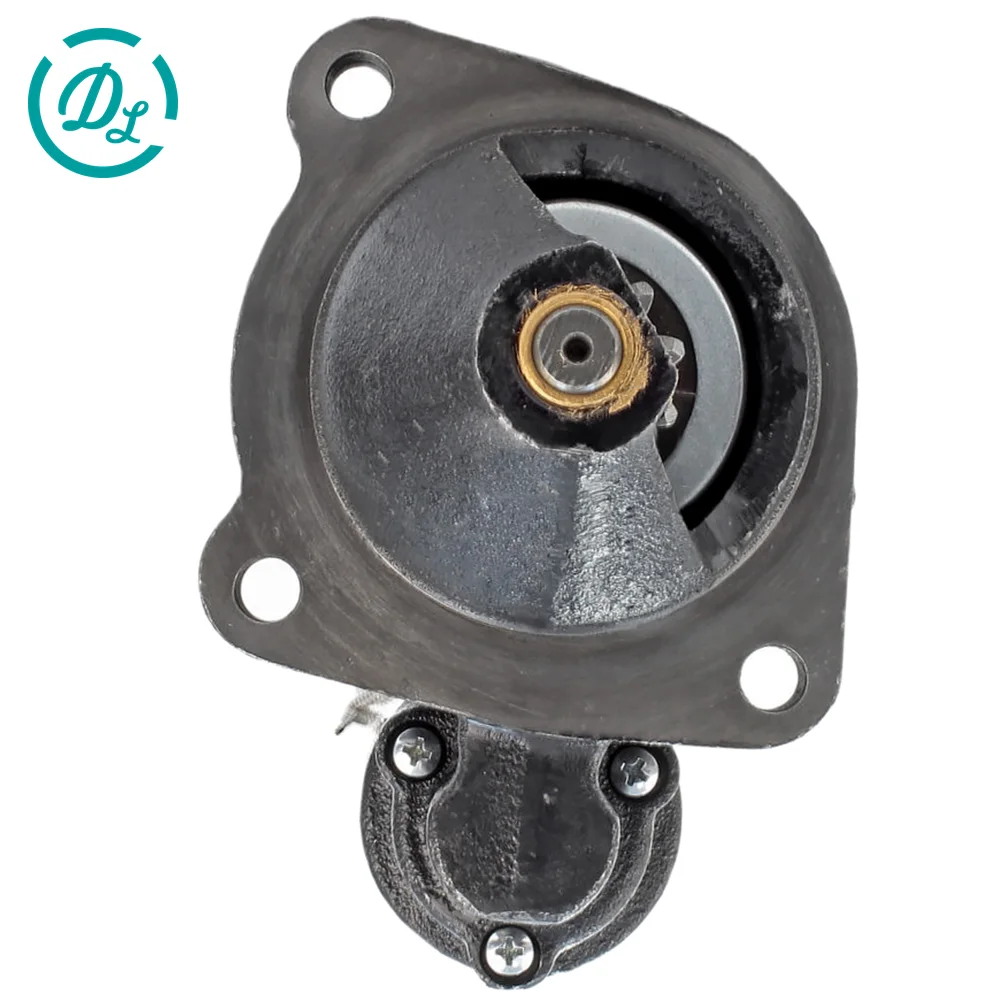

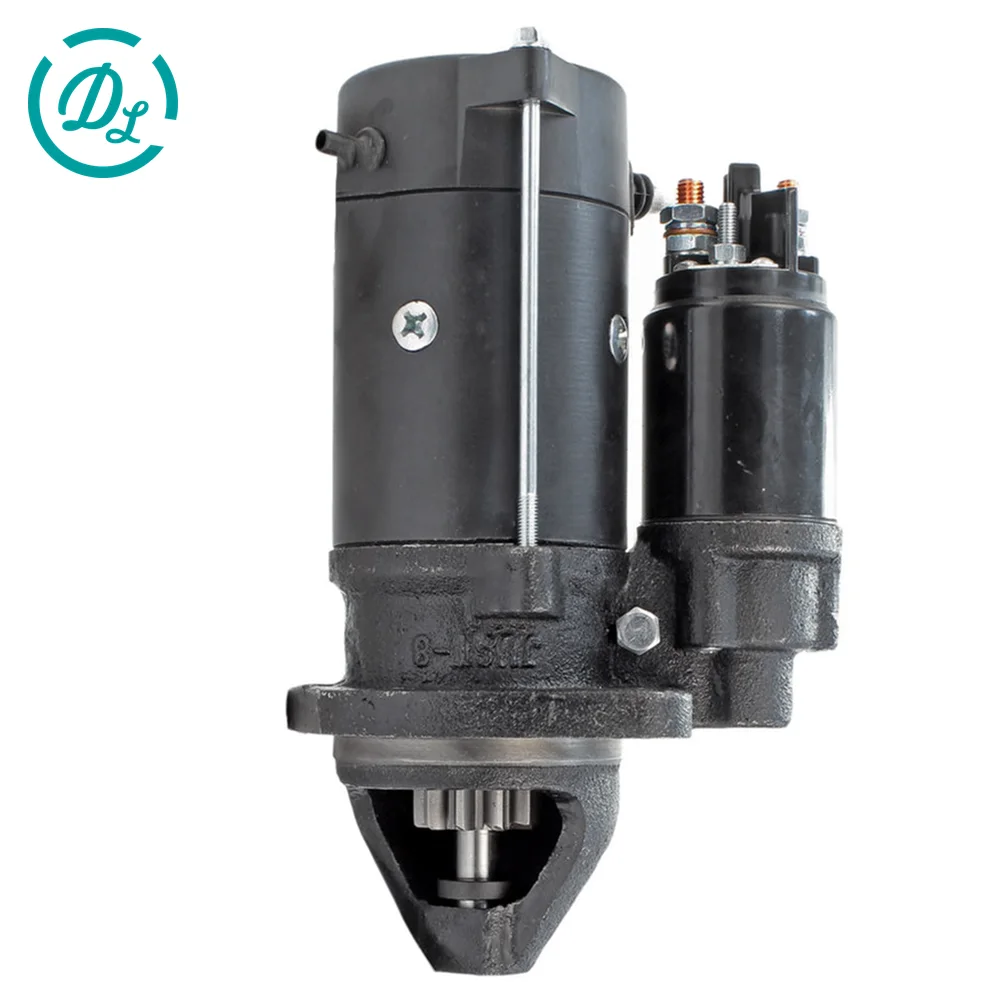

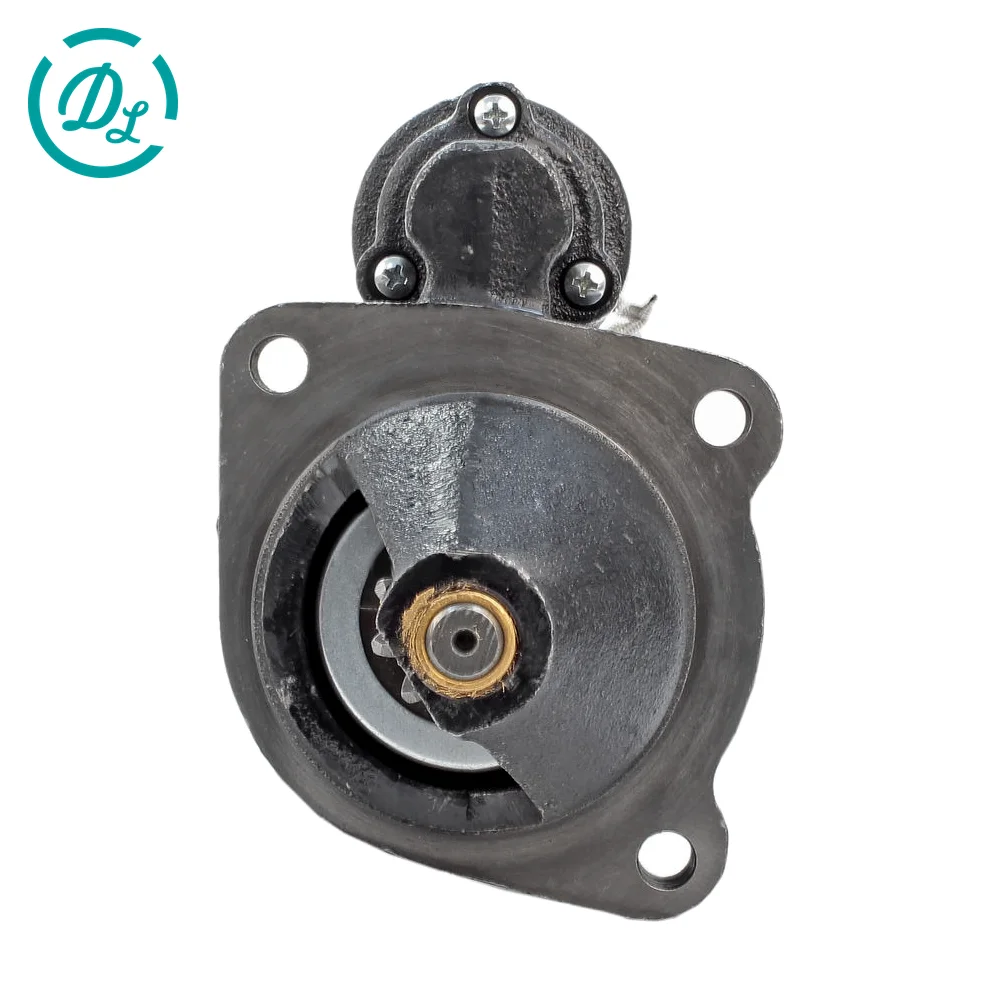

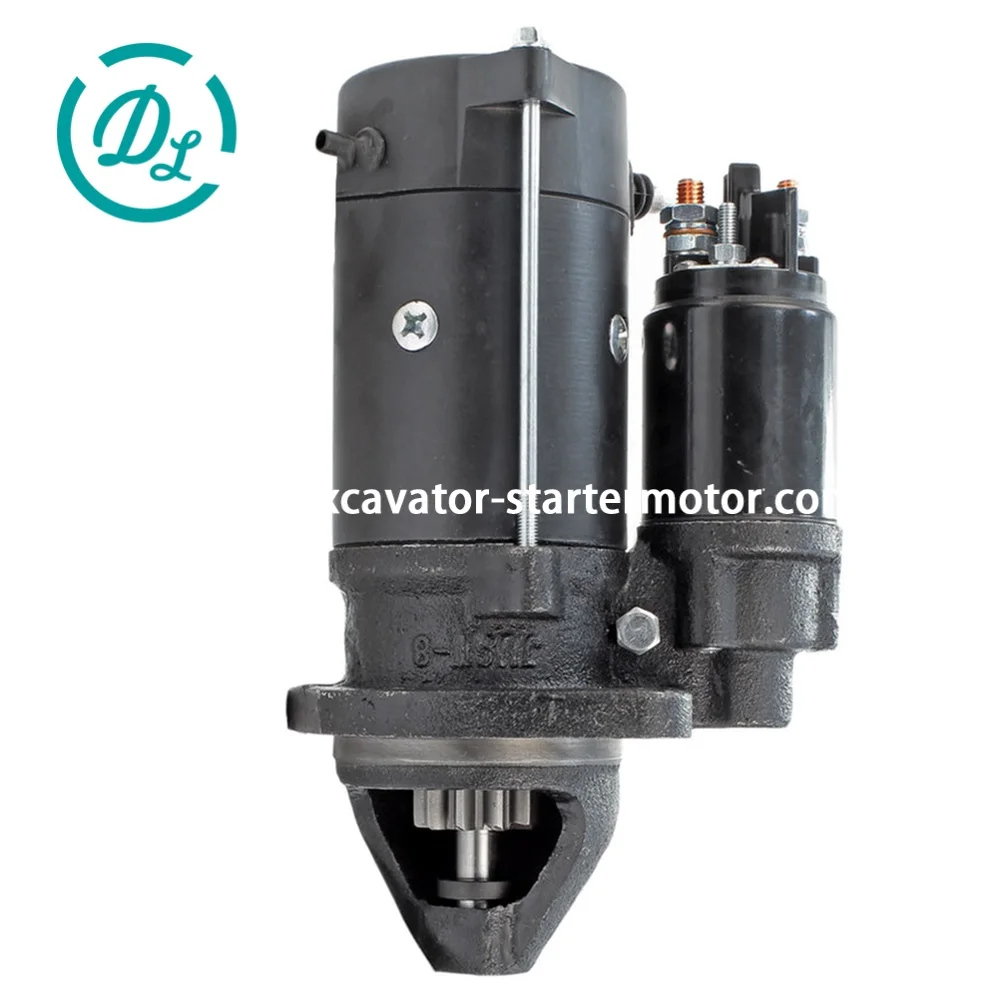

2 product photos · Swipe on mobile, or hover and select a thumbnail.

OEM / reference0001223507

Specification12V 2.60kW 10T CW Starter Motor

Catalog ID68216726

Product Type: Starter Motor
Product Brand: EexcavaStart
Replacement Family: BOSCH
OE Reference: 0001223507
Voltage [ V ]: 12
Power [ kW ]: 2.60
Rotation: CW
Size A [ mm ]: 89.00
Size B [ mm ]: 27.50
No./teeth [ qty. ]: 10
No./mount. holes [ qty. ]: 3
No./mount. holes with thread [ qty. ]: 0
L.1 [ mm ]: 284.00
O.1 [ mm ]: 90.00
O.2 [ mm ]: 127.00
O.3 [ mm ]: 90.00
C.1 [ mm ]: 11.00
C.2 [ mm ]: 11.00
C.3 [ mm ]: 11.00
Item Condition: Aftermarket Part
Part Type: UNIT
Voltage: 12
Teeth: 10
KW: 2.6
Starter Type: PLGR
Fits: IVECO

Dimension codes identify measurement points on a matching technical drawing; they are not universal dimension names. Request the drawing or measurement-point confirmation for this reference before comparing your original unit.

Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Quotation details: MOQ, availability, lead time, item condition (new or remanufactured) and warranty coverage must be confirmed in your quotation before ordering.

Part-number relationships

Relationship	Reference family	Number
Primary Manufacturer Part Number	BOSCH	0001223507
Cross-reference (fitment check required)	KUHNER	254967M
Cross-reference (fitment check required)	WAI	500.559.103
Cross-reference (fitment check required)	IVECO	504015749
Cross-reference (fitment check required)	SANDO	6010467
Cross-reference (fitment check required)	SANDO	6021122
Cross-reference (fitment check required)	CASCO	CST10467
Cross-reference (fitment check required)	CASCO	CST10467AS
Cross-reference (fitment check required)	CASCO	CST10467ES
Cross-reference (fitment check required)	CASCO	CST10467GS
Cross-reference (fitment check required)	CASCO	CST10467OS
Cross-reference (fitment check required)	CASCO	CST10467RS
Cross-reference (fitment check required)	CASCO	CST21122
Cross-reference (fitment check required)	CASCO	CST21122AS
Cross-reference (fitment check required)	CASCO	CST21122ES
Cross-reference (fitment check required)	CASCO	CST21122GS
Cross-reference (fitment check required)	CASCO	CST21122OS
Cross-reference (fitment check required)	CASCO	CST21122RS
Cross-reference (fitment check required)	DELCO	DRS0029
Cross-reference (fitment check required)	GHIBAUDI	SG9047
Cross-reference (fitment check required)	3EFFE	STRS917
Cross-reference (fitment check required)	WAI	UNIT BOM 920-707
Cross-reference (fitment check required)	ANDEL	ANM12249X
Cross-reference (fitment check required)	ELECTROLOG	STR1721
Cross-reference (fitment check required)	STARDAX	STX210072
Cross-reference (fitment check required)	WAI	S132.665
Cross-reference (fitment check required)	WAI	S144.148
Cross-reference (fitment check required)	AUTO MAGNETO	AM-2583B
Cross-reference (fitment check required)	Claas	0001223507
Cross-reference (fitment check required)	Claas	504015749
Cross-reference (fitment check required)	Claas	50438820
Cross-reference (fitment check required)	Claas	87583927
Cross-reference (fitment check required)	Ford/New Holland	84208918
Cross-reference (fitment check required)	Ford/New Holland	87398251
Cross-reference (fitment check required)	ARROWHEAD	SBO0346
Cross-reference (fitment check required)	ARROWHEAD	410-24336
Cross-reference (fitment check required)	ARROWHEAD	IS1189
Cross-reference (fitment check required)	ARROWHEAD	MAH-MS24
Cross-reference (fitment check required)	ARROWHEAD	MS625
Search Format Alias	Formatting variant only	0-001-223-507
Cross-reference (fitment check required)	LETRIKA (ISKRA) AFTERMARKET	IS 1189
Cross-reference (fitment check required)	MAHLE	MAH-MS24
Cross-reference (fitment check required)	MAHLE	MS625

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number

0001223507

Formatting alias

0-001-223-507

Cross-reference (fitment check required)

254967M
500.559.103
504015749
6010467
6021122
CST10467
CST10467AS
CST10467ES
CST10467GS
CST10467OS
CST10467RS
CST21122
CST21122AS
CST21122ES
CST21122GS
CST21122OS
CST21122RS
DRS0029
SG9047
STRS917
UNIT BOM 920-707
ANM12249X
STR1721
STX210072
S132.665
S144.148
AM-2583B
0001223507
50438820
87583927
84208918
87398251
SBO0346
410-24336
IS1189
MAH-MS24
MS625
IS 1189

Formatting aliases are the same number written differently. Cross-references require a specification and fitment check; they do not by themselves confirm direct interchangeability. Related assemblies and remanufactured numbers are separate relationship types.

Product summary

12V 2.60kW 10T CW Starter Motor

Category: Starter Motors
Catalog ID: 68216726
Photo views: 2

Before ordering

Confirm these details

Confirm voltage and power rating against the original starter nameplate.
Compare mounting-hole pattern, flange position and overall body orientation.
Confirm pinion tooth count and rotation where those values are specified.
Verify the engine model and machine serial range before ordering.

Machine fitment

Compatible model references

86 model references

CASE IH FARMALL 105C: Years: 09.2012 -
CASE IH FARMALL 106U: Years: 09.2012 -
CASE IH FARMALL 115U: Years: 09.2012 -
CASE IH FARMALL 55C, 65C: Years: 09.2012 -
CASE IH FARMALL 65A, 75A: Years: 09.2012 -
CASE IH QUANTUM 65C, 75C: Years: 01.2009 -
CASE IH QUANTUM 65V, 75V: Years: 01.2009 -
CASE IH FARMALL 75C: Years: 09.2012 -
CASE IH QUANTUM 75F, 85F: Years: 01.2009 -
CASE IH QUANTUM 75N, 85N: Years: 01.2009 -
CASE IH FARMALL 85A: Years: 09.2012 -
CASE IH FARMALL 85C, 95C: Years: 09.2012 -
CASE IH QUANTUM 85V: Years: 01.2009 -
CASE IH FARMALL 95U: Years: 09.2012 -
CASE IH JX-SERIES JX 70: Years: 01.2007 - 12.2008
CASE IH JX-SERIES JX 80, JX 90: Years: 01.2007 - 12.2008
CLAAS NEXOS 210: Years: 11.2009 -
CLAAS ELIOS 210: Years: 01.2012 -
CLAAS ELIOS 220: Years: 01.2012 -
CLAAS NEXOS 220: Years: 11.2009 -
CLAAS ELIOS 230: Years: 01.2012 -
CLAAS NEXOS 230: Years: 11.2009 -
CLAAS ELIOS 240: Years: 01.2012 -
NEW HOLLAND TD 5 5.105: Years: 11.2011 -
NEW HOLLAND TD 5 5.115: Years: 11.2011 -
NEW HOLLAND TD 5 5.85: Years: 11.2011 -
NEW HOLLAND TD 5 5.95: Years: 11.2011 -
NEW HOLLAND T4 (PowerStar) T4.115: Years: 06.2011 -
NEW HOLLAND T4 (PowerStar) T4.55, T4.65: Years: 06.2011 -
NEW HOLLAND T4 (PowerStar) T4.65V, T4.75V: Years: 06.2011 -
NEW HOLLAND T4 (PowerStar) T4.75: Years: 06.2011 -
NEW HOLLAND T4 (PowerStar) T4.75, T4.85: Years: 06.2011 -
NEW HOLLAND T4 (PowerStar) T4.75F, T4.85F: Years: 06.2011 -
NEW HOLLAND T4 (PowerStar) T4.75N: Years: 06.2011 -
NEW HOLLAND T4 (PowerStar) T4.95, T4.105: Years: 06.2011 -
NEW HOLLAND T4 (PowerStar) T4.95V, T4.105V: Years: 06.2011 -
NEW HOLLAND T4000 T4020: Years: 06.2008 -
NEW HOLLAND T4000 T4030: Years: 06.2008 -
NEW HOLLAND T4000 T4040: Years: 06.2008 -
NEW HOLLAND T4000 T4050: Years: 06.2008 -
NEW HOLLAND T5 T5.95, T5.105, T5.115: Years: 11.2011 -
NEW HOLLAND T5000 T5030: Years: 06.2008 -
NEW HOLLAND T5000 T5040: Years: 06.2008 -
NEW HOLLAND T5000 T5050: Years: 06.2008 -
NEW HOLLAND T5000 T5060: Years: 06.2008 -
NEW HOLLAND T5000 T5070: Years: 06.2008 -
NEW HOLLAND T6 T6.150: Years: 10.2012 -
NEW HOLLAND TD4000F TD4020F: Years: 10.2011 -
NEW HOLLAND TD4000F TD4030F: Years: 10.2011 -
NEW HOLLAND TD4000F TD4040F: Years: 10.2011 -
NEW HOLLAND TL-A TL100A: Years: 01.2004 -
NEW HOLLAND TL-A TL70A: Years: 01.2004 -
NEW HOLLAND TL-A TL80A: Years: 01.2004 -
NEW HOLLAND TL-A TL90A: Years: 01.2004 -
NEW HOLLAND TN-A TN85DA: Years: 01.2004 - 12.2008
NEW HOLLAND TN-A TN85SA: Years: 01.2004 - 12.2008
STEYR KOMPAKT 4055 S, 4065 S: Years: 06.2011 -
STEYR KOMPAKT 4075, 4085: Years: 06.2011 -
STEYR KOMPAKT 4095, 4105, 4115: Years: 06.2011 -
STEYR MULTI 4095, 4105, 4115: Years: 10.2012 -
Claas Elios 210: Equipment type: Tractor
Claas Elios 220: Equipment type: Tractor
Claas Elios 230: Equipment type: Tractor
Claas Nexos 210: Equipment type: Tractor
Claas Nexos 220: Equipment type: Tractor
Claas Nexos 230: Equipment type: Tractor
Case IH Farmall 65C: Equipment type: Tractor; Engine: 4-195 Diesel; Year: 2008 - On
Case IH Farmall 70: Equipment type: Tractor; Engine: 4-238 Diesel; Year: 2009 - On
Case IH Farmall 75C: Equipment type: Tractor; Engine: 4-195 Diesel; Year: 2008 - On
Case IH Farmall 75N: Equipment type: Tractor; Engine: 4-195 Diesel; Year: 2009 - On
Case IH Farmall 80: Equipment type: Tractor; Engine: 4-238 Diesel; Year: 2009 - On
NEW HOLLAND TK4020F: Equipment type: Crawler Tractors; Engine: 3.2L 4cyl 65HP Diesel; Year: 2009 - On
NEW HOLLAND TK4020V: Equipment type: Crawler Tractors; Engine: 3.2L 4cyl 65HP Diesel; Year: 2009 - On
NEW HOLLAND TK4030: Equipment type: Crawler Tractors; Engine: 3.2L 4cyl 76HP Diesel; Year: 2009 - On
NEW HOLLAND TK4030F: Equipment type: Crawler Tractors; Engine: 3.2L 4cyl 76HP Diesel; Year: 2009 - On
NEW HOLLAND TK4030V: Equipment type: Crawler Tractors; Engine: 3.2L 4cyl 76HP Diesel; Year: 2009 - On
NEW HOLLAND TK4040: Equipment type: Crawler Tractors; Engine: 3.2L 4cyl 88HP Diesel; Year: 2009 - On
NEW HOLLAND TK4040M: Equipment type: Crawler Tractors; Engine: 3.2L 4cyl 88HP Diesel; Year: 2009 - On
NEW HOLLAND T4020: Equipment type: Tractor; Engine: 3.2L 4cyl 64HP Diesel; Year: 2008 - On
NEW HOLLAND T4020V: Equipment type: Tractor; Engine: 3.2L 4cyl 64HP Diesel; Year: 2008 - On
NEW HOLLAND T4030: Equipment type: Tractor; Engine: 3.2L 4cyl 76HP Diesel; Year: 2008 - On
NEW HOLLAND T4030F: Equipment type: Tractor; Engine: 3.2L 4cyl 76HP Diesel; Year: 2008 - On
NEW HOLLAND T4030V: Equipment type: Tractor; Engine: 3.2L 4cyl 76HP Diesel; Year: 2008 - On
NEW HOLLAND T4040F: Equipment type: Tractor; Engine: 3.2L 4cyl 87HP Diesel; Year: 2008 - On
NEW HOLLAND T4040V: Equipment type: Tractor; Engine: 3.2L 4cyl 87HP Diesel; Year: 2008 - On
NEW HOLLAND TD5010: Equipment type: Tractor; Engine: 3.2L 4cyl 60HP Diesel; Year: 2008 - On

Fitment / evidence notes

Fitment limitation: Confirm the original part number, electrical rating, pinion or pulley, terminals, mounting geometry and equipment serial range before ordering

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about 0001223507

Which machines use 0001223507?

Recorded compatible model references include CASE IH FARMALL 105C: Years: 09.2012 -, CASE IH FARMALL 106U: Years: 09.2012 -, CASE IH FARMALL 115U: Years: 09.2012 -, CASE IH FARMALL 55C, 65C: Years: 09.2012 -, CASE IH FARMALL 65A, 75A: Years: 09.2012 -, CASE IH QUANTUM 65C, 75C: Years: 01.2009 -, CASE IH QUANTUM 65V, 75V: Years: 01.2009 -, CASE IH FARMALL 75C: Years: 09.2012 - and 78 additional models shown on this page. Recorded fitment/evidence notes: Fitment limitation: Confirm the original part number, electrical rating, pinion or pulley, terminals, mounting geometry and equipment serial range before ordering. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for 0001223507?

Cross-references are listed in the relationship table above. Compare specifications and the original unit before treating a reference as interchangeable. Formatting aliases for the same number: 0-001-223-507.

How do I confirm 0001223507 before ordering?

Confirm voltage and power rating against the original starter nameplate. Compare mounting-hole pattern, flange position and overall body orientation. Confirm pinion tooth count and rotation where those values are specified. Send clear photos of the original unit and connector layout when requesting a quote.
