Excavator Starter Motors
5 product photos · Swipe on mobile, or hover and select a thumbnail.

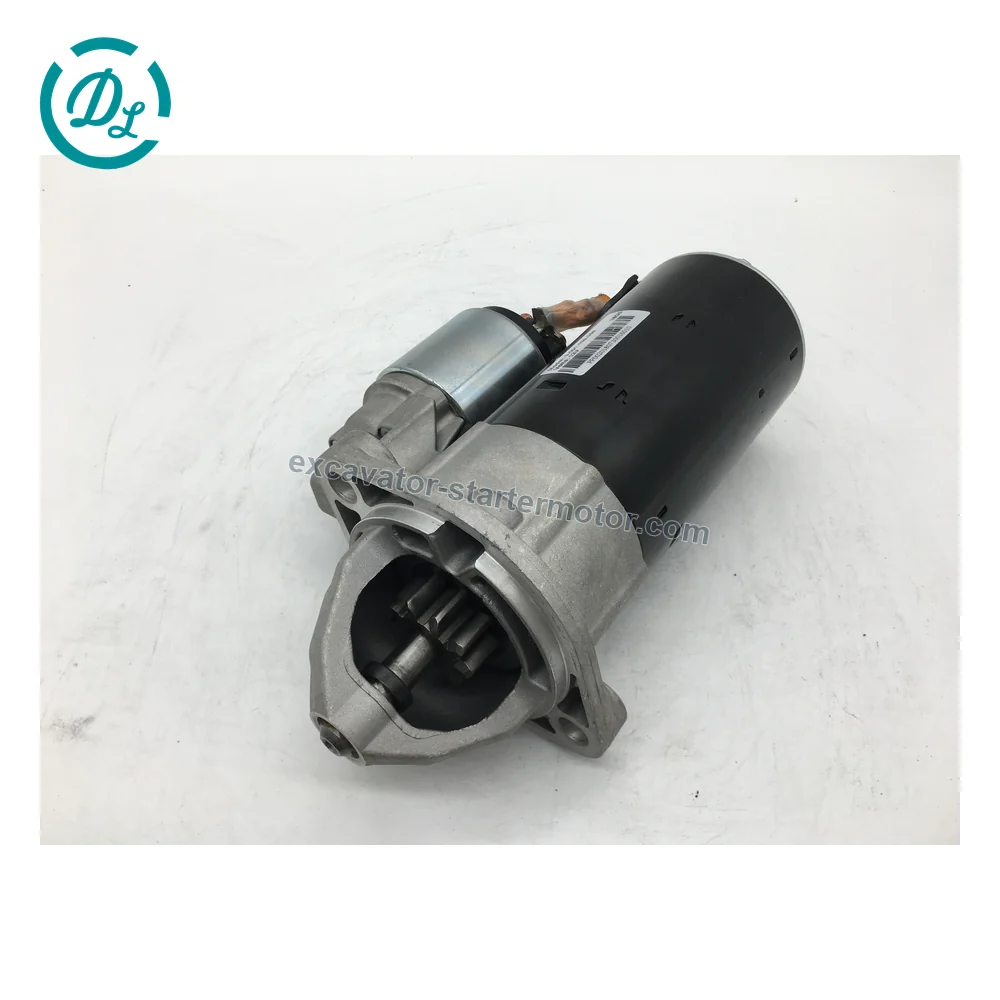

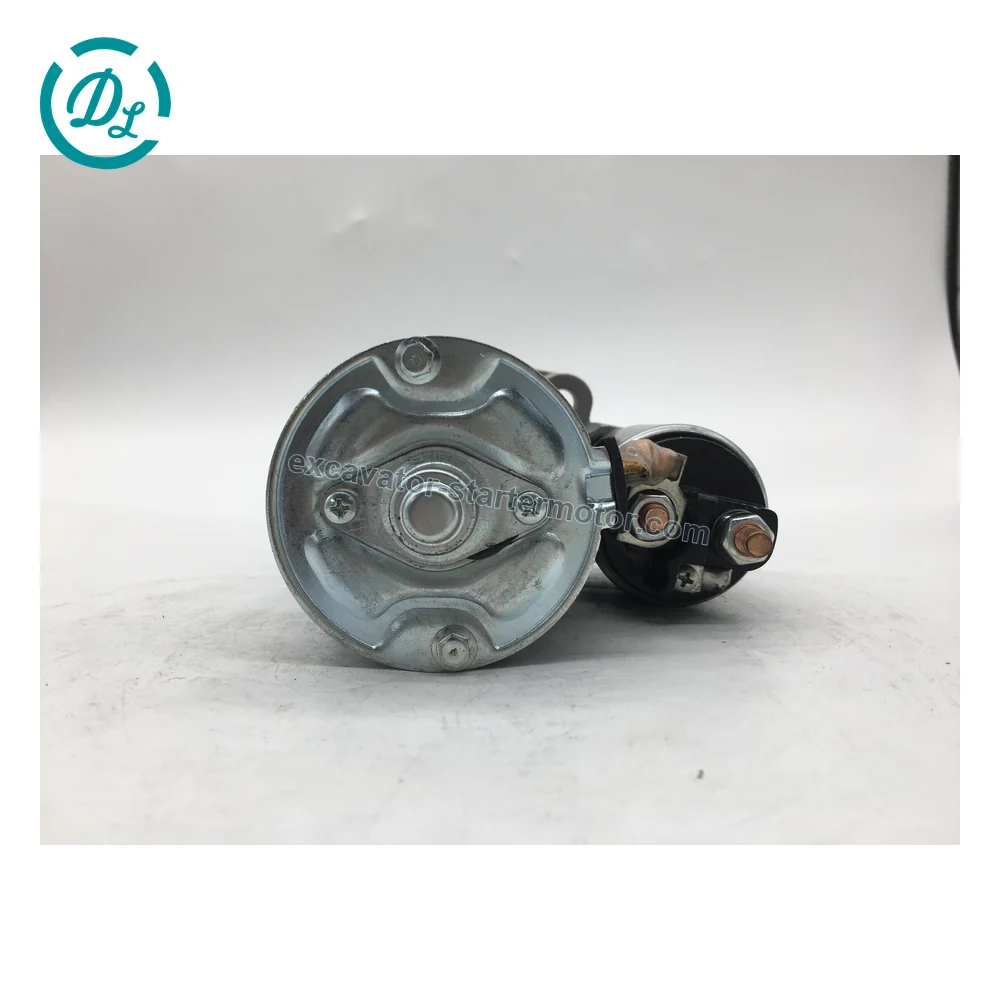

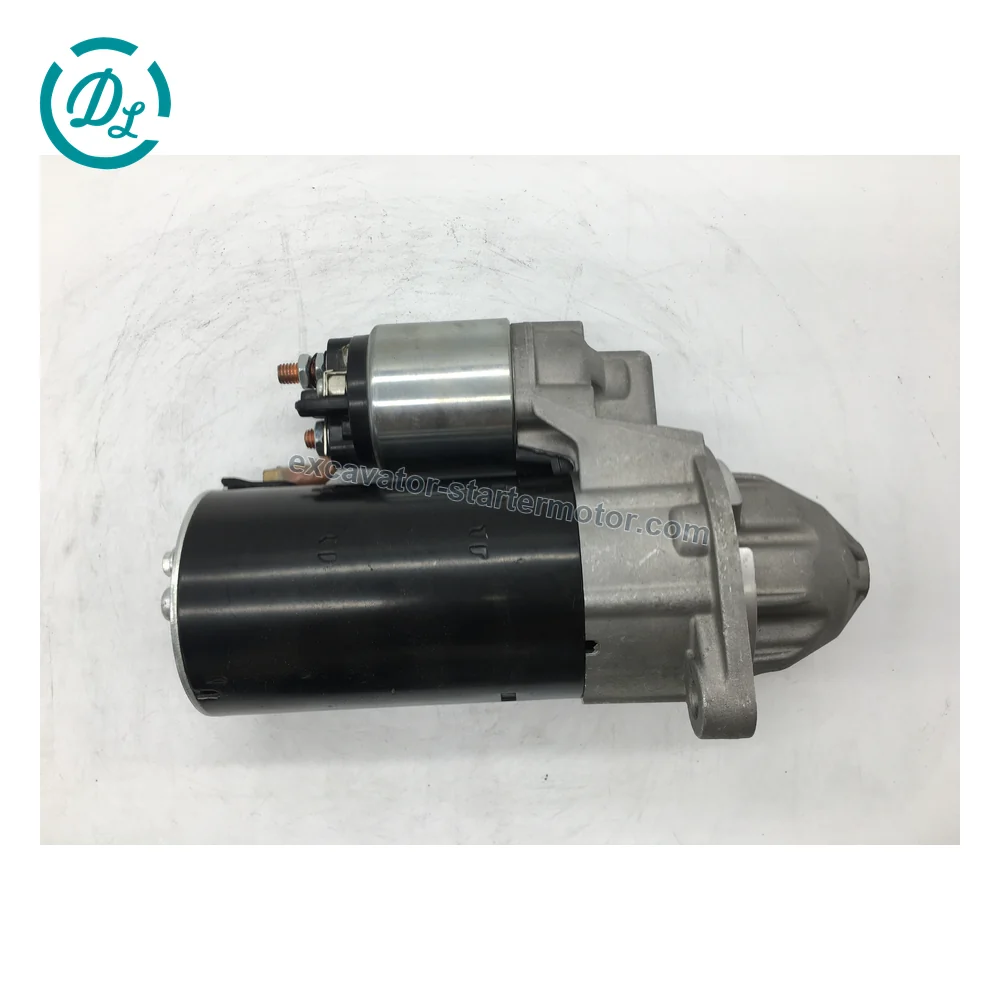

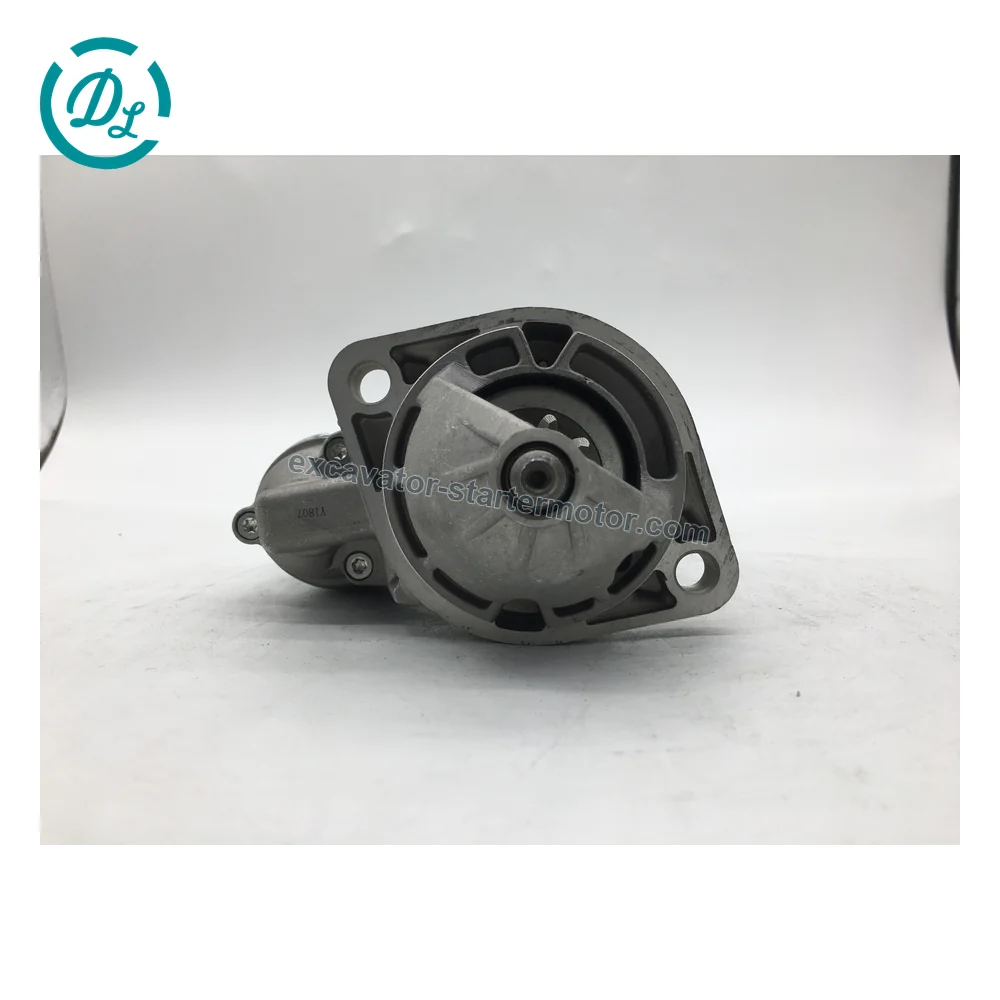

Bosch 0 001 109 356 is a 12V, 2.3kW, 9-tooth clockwise starter published for VM Diesel R754/Karcher HD7/250 and MerCruiser/Cummins-MerCruiser QSD 2.8/4.2 applications. The imported value 36-0-001-109-356 contains a folder sequence prefix and is rejected. Confirm the corrected Bosch number, rating, pinion, two-hole mount, engine variant and serial before ordering.
Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.
| Relationship | Reference family | Number |
|---|---|---|
| Corrected Primary Manufacturer Number | Bosch formatted reference | 0 001 109 356 |
| Compact Search Alias | Same Bosch number without spaces | 0001109356 |
| Rejected Imported Number | Folder sequence prefix; not an interchange | 36-0-001-109-356 |
| Manufacturer Replacement Family | Bosch references | 0 001 109 355 / 0 001 223 022 |
| Equipment Cross-Reference | Mercury reference | 896332191 |
Product fitment guide
Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.
Part identification
Formatting aliases are the same number written differently. Related assemblies and remanufactured numbers are not presented as direct interchanges.
Product summary
Before ordering
Machine fitment
4 model references
Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.
Quick fitment answers
Recorded compatible model references include Published engine: VM Diesel R754, Published equipment: Karcher HD7/250, Published marine engines: MerCruiser/Cummins-MerCruiser QSD 2.8 / QSD 4.2 families, Fitment limitation: Confirm corrected number, rating, pinion, mount, engine variant and serial. Confirm the complete part number and machine serial range before ordering.
Manufacturer number: 0 001 109 355 / 0 001 223 022. Formatting aliases for the same number: 0001109356.
Confirm voltage and power rating against the original starter nameplate. Compare mounting-hole pattern, flange position and overall body orientation. Confirm pinion tooth count and rotation where those values are specified. Send clear photos of the original unit and connector layout when requesting a quote.
