61003202 24V 11-Tooth 39MT Starter for Doosan DX340LCA-DX520LCA

Q: What numbers are documented for 61003202?

Primary Delco Part Number: 61003202. Cummins Equipment Reference Family: 2871253 / 2871257 / 5284083 / 5284084 / 5284085 / 5284086. Doosan Equipment Reference Family: 23061633 / 300516-00020. Mitsubishi Manufacturer Reference Family: M009T83579 / M009T89189. Aftermarket Catalog Number: aftermarket 6837N. Relationship labels distinguish formatting aliases, direct interchanges, remanufactured references and related assemblies.

Q: How do I confirm 61003202 before ordering?

Match the complete part number, compare the connector or mounting arrangement with the product photos, and confirm the machine or engine model and serial range. Send clear photos of the original unit when requesting a quote.

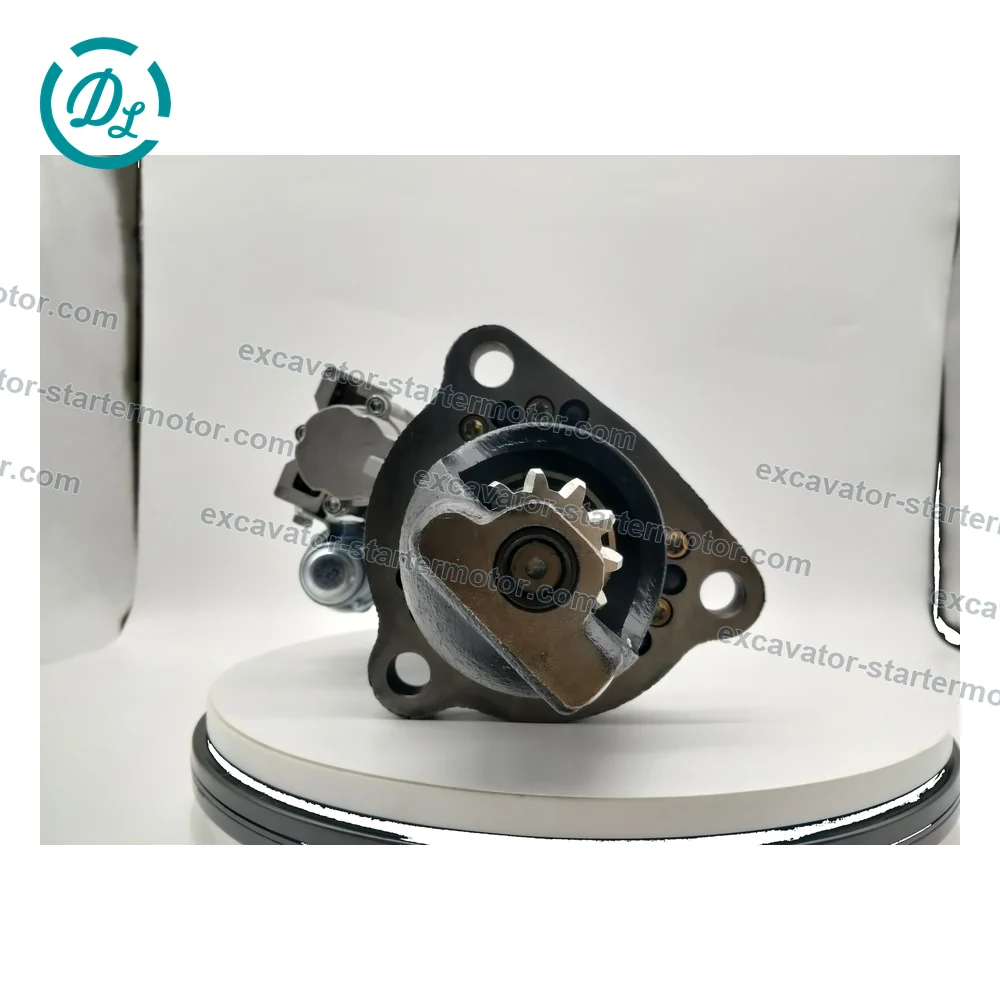

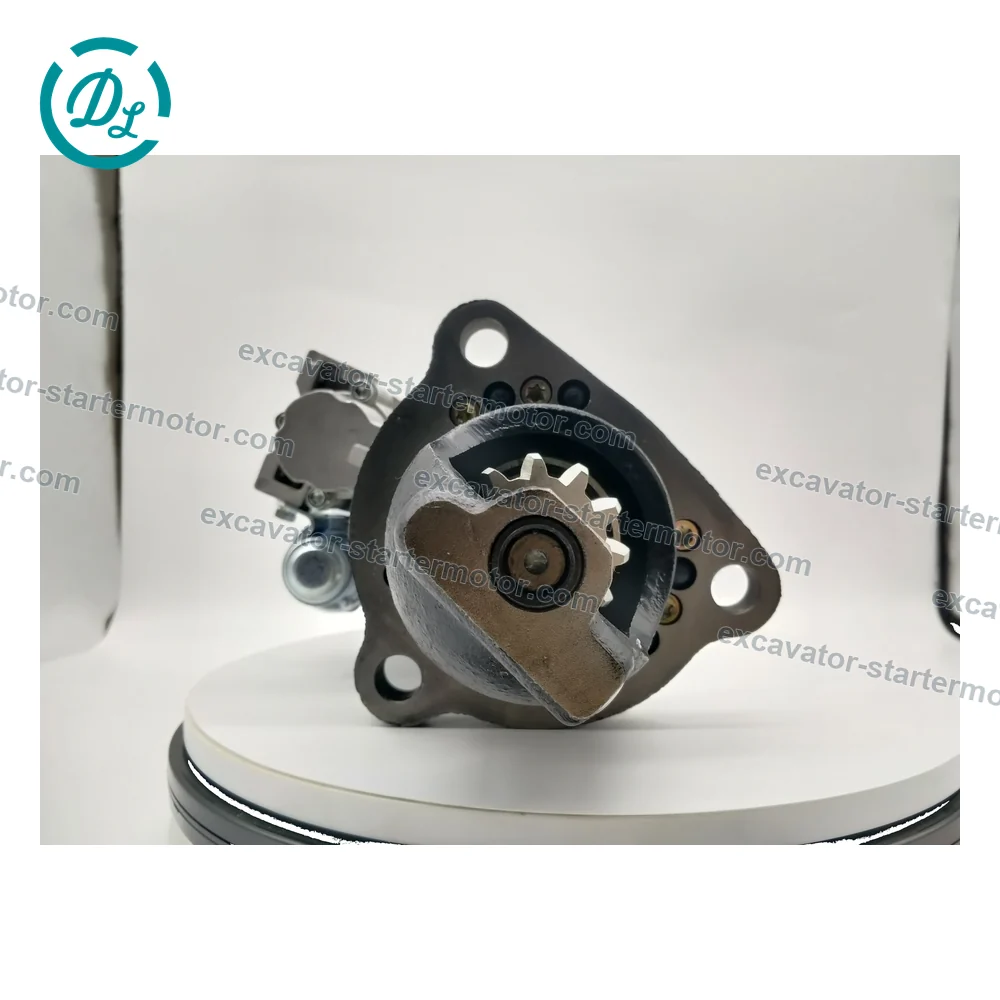

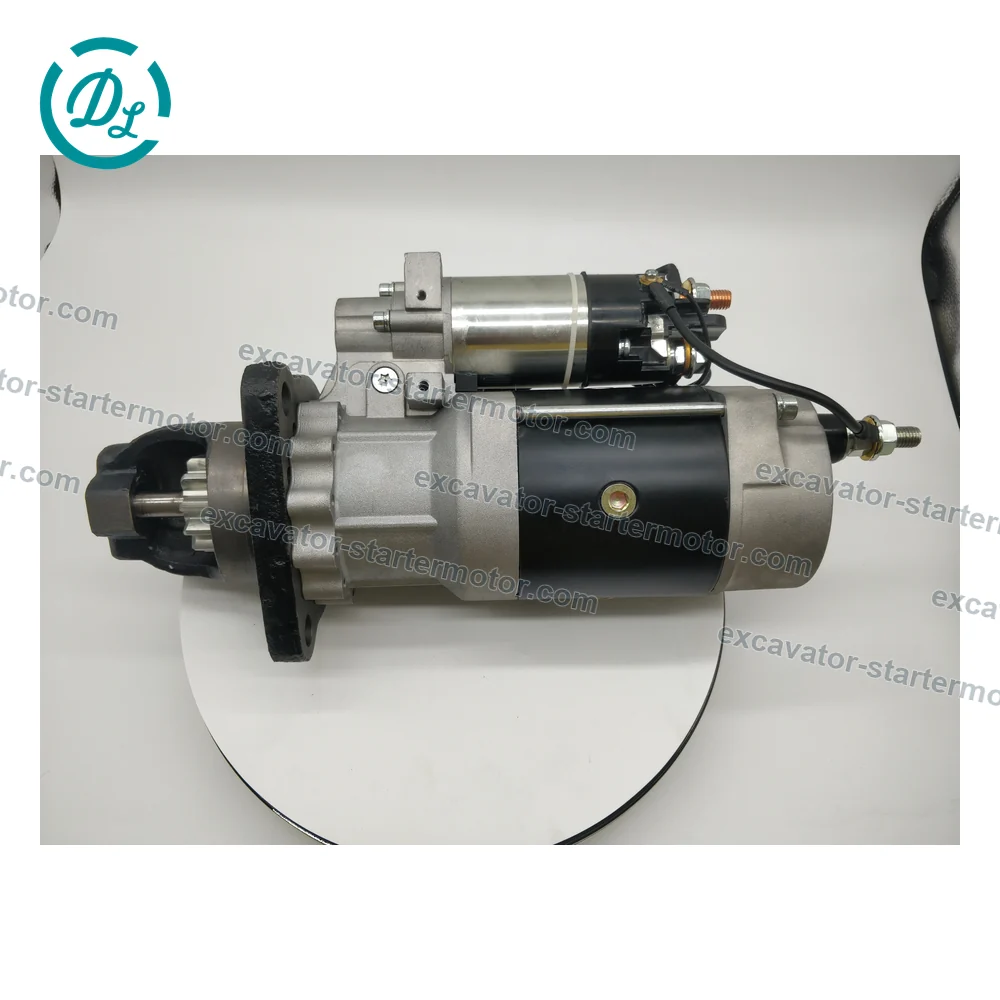

61003202 24V 11-Tooth 39MT Starter for Doosan DX340LCA-DX520LCA, OEM/reference 61003202, Starter Motor, product view 1

1 / 5

5 product photos · Swipe on mobile, or hover and select a thumbnail.

OEM / reference61003202

SpecificationStarter Motor

Catalog ID64470201

Product Type: PLGR starter motor
Voltage: 24V
Pinion Teeth: 11
Rotation: Clockwise (CW)
Design Family: Delco 39MT PLGR
Drive-End Frame: Rotatable
Magnetic Switch: Integral magnetic switch (IMS)
Protection: Over-crank protection (OCP)
Condition: New replacement part

Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Quotation details: MOQ, availability, lead time, item condition (new or remanufactured) and warranty coverage must be confirmed in your quotation before ordering.

Part-number relationships

Relationship	Reference family	Number
Primary Delco Part Number	Official aftermarket replacement-reference entry	61003202
Cummins Equipment Reference Family	Cataloged equipment references	2871253 / 2871257 / 5284083 / 5284084 / 5284085 / 5284086
Doosan Equipment Reference Family	Cataloged equipment references	23061633 / 300516-00020
Mitsubishi Manufacturer Reference Family	Cataloged manufacturer references	M009T83579 / M009T89189
Aftermarket Catalog Number	Official verified product interchange record	aftermarket 6837N

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number

61003202

Manufacturer number

M009T83579 / M009T89189

Other documented relationship

2871253 / 2871257 / 5284083 / 5284084 / 5284085 / 5284086
23061633 / 300516-00020
aftermarket 6837N

Formatting aliases are the same number written differently. Cross-references require a specification and fitment check; they do not by themselves confirm direct interchangeability. Related assemblies and remanufactured numbers are separate relationship types.

Product summary

Starter Motor

Category: Starter Motors
Catalog ID: 64470201
Photo views: 5

Before ordering

Confirm these details

Confirm voltage and power rating against the original starter nameplate.
Compare mounting-hole pattern, flange position and overall body orientation.
Confirm pinion tooth count and rotation where those values are specified.
Verify the engine model and machine serial range before ordering.

Machine fitment

Compatible model references

3 model references

Doosan Equipment: DL420A / DX340LCA / DX480LCA / DX500LCA / DX520LCA
Case IH Examples: STX375 / STX480 / STX500 / STX530
Published Engine Family: Cummins QSX15 and related heavy-duty applications

Fitment / evidence notes

Fitment Limitation: Confirm 61003202, 24V, 11-tooth pinion, rotatable frame, IMS/OCP, terminals and serial range

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about 61003202

Which machines use 61003202?

Recorded compatible model references include Doosan Equipment: DL420A / DX340LCA / DX480LCA / DX500LCA / DX520LCA, Case IH Examples: STX375 / STX480 / STX500 / STX530, Published Engine Family: Cummins QSX15 and related heavy-duty applications. Recorded fitment/evidence notes: Fitment Limitation: Confirm 61003202, 24V, 11-tooth pinion, rotatable frame, IMS/OCP, terminals and serial range. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for 61003202?

Manufacturer number: M009T83579 / M009T89189.

How do I confirm 61003202 before ordering?

Confirm voltage and power rating against the original starter nameplate. Compare mounting-hole pattern, flange position and overall body orientation. Confirm pinion tooth count and rotation where those values are specified. Send clear photos of the original unit and connector layout when requesting a quote.
