Part-number relationships
| Relationship | Reference family | Number |
|---|---|---|
| Primary Cat Part Number | Official pedal-control-group identity | 561-7001 |
| Same-number Formatting Variant | Search alias only | 5617001 |
6 product photos · Select a thumbnail to change the main view.
Excavator Spare Parts
561-7001 Pedal Control Group for Cat 304 305 320 330 GC Equipment
OEM / reference561-7001
SpecificationPedal Control Group
Catalog ID53594926

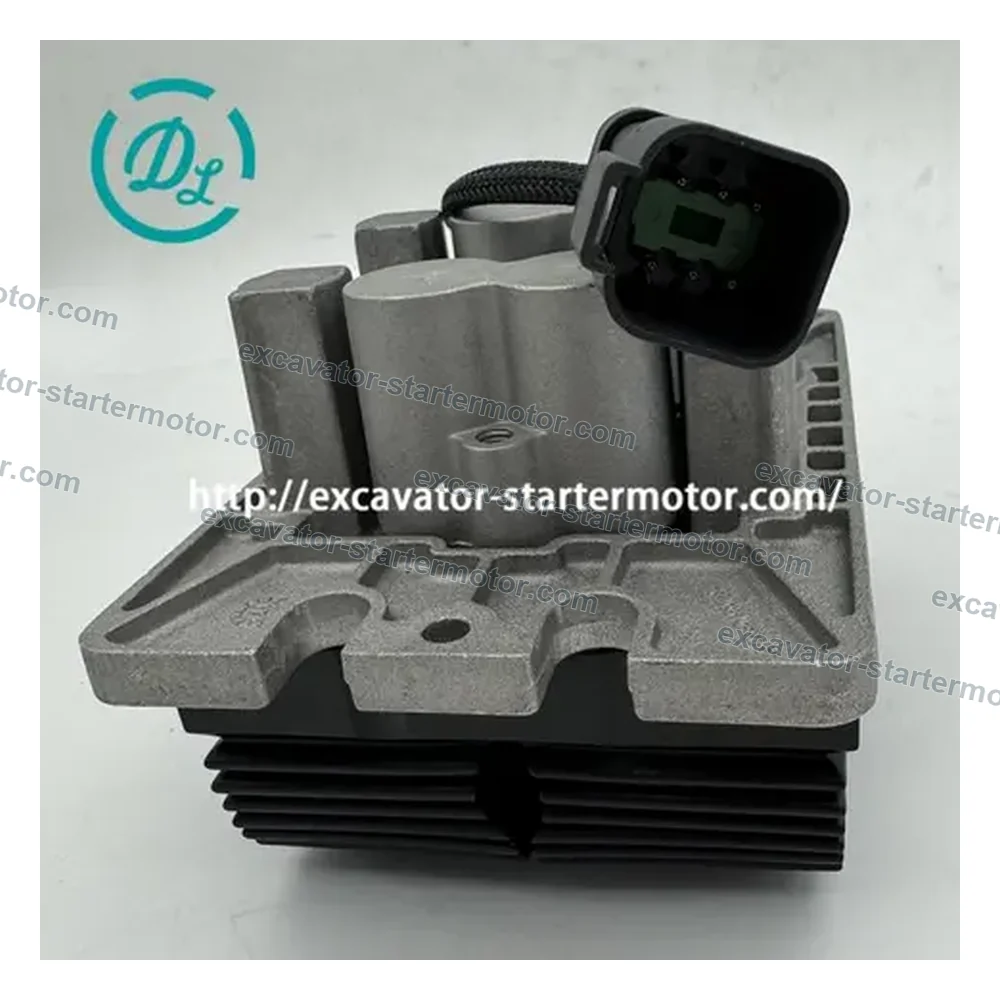

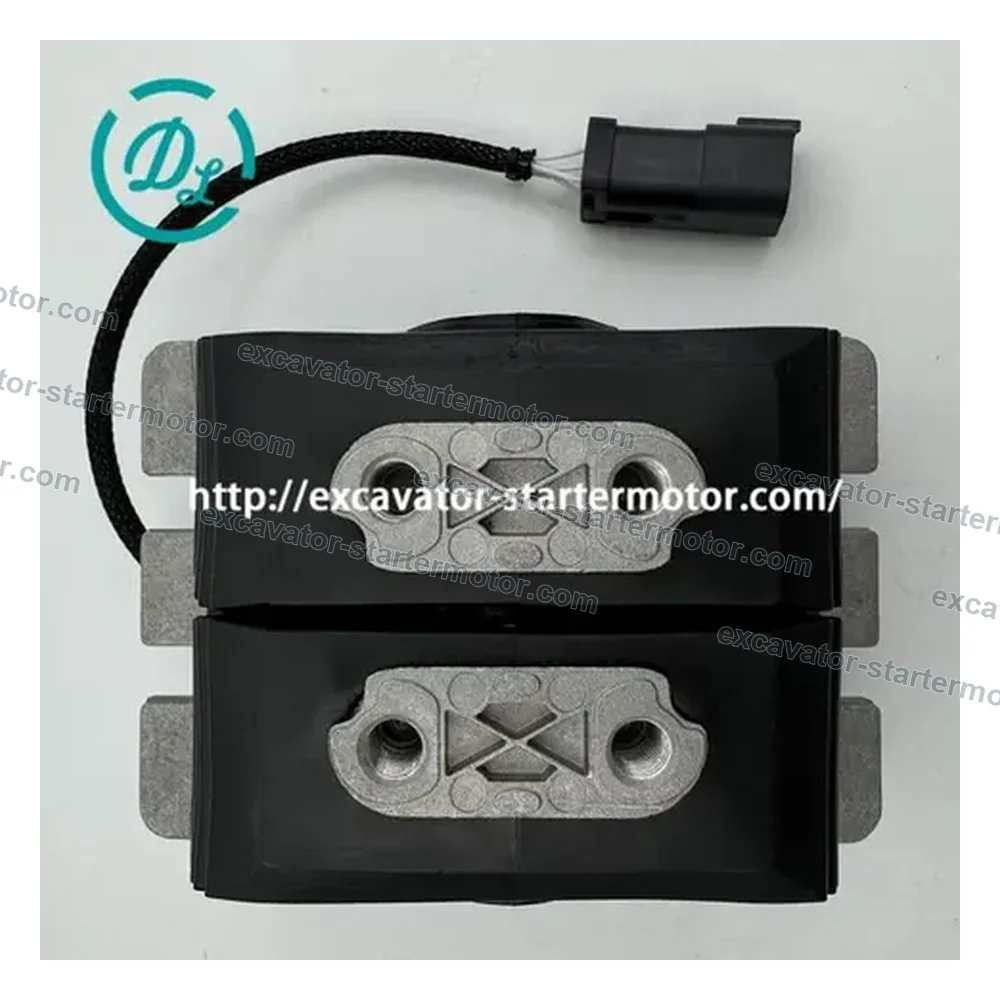

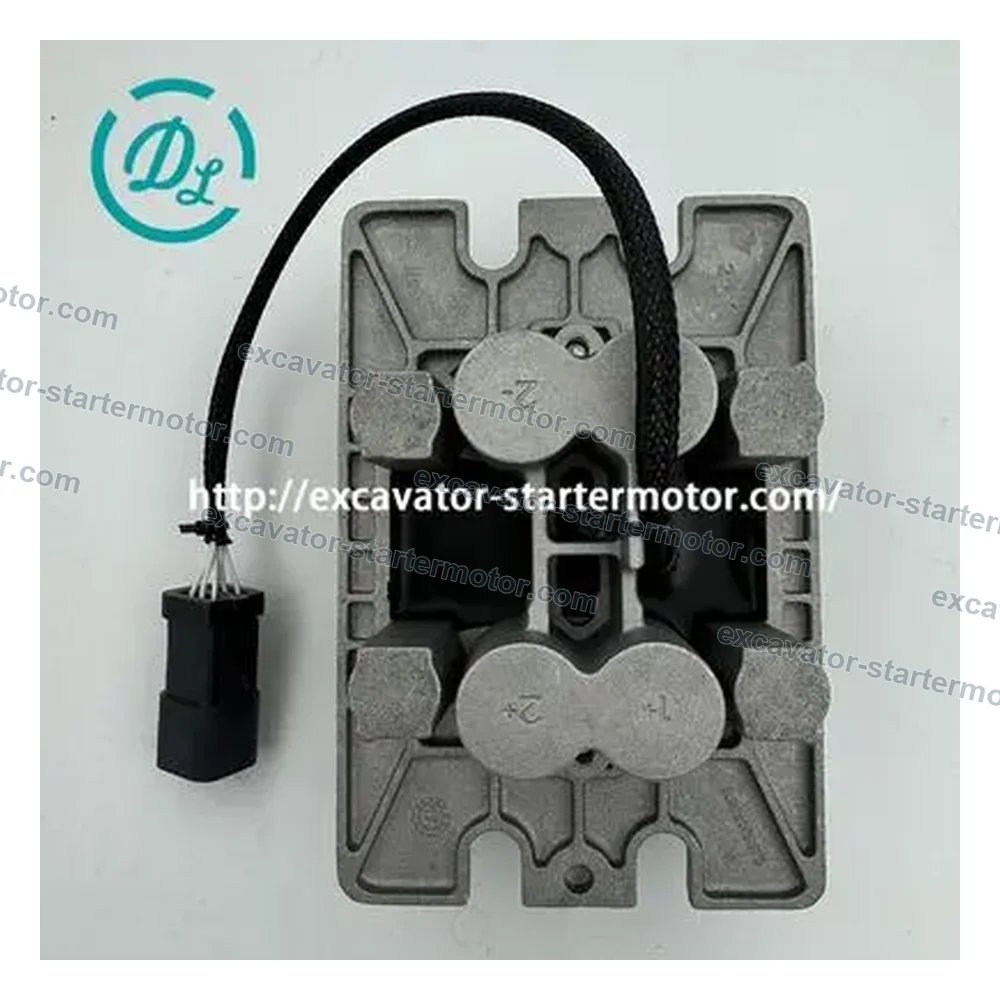

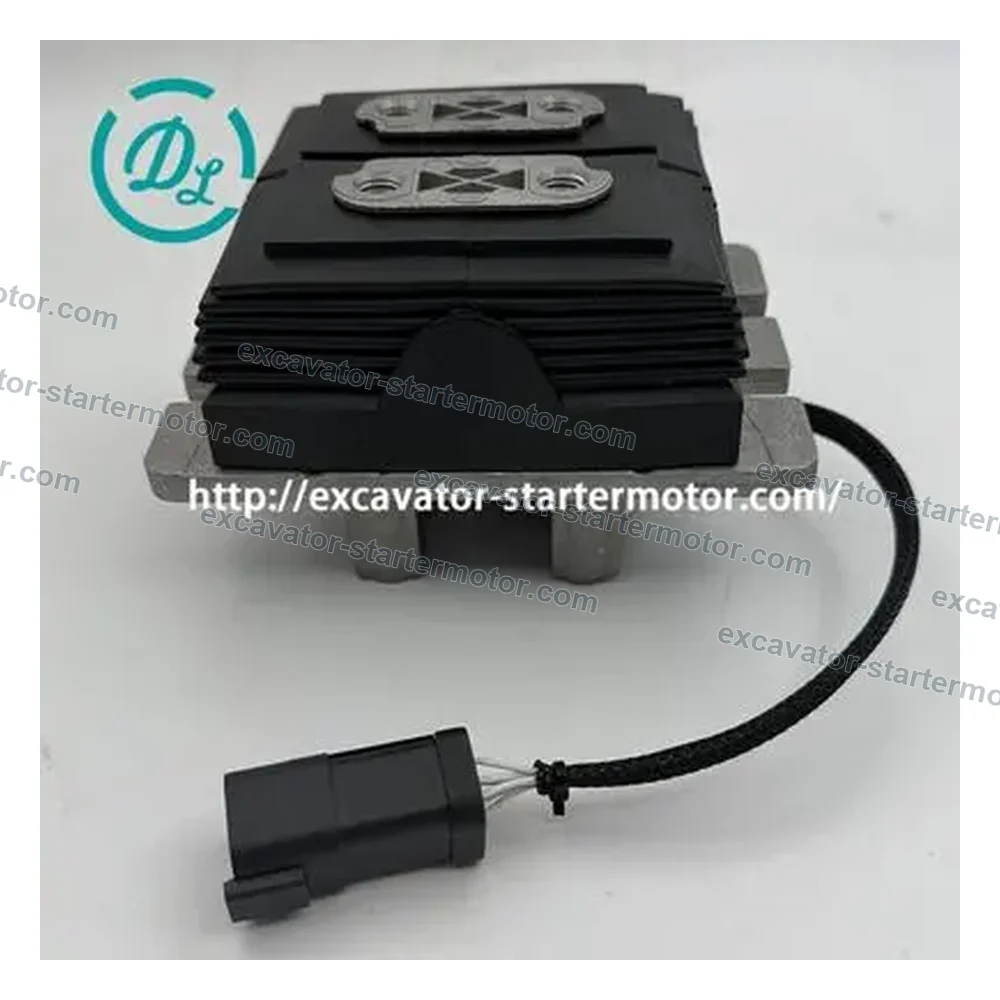

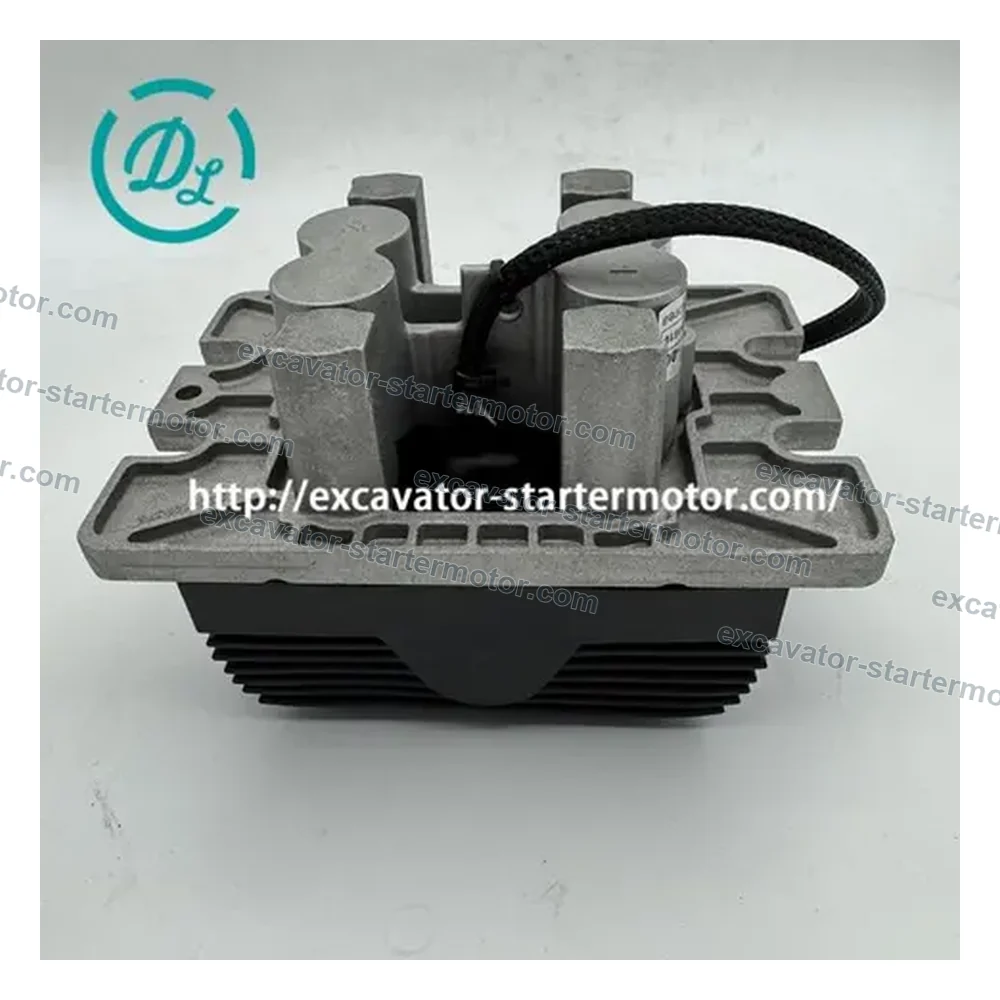

Pedal control group identified by official Cat part number 561-7001. Cat describes a cast-aluminum control housing with boot cover, 4.5-5.5 V input, PWM output and a 6-pin DT connection. The official compatible-model list includes 304, 305, 320, 320 GC, 330 GC, 336 GC, 345 GC and additional excavator families. Six selected exact owned photographs show the housing, twin pedal pads, cable and connector.
Fitment status: Verified · Checked 2026-08-02- Product Type
- Pedal Control Group
- Input Voltage
- 4.5-5.5 V
- Output Signal
- PWM (pulse-width modulated)
- Connector
- 6-pin DT connection
- Housing
- Cast aluminum with boot cover
- Wire Length
- 11.8 in (official Cat specification)
- Overall Size
- 5.9 x 4.0 x 3.8 in (L x W x H, official Cat specification)
- Condition
- New replacement component
Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.
Fitment data verified. Exact-reference evidence is retained in the protected product audit record · Checked 2026-08-02.
Product fitment guide
Part numbers and compatible models
Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.
Part identification
Reference numbers
Primary number
Formatting alias
Formatting aliases are the same number written differently. Related assemblies and remanufactured numbers are not presented as direct interchanges.
Product summary
Pedal Control Group
- Category
- Excavator Spare Parts
- Catalog ID
- 53594926
- Photo views
- 6
Before ordering
Confirm these details
- Match the complete part number on the original component.
- Compare connectors, mounting points and visible dimensions with the product photos.
- Confirm the exact machine or engine model and serial range before ordering.
Machine fitment
Compatible model references
4 model references
Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.
Quick fitment answers
Common questions about 561-7001
Which machines use 561-7001?
Recorded compatible model references include Representative Cat Mini Excavators: 304 / 305 / 306 / 307.5 / 308 / 309 / 310, Representative Cat Excavators: 312 GC / 313 / 315 / 320 / 320 GC / 323 / 326 / 330 GC / 336 GC / 345 GC / 349 / 352, Other official Cat applications: D5 tractor, selected forestry equipment, material handlers and wheel loaders listed by Cat, Fitment limitation: Confirm 561-7001, 6-pin connector, pedal geometry and machine serial before shipment. Confirm the complete part number and machine serial range before ordering.
What numbers are documented for 561-7001?
Formatting aliases for the same number: 5617001.
How do I confirm 561-7001 before ordering?
Match the complete part number on the original component. Compare connectors, mounting points and visible dimensions with the product photos. Confirm the exact machine or engine model and serial range before ordering. Send clear photos of the original unit and connector layout when requesting a quote.
