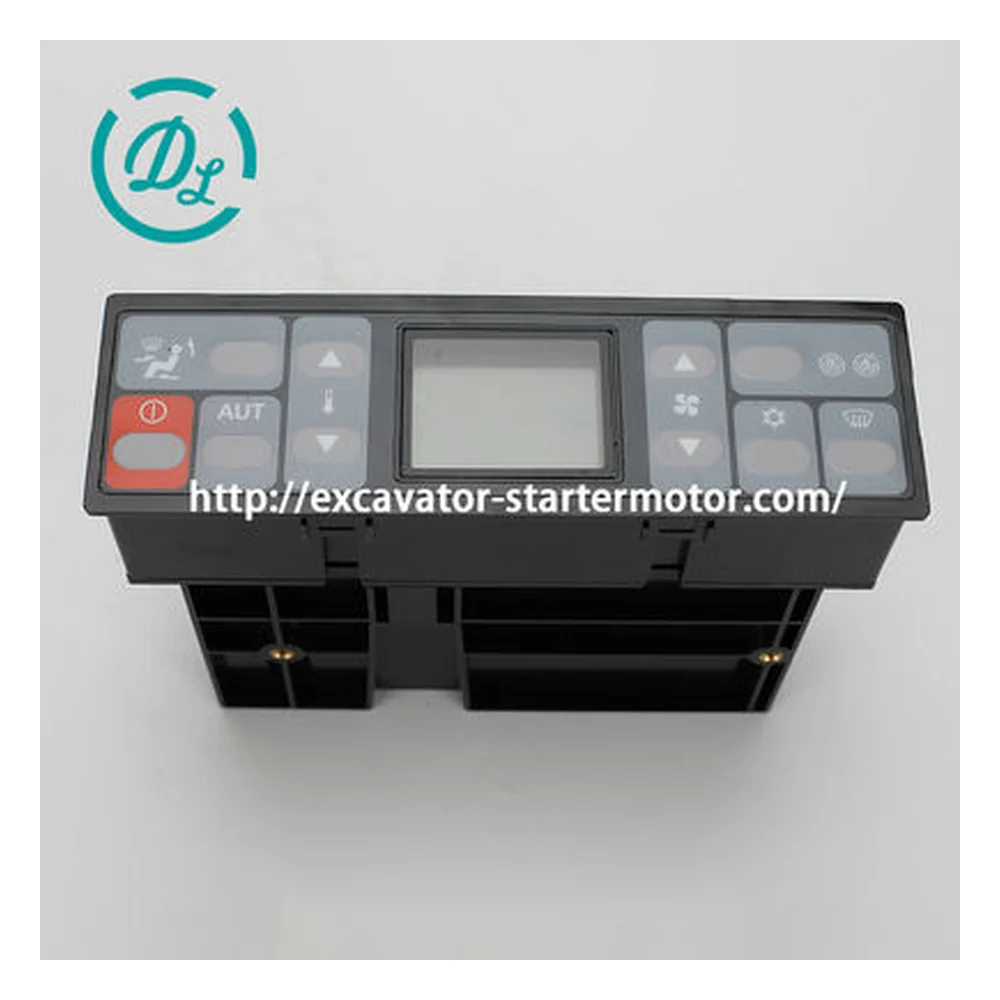

293-1136 Air Conditioner Control Panel for Cat 320D 325D 329D

Name: 293-1136 Air Conditioner Control Panel for Cat 320D 325D 329D
Brand: EexcavaStart
SKU: 293-1136

1 / 4

4 product photos · Swipe on mobile, or hover and select a thumbnail.

OEM / reference293-1136

SpecificationCab HVAC Control Panel Assembly

Catalog ID

Cab HVAC control panel identified by Cat part number 293-1136. The official Cat parts page defines a two-bolt air-conditioner control panel and lists 320D, 325D, 329D and additional D-series equipment. Exact owned photographs show the matching black rear housing. Confirm the complete number, two-bolt mounting, connector and machine serial range before ordering.

Product Type: Air conditioner control panel assembly
Mounting: 2-bolt mount
Mounting Thread: M5 x 0.8
Overall Size: 7.3 x 5.1 x 2.2 in (official Cat listing)

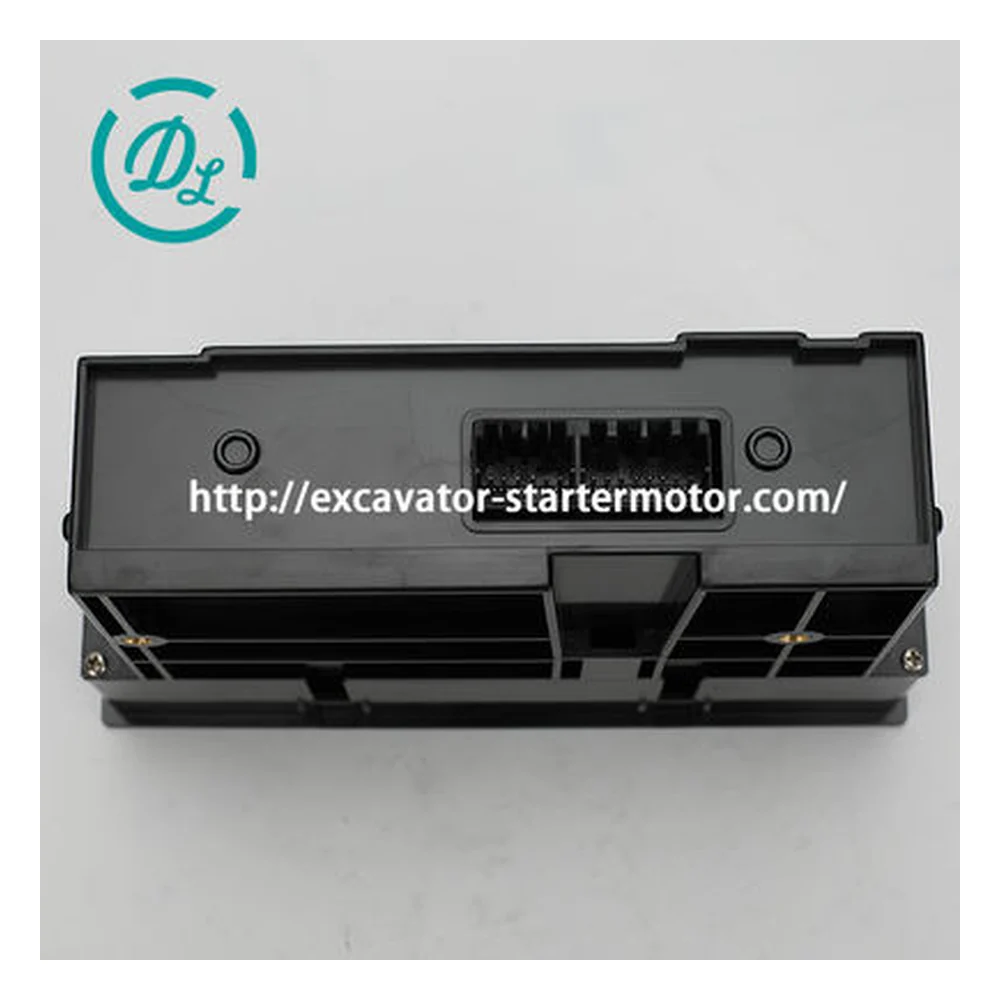

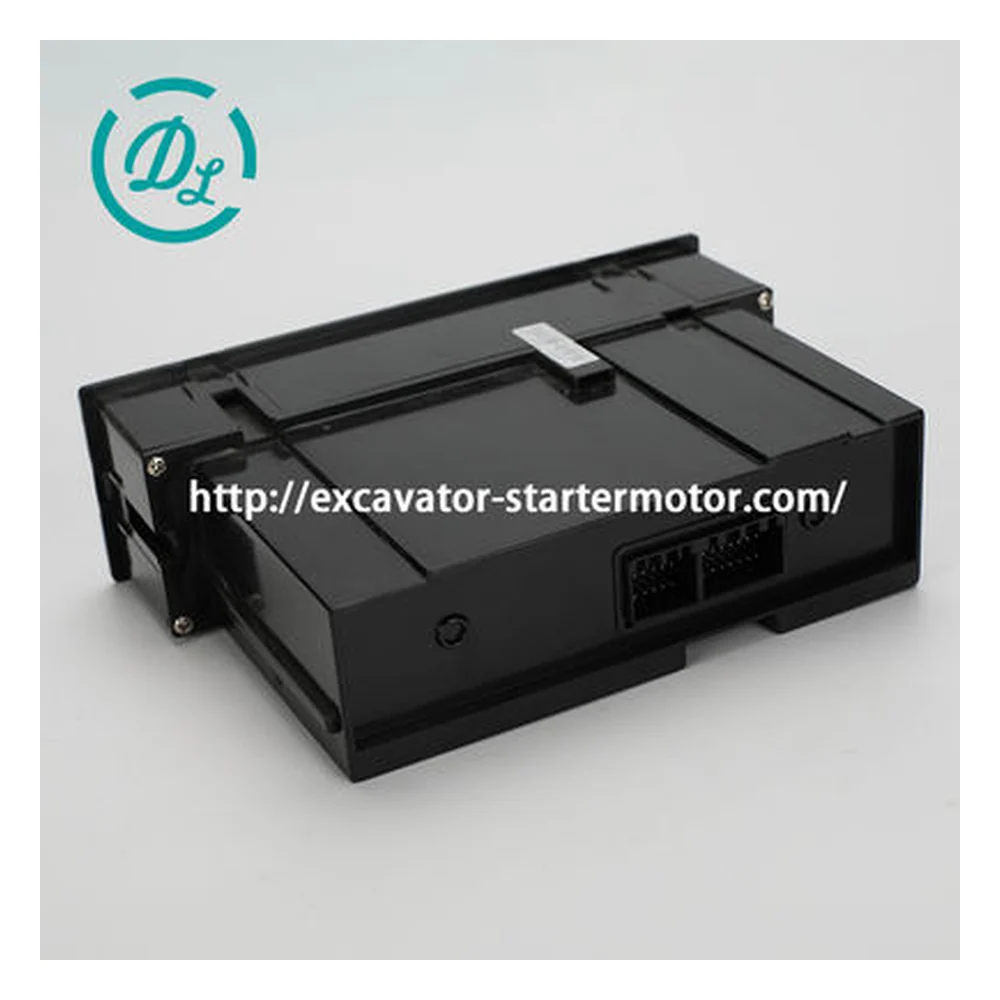

Observed Housing: Black rear housing

Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Part-number relationships

Relationship	Reference family	Number
Primary Part Number	Official Cat control-panel reference	293-1136

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number

293-1136

Formatting aliases are the same number written differently. Related assemblies and remanufactured numbers are not presented as direct interchanges.

Product summary

Cab HVAC Control Panel Assembly

Category: Excavator Air Conditioning Spare Parts
Catalog ID
Photo views: 4

Before ordering

Confirm these details

Match the complete part number on the original component label.
Compare the front layout and visible configuration with the product photos.
Compare connector count, connector shape and keying before installation.
Confirm the exact machine model and serial range before ordering.

Machine fitment

Compatible model references

3 model references

Representative Excavators: Cat 307D / 312D / 320D / 325D / 329D / 336D / 349D
Other Official Families: Selected M-series wheeled excavators and material handlers
Fitment Limitation: Confirm connector, mounting and machine serial range

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about 293-1136

Which machines use 293-1136?

Recorded compatible model references include Representative Excavators: Cat 307D / 312D / 320D / 325D / 329D / 336D / 349D, Other Official Families: Selected M-series wheeled excavators and material handlers, Fitment Limitation: Confirm connector, mounting and machine serial range. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for 293-1136?

No alternate number is listed for 293-1136. Send the original nameplate for an alternate-number check.

How do I confirm 293-1136 before ordering?

Match the complete part number on the original component label. Compare the front layout and visible configuration with the product photos. Compare connector count, connector shape and keying before installation. Send clear photos of the original unit and connector layout when requesting a quote.
