Starter Motors

28100-20210 28100-20560-71 24V 4.5kW 9T Starter Motor for Toyota 2J

Q: What numbers are documented for 28100-20210?

Primary Toyota Part Number: 28100-20210. Same-number Formatting Variant: 2810020210. Toyota Direct Replacement Reference: 28100-20560-71. Same-number Formatting Variant: 281002056071. Toyota Published Reference: 28100-20560. Denso Manufacturer Part Number: 028000-3530. Hyster OE Reference: 3049006. Independent New-unit Catalog Number: 17284N. Lester Catalog Number: 17284. Additional Family References - Verify Configuration: 28100-20500 / 028000-2530 / 028000-2880 / 028000-2881 / 028000-5840. Relationship labels distinguish formatting aliases, direct interchanges, remanufactured references and related assemblies.

Q: How do I confirm 28100-20210 before ordering?

Match the complete part number, compare the connector or mounting arrangement with the product photos, and confirm the machine or engine model and serial range. Send clear photos of the original unit when requesting a quote.

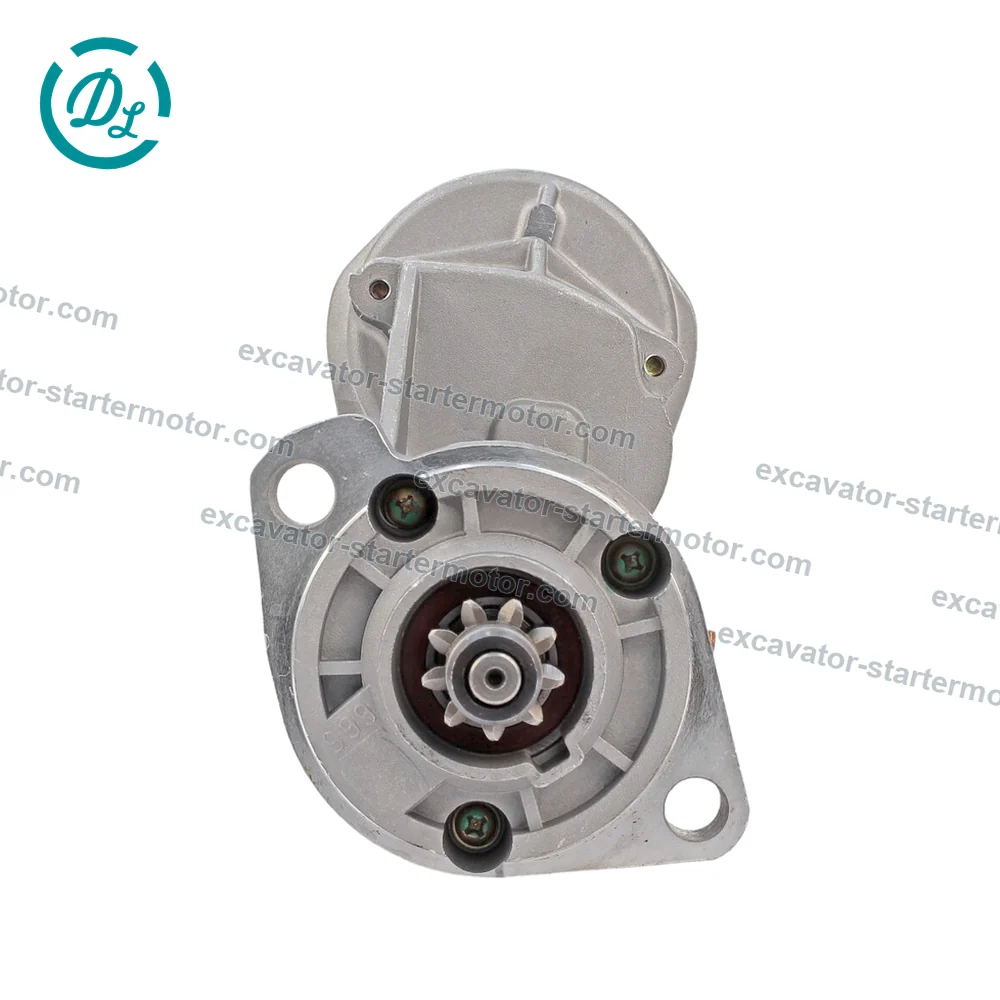

28100-20210 28100-20560-71 24V 4.5kW 9T Starter Motor for Toyota 2J, OEM/reference 28100-20210 / 28100-20560-71 / 028000-3530 / 17284N, 24V 4.5kW 9T Denso Direct-drive Starter Motor, product view 1

1 / 2

2 product photos · Swipe on mobile, or hover and select a thumbnail.

OEM / reference28100-20210 / 28100-20560-71 / 028000-3530 / 17284N

Specification24V 4.5kW 9T Denso Direct-drive Starter Motor

Catalog ID53793090

Product Type: Starter motor
Product Brand: EexcavaStart
Manufacturer Family: Denso direct drive
System Voltage: 24 V
Rated Power: 4.5 kW in the independent exact family record
Pinion Teeth: 9 in the independent exact family record
Rotation Code: CR in the independent exact family record; confirm physical unit
Mounting Holes: 2; 0 threaded holes in the independent exact family record
Size A: 89 mm in the independent exact family record
Drive Distance: 16 mm in the independent exact family record
Condition: New replacement part

Dimension codes identify measurement points on a matching technical drawing; they are not universal dimension names. Request the drawing or measurement-point confirmation for this reference before comparing your original unit.

Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Quotation details: MOQ, availability, lead time, item condition (new or remanufactured) and warranty coverage must be confirmed in your quotation before ordering.

Part-number relationships

Relationship	Reference family	Number
Primary Toyota Part Number	Canonical formatted OE reference	28100-20210
Same-number Formatting Variant	Compact form of 28100-20210	2810020210
Toyota Direct Replacement Reference	Exact 17284N plus independent 028000-3530 family bridge	28100-20560-71
Same-number Formatting Variant	Compact form of 28100-20560-71	281002056071
Toyota Published Reference	Exact 17284N replacement record	28100-20560
Denso Manufacturer Part Number	Exact 17284N and independent family bridge	028000-3530
Hyster OE Reference	Exact 17284N replacement record	3049006
Independent New-unit Catalog Number	Exact aftermarket record	17284N
Lester Catalog Number	Catalog lookup identifier	17284
Additional Family References - Verify Configuration	Independent STN3530 family; confirm configuration	28100-20500 / 028000-2530 / 028000-2880 / 028000-2881 / 028000-5840

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number

28100-20210

Manufacturer number

028000-3530

Formatting alias

2810020210
281002056071

Other documented relationship

28100-20560-71
28100-20560
3049006
17284N
17284
28100-20500 / 028000-2530 / 028000-2880 / 028000-2881 / 028000-5840

Formatting aliases are the same number written differently. Cross-references require a specification and fitment check; they do not by themselves confirm direct interchangeability. Related assemblies and remanufactured numbers are separate relationship types.

Product summary

24V 4.5kW 9T Denso Direct-drive Starter Motor

Category: Starter Motors
Catalog ID: 53793090
Photo views: 2

Before ordering

Confirm these details

Confirm voltage and power rating against the original starter nameplate.
Compare mounting-hole pattern, flange position and overall body orientation.
Confirm pinion tooth count and rotation where those values are specified.
Verify the engine model and machine serial range before ordering.

Machine fitment

Compatible model references

6 model references

Recorded application: TOYOTA INDUSTRIAL 2FD25
Toyota FDC-15: Year 1976-1988; Engine 2J Engine
Toyota FDC-20: Year 1976-1979; Engine 2J Engine
Toyota FDC-25: Year 1976-1988; Engine 2J Engine
Toyota FDC-30: Year 1976-1979; Engine 2J Engine
Toyota FDS-20: Year 1979-1999; Engine 2J Engine

Fitment / evidence notes

Fitment limitation: Confirm 28100-20210 or 28100-20560-71, 24 V system, 4.5 kW rating, 9-tooth pinion, Denso direct-drive housing, terminals, mounting and Toyota forklift serial range before shipment

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about 28100-20210

Which machines use 28100-20210?

Recorded compatible model references include Recorded application: TOYOTA INDUSTRIAL 2FD25, Toyota FDC-15: Year 1976-1988; Engine 2J Engine, Toyota FDC-20: Year 1976-1979; Engine 2J Engine, Toyota FDC-25: Year 1976-1988; Engine 2J Engine, Toyota FDC-30: Year 1976-1979; Engine 2J Engine, Toyota FDS-20: Year 1979-1999; Engine 2J Engine. Recorded fitment/evidence notes: Fitment limitation: Confirm 28100-20210 or 28100-20560-71, 24 V system, 4.5 kW rating, 9-tooth pinion, Denso direct-drive housing, terminals, mounting and Toyota forklift serial range before shipment. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for 28100-20210?

Manufacturer number: 028000-3530. Formatting aliases for the same number: 2810020210, 281002056071.

How do I confirm 28100-20210 before ordering?

Confirm voltage and power rating against the original starter nameplate. Compare mounting-hole pattern, flange position and overall body orientation. Confirm pinion tooth count and rotation where those values are specified. Send clear photos of the original unit and connector layout when requesting a quote.
