Excavator Spare Parts

196-7268 24V Illuminated Throttle Switch for Cat 120H 140H 160H

Name: 196-7268 24V Illuminated Throttle Switch for Cat 120H 140H 160H
Brand: EexcavaStart
SKU: 196-7268

OEM / reference196-7268

Specification24V Illuminated Throttle Switch

Catalog ID62648631

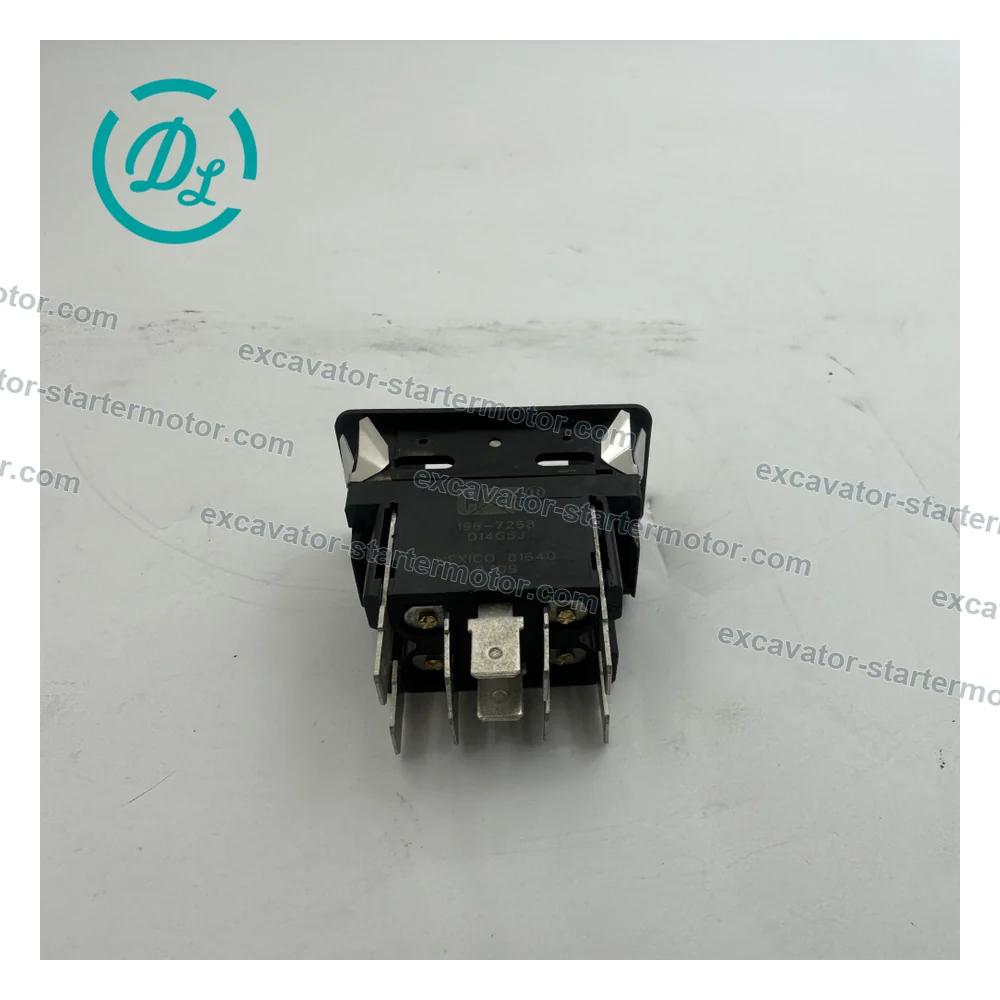

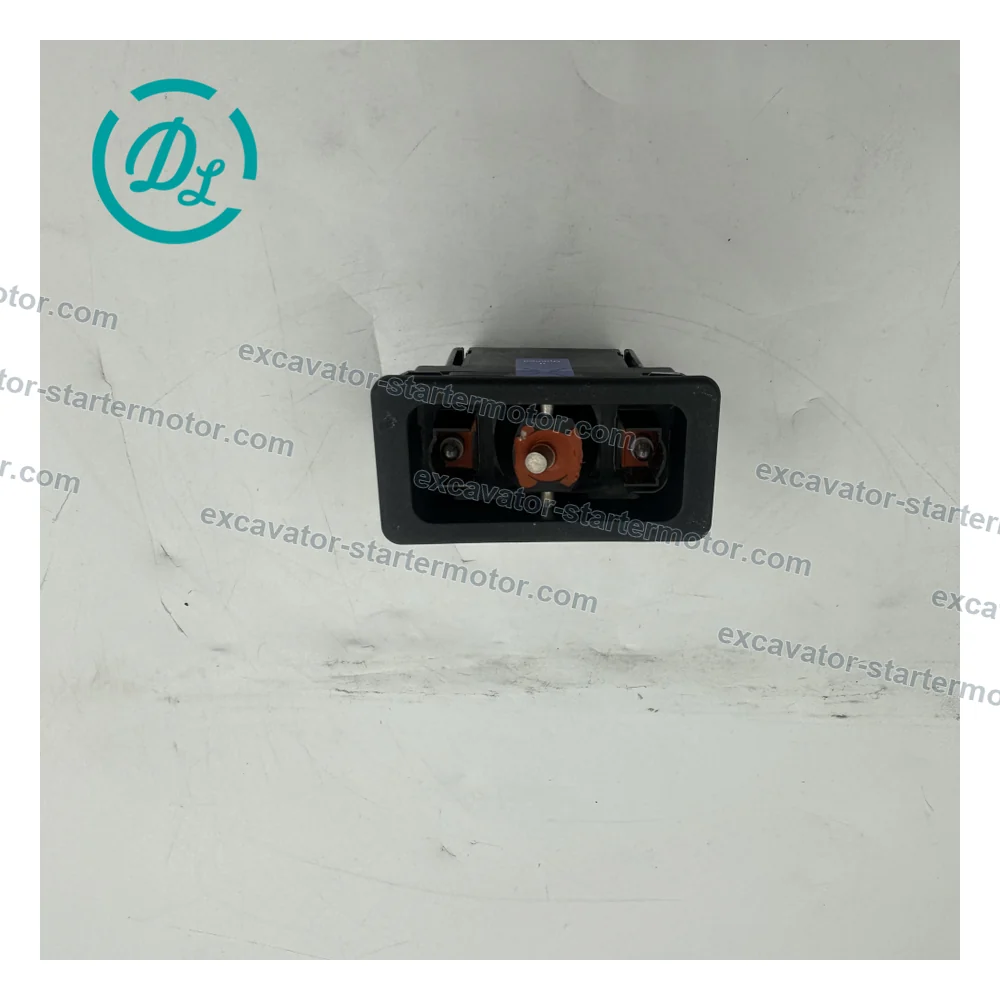

Illuminated throttle switch identified by Cat number 196-7268, formatted 1967268. The manufacturer parts record specifies 24V operation and lists 12H, 120H, 135H, 140H, 143H, 160H and 163H motor-grader applications. Exact owned photographs show the complete multi-terminal switch and the number molded on the housing. Confirm the full number, front symbol, terminal layout, panel opening and machine serial range.

Fitment status: Verified · Checked 2026-07-28

Product Type: Illuminated Throttle Switch
Product Brand: EexcavaStart
Rated Voltage: 24V
Length: 2.05 in / 52.1 mm
Width: 1.05 in / 26.7 mm
Height: 2.0 in / 50.8 mm
Temperature Range: -40 to 185 °F / -40 to 85 °C
Terminal Layout: Confirm against original switch
Supply Condition: Confirm with quotation

Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Part-number relationships

Relationship	Reference family	Number
Primary Manufacturer Part Number	Cat illuminated throttle switch	196-7268
Formatted Alias	Same number without separator	1967268

Evidence record

Source: Exact-reference evidence retained for internal audit
Evidence grade: manufacturer-supported
Checked: 2026-07-28

Source URLs, catalog files and local evidence paths are stored in the protected product audit record and are not public outbound links.

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number

196-7268

Formatting alias

1967268

Formatting aliases are the same number written differently. Related assemblies and remanufactured numbers are not presented as direct interchanges.

Product summary

24V Illuminated Throttle Switch

Category: Excavator Spare Parts
Catalog ID: 62648631
Photo views: 5

Before ordering

Confirm these details

Match the complete part number on the original component.
Compare connectors, mounting points and visible dimensions with the product photos.
Confirm the exact machine or engine model and serial range before ordering.

Machine fitment

Compatible model references

5 model references

Motor-grader model: Cat 12H
Motor-grader model: Cat 120H / 120K
Motor-grader model: Cat 135H / 140H / 140K
Motor-grader model: Cat 143H / 160H / 160K / 163H
Fitment limitation: Confirm switch symbol, terminal layout, panel opening, voltage and machine serial range

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about 196-7268

Which machines use 196-7268?

Recorded compatible model references include Motor-grader model: Cat 12H, Motor-grader model: Cat 120H / 120K, Motor-grader model: Cat 135H / 140H / 140K, Motor-grader model: Cat 143H / 160H / 160K / 163H, Fitment limitation: Confirm switch symbol, terminal layout, panel opening, voltage and machine serial range. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for 196-7268?

Formatting aliases for the same number: 1967268.

How do I confirm 196-7268 before ordering?

Match the complete part number on the original component. Compare connectors, mounting points and visible dimensions with the product photos. Confirm the exact machine or engine model and serial range before ordering. Send clear photos of the original unit and connector layout when requesting a quote.
