Alternators

112416 21516N 12V 100A Alternator for Opel Astra Corsa Meriva Zafira

Q: What numbers are documented for 112416?

Primary Part Number: 112416. Interchange Reference: 21516N. Interchange Reference: 10480225. Interchange Reference: 11.209.441. Interchange Reference: 35215260. Interchange Reference: 437422. Interchange Reference: 6204073, 6204098, 6204214, 6204238. Interchange Reference: 9117851, 9195753. Interchange Reference: A1011, CA1581IR. Relationship labels distinguish formatting aliases, direct interchanges, remanufactured references and related assemblies.

Q: How do I confirm 112416 before ordering?

Match the complete part number, compare the connector or mounting arrangement with the product photos, and confirm the machine or engine model and serial range. Send clear photos of the original unit when requesting a quote.

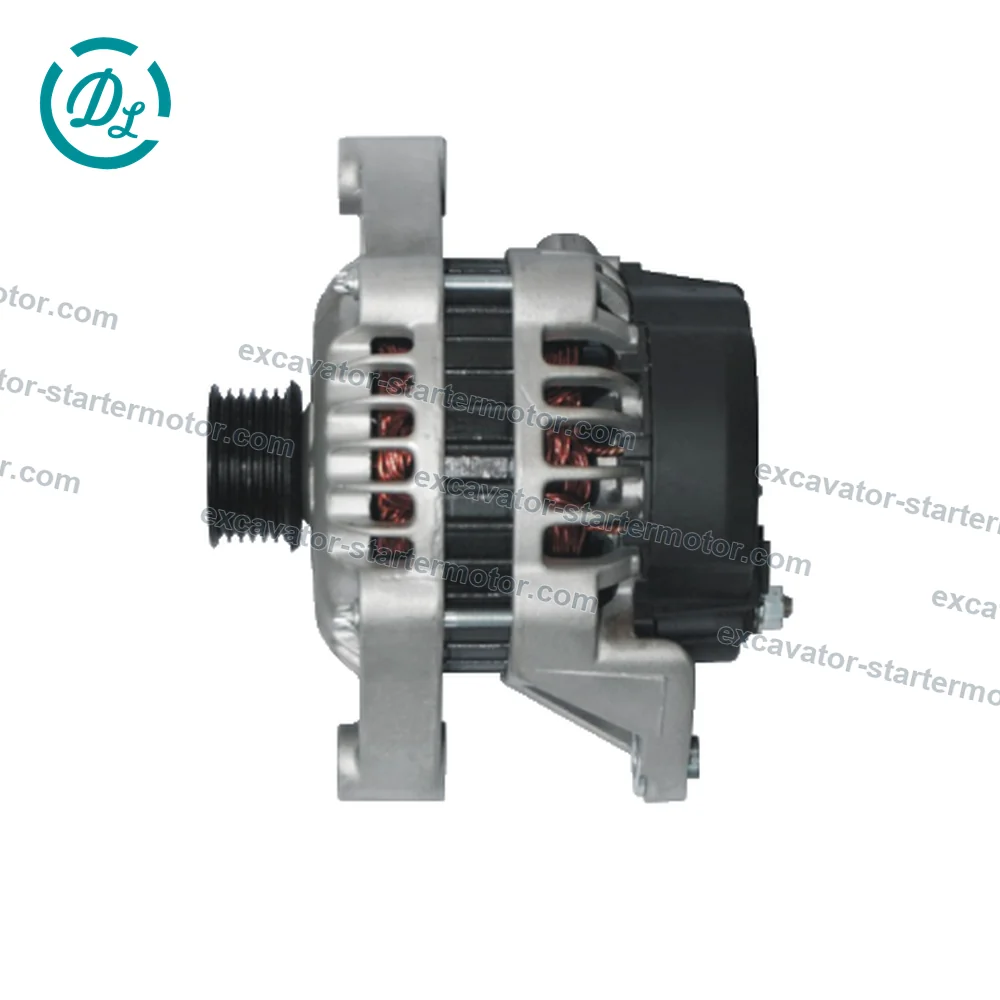

112416 21516N 12V 100A Alternator for Opel Astra Corsa Meriva Zafira, OEM/reference 112416 / 21516N / 10480225, 12V 100A CS130D Alternator, product view 1

1 / 2

2 product photos · Swipe on mobile, or hover and select a thumbnail.

OEM / reference112416 / 21516N / 10480225

Specification12V 100A CS130D Alternator

Catalog ID65249242

Product Type: Alternator
Product Brand: EexcavaStart
System Voltage: 12 V
Rated Output: 100 A
Manufacturer Series: CS130D
Design: IR/IF
Rotation: Clockwise (CW)
Mount Type: Hinge mount / SAE J180
Pulley: 5-groove
Catalog Pulley Diameter: 53.5 mm; rounded nominal value 54 mm; verify against original
Plug: PL_9104 / reference plug code 381
Size A: 54.5 mm
Size B: 33.5 mm
Size C: 58.0 mm
Overall Length: 183.0 mm
Split Mounting Ear Thickness: 34 mm
Ground / Polarity: Negative
Cooling: Internal fan
Condition: New replacement part
D.1 (10480225 reference configuration; source-coded thread; verify matching diagram/interface): M8x1.25
D.2 [ mm ] (10480225 reference configuration; verify matching diagram/interface): 10.00
D.3 [ mm ] (10480225 reference configuration; verify matching diagram/interface): 10.00

Dimension codes identify measurement points on a matching technical drawing; they are not universal dimension names. Request the drawing or measurement-point confirmation for this reference before comparing your original unit.

Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Quotation details: MOQ, availability, lead time, item condition (new or remanufactured) and warranty coverage must be confirmed in your quotation before ordering.

Part-number relationships

Relationship	Reference family	Number
Primary Part Number	Published catalog reference	112416
Cross-reference (fitment check required)	WAI	21516N
Cross-reference (fitment check required)	product-card replacement-for reference	10480225
Cross-reference (fitment check required)	exact A1011 catalog cross-reference	11.209.441
Cross-reference (fitment check required)	exact A1011 catalog cross-reference	35215260
Cross-reference (fitment check required)	exact A1011 catalog cross-reference	437422
Cross-reference (fitment check required)	exact A1011 catalog cross-reference	6204073, 6204098, 6204214, 6204238
Cross-reference (fitment check required)	exact A1011 catalog cross-reference	9117851, 9195753
Cross-reference (fitment check required)	exact A1011 catalog cross-reference	A1011, CA1581IR

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number

112416

Cross-reference (fitment check required)

21516N
10480225
11.209.441
35215260
437422
6204073, 6204098, 6204214, 6204238
9117851, 9195753
A1011, CA1581IR

Formatting aliases are the same number written differently. Cross-references require a specification and fitment check; they do not by themselves confirm direct interchangeability. Related assemblies and remanufactured numbers are separate relationship types.

Product summary

12V 100A CS130D Alternator

Category: Alternators
Catalog ID: 65249242
Photo views: 2

Before ordering

Confirm these details

Confirm voltage and rated amperage against the original alternator label.
Compare mounting ears, pulley type and pulley-groove count.
Check plug shape, terminal position and regulator connection.
Verify the engine model and machine serial range before ordering.

Machine fitment

Compatible model references

11 model references

Chevrolet: Astra (2000); Corsa, Meriva and Zafira (selected 2001-2006 1.8L applications)
Opel Astra G: 1998-2005; selected X14XE, Z14XE, X16SZR, X16XEL, Z16SE, Z16XE, X18XE1, Z18XE, X20XEV, X20XER, Z20LET, C16SEL and Z16YNG applications
Opel Astra H: 2004-2009; selected Z18XE applications
Opel Corsa C: 2000-2009; selected Z14XE and Z18XE applications
Opel Meriva A: 2003-2010; selected Z16SE, Z16XE and Z18XE applications
Opel Signum: 2004-2005; selected Z18XE applications
Opel Tigra: 2004-2010; selected Z18XE applications
Opel Vectra C: 2001-2009; selected Z18XE and Z18XEL applications
Opel Zafira A: 1999-2005; selected X16XEL, Z16XE, X18XE1, Z18XE, Z20LET and Z16YNG applications
Opel LCV: Astra Van G, Astra Van H and Corsa/Combo II; selected 1998-2009 petrol applications
OPEL ASTRA G Estate Van (F70) 1.2 (F70): Engine: X12XE; Year: 09.1998 - 08.2000; configuration-specific catalog reference 10480225. Verify the removed unit number, mounting, pulley and connector before ordering; this does not cover every variant of the equipment family.

Fitment / evidence notes

Fitment limitation: Confirm 112416, 21516N or 10480225; 12V/100A rating; five-groove pulley; plug; hinge mount; engine code and vehicle year before ordering.

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about 112416

Which machines use 112416?

Recorded compatible model references include Chevrolet: Astra (2000); Corsa, Meriva and Zafira (selected 2001-2006 1.8L applications), Opel Astra G: 1998-2005; selected X14XE, Z14XE, X16SZR, X16XEL, Z16SE, Z16XE, X18XE1, Z18XE, X20XEV, X20XER, Z20LET, C16SEL and Z16YNG applications, Opel Astra H: 2004-2009; selected Z18XE applications, Opel Corsa C: 2000-2009; selected Z14XE and Z18XE applications, Opel Meriva A: 2003-2010; selected Z16SE, Z16XE and Z18XE applications, Opel Signum: 2004-2005; selected Z18XE applications, Opel Tigra: 2004-2010; selected Z18XE applications, Opel Vectra C: 2001-2009; selected Z18XE and Z18XEL applications and 3 additional models shown on this page. Recorded fitment/evidence notes: Fitment limitation: Confirm 112416, 21516N or 10480225; 12V/100A rating; five-groove pulley; plug; hinge mount; engine code and vehicle year before ordering. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for 112416?

Cross-references are listed in the relationship table above. Compare specifications and the original unit before treating a reference as interchangeable.

How do I confirm 112416 before ordering?

Confirm voltage and rated amperage against the original alternator label. Compare mounting ears, pulley type and pulley-groove count. Check plug shape, terminal position and regulator connection. Send clear photos of the original unit and connector layout when requesting a quote.
