10480060 24V 40A Alternator for Case 1085B, 1085C and 1086B

Q: What numbers are documented for 10480060?

Primary Part Number: 10480060. Independent Catalog Number: 7176N. Cataloged Manufacturer Family: DELCO. Industry Catalog Number: 7176. Cataloged Replacement-Reference Family: Case A167152, A47484, L101465, L112091, L78103, Cummins 3604476RX, 3905225, 3909984, Delco 10480060, 1101195, 1101204, 1102918, 1103123, 1105419, 1105510, 1105537, Fiat Allis 73112312, John Deere AT157178, RE20034, SE501384, TY6776. Relationship labels distinguish formatting aliases, direct interchanges, remanufactured references and related assemblies.

Q: How do I confirm 10480060 before ordering?

Match the complete part number, compare the connector or mounting arrangement with the product photos, and confirm the machine or engine model and serial range. Send clear photos of the original unit when requesting a quote.

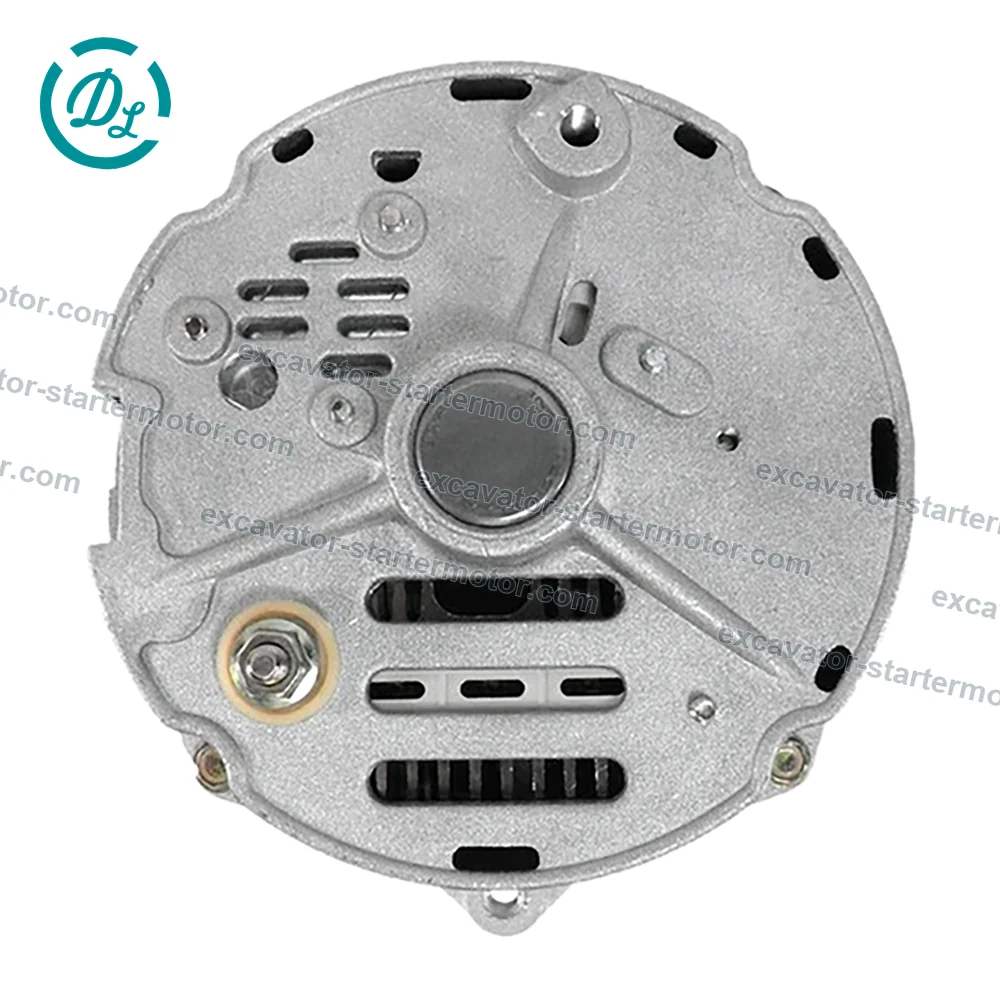

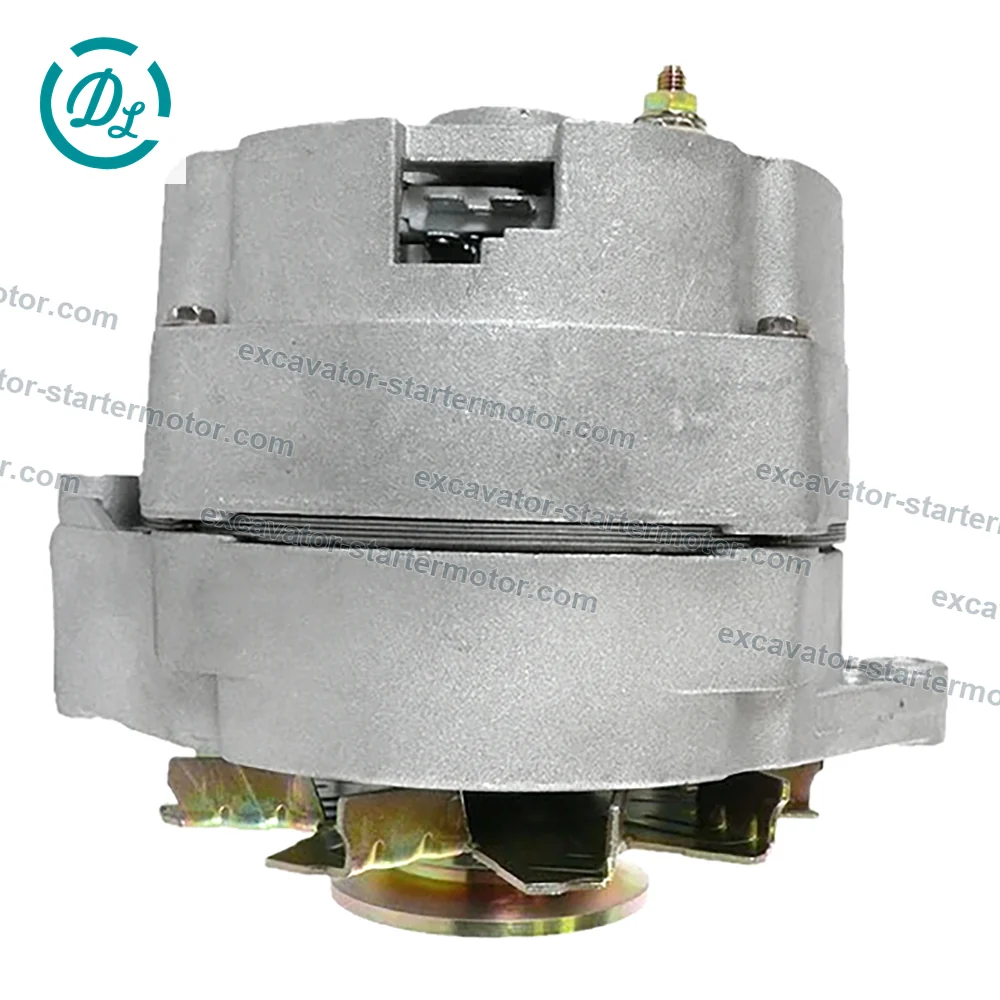

10480060 24V 40A Alternator for Case 1085B, 1085C and 1086B, OEM/reference 10480060, Alternator, product view 1

1 / 6

6 product photos · Swipe on mobile, or hover and select a thumbnail.

OEM / reference10480060

SpecificationAlternator

Catalog ID81966903

10480060 is an exact product reference in the reviewed official electrical catalog. The catalog specifies 24V, 40A, CW, IR/EF for selected Case 1085B, 1085C, 1086B applications. Compare the complete reference, electrical label, mounting, terminals, drive or pulley and the retained EexcavaStart product photographs with the original unit before ordering.

Product Type: Alternator
Voltage: 24 V
Rated Output: 40 A
Rotation: CW
Design Family: IR/EF
Manufacturer Series: 10SI
Pulley Class: V1
Condition: New replacement part

Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Part-number relationships

Relationship	Reference family	Number
Primary Part Number	Exact reviewed reference	10480060
Independent Catalog Number	Catalog cross-reference number; not an OEM number	7176N
Cataloged Manufacturer Family	Manufacturer family stated by the official record	DELCO
Industry Catalog Number	Independent cross-reference only	7176
Cataloged Replacement-Reference Family	Official grouped replacement family; confirm manufacturer context and suffix before substitution	Case A167152, A47484, L101465, L112091, L78103, Cummins 3604476RX, 3905225, 3909984, Delco 10480060, 1101195, 1101204, 1102918, 1103123, 1105419, 1105510, 1105537, Fiat Allis 73112312, John Deere AT157178, RE20034, SE501384, TY6776

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number

10480060

Manufacturer number

DELCO

Other documented relationship

7176N
7176
Case A167152, A47484, L101465, L112091, L78103, Cummins 3604476RX, 3905225, 3909984, Delco 10480060, 1101195, 1101204, 1102918, 1103123, 1105419, 1105510, 1105537, Fiat Allis 73112312, John Deere AT157178, RE20034, SE501384, TY6776

Formatting aliases are the same number written differently. Related assemblies and remanufactured numbers are not presented as direct interchanges.

Product summary

Alternator

Category: Excavator Alternators
Catalog ID: 81966903
Photo views: 6

Before ordering

Confirm these details

Confirm voltage and rated amperage against the original alternator label.
Compare mounting ears, pulley type and pulley-groove count.
Check plug shape, terminal position and regulator connection.
Verify the engine model and machine serial range before ordering.

Machine fitment

Compatible model references

10 model references

Case published applications · group 1: 1085B (1983-1990) · 6T-590 Diesel / 1085C (1990-1993) · 6T-590 Diesel / 1086B (1985-1990) · 6T-590 Diesel / 1150C (1978-1983) · 451 Diesel / 1150D (1983-1986) · 504 Diesel / 1155D (1983-1986) · 504 Diesel / 1450 (1983-1988) · 504 Diesel / 1450B (1980-1987) · 504 Diesel
Case published applications · group 2: 600 Skid King (1975-1979) · 336 Diesel / 680G Construction King (1979-1984) · 336BD Diesel / 680H Construction King (1980-1985) · 336BD Diesel / 680K Construction King (1984-1988) · 6-590 Diesel / 780B Construction King (1983-1988) · 336BDT Diesel / 780C Construction King (1984-1988) · 6T-590 Diesel / 800 Skid King (1973-1978) · 336 Diesel / 825 Skid King (1975-1979) · 336 Diesel
Case published applications · group 3: 850B (1976-1981) · 336 Diesel / 850C (1981-1984) · 336 Diesel / 850D (1984-1991) · 6-590 Diesel / 855C (1984) · 336 Diesel / 855D (1984-1991) · 6-590 Diesel / 880D (1984-1999) · 6T-590 Diesel / W14B (1985-1989) · 6-590 Diesel / W14H (1975-1984) · 336 Diesel
Case published applications · group 4: W18 (1978-1984) · 401 Diesel / W18B (1978-1982, 1983-1988) · 504 Diesel / W20 (1978-1981) · 401 Diesel / W20B (1980-1984) · 401 Diesel / W20C (1982-1989) · 504 Diesel / W24C (1977-1985) · 504 Diesel / W30 (1984-1989) · 504 Diesel / W36 (1983-1987) · 504 Diesel
Cummins Engines published applications: B Series (1980-1985)
Fiat-Allis published applications: 100C (1977-1979) · 11000 Diesel / 150C (1977-1979) · 11000 Diesel / 200C (1977-1979) · 11000 Diesel
John Deere published applications · group 1: 4276D / T (1987-1991) / 490E (1992-1997) · 4045T, 4.5L John Deere Diesel / 570B (1982-2003) · 6059D John Deere Diesel / 595D (1989-1995) / 6466A / D / T (1984-1987) / 655 Utility Tractor (1981-1985) · Various Dsl. / 655B (1982-1986) · 6068T John Deere Diesel / 6619 (1983-1986) · 619 Diesel
John Deere published applications · group 2: 672B (1988-1995) · Various Dsl. / 750 (1975-1980, 1981) · Various Dsl. / 750B (1982-1990) · 6068 John Deere Diesel / 755 Utility Tractor (1976-1981) · Various Dsl. / 755A (1982-1984) · Various Dsl. / 755B (1985-1990) · Various Dsl. / 770B (1982-2003) · Various Dsl. / 772B (1982-2003) · Various Dsl.
John Deere published applications · group 3: 790D (1987-1992) · 6466A John Deere Deisel / 790E LC (1992-1997) · 6068 John Deere Deisel; 6068T John Deere Deisel / 793D (1988-1995) · 6466A John Deere Deisel / 850 (1978-1981) · Various Dsl. / 850B (1982-1990) · 619 Diesel / 855 (1978-1986) · Various Dsl. / 892E LC (1993-1998) · 6076 John Deere Diesel
Fitment limitation: Confirm the complete part number, electrical rating, rotation, drive or pulley, mounting, terminals and equipment serial range before ordering.

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about 10480060

Which machines use 10480060?

Recorded compatible model references include Case published applications · group 1: 1085B (1983-1990) · 6T-590 Diesel / 1085C (1990-1993) · 6T-590 Diesel / 1086B (1985-1990) · 6T-590 Diesel / 1150C (1978-1983) · 451 Diesel / 1150D (1983-1986) · 504 Diesel / 1155D (1983-1986) · 504 Diesel / 1450 (1983-1988) · 504 Diesel / 1450B (1980-1987) · 504 Diesel, Case published applications · group 2: 600 Skid King (1975-1979) · 336 Diesel / 680G Construction King (1979-1984) · 336BD Diesel / 680H Construction King (1980-1985) · 336BD Diesel / 680K Construction King (1984-1988) · 6-590 Diesel / 780B Construction King (1983-1988) · 336BDT Diesel / 780C Construction King (1984-1988) · 6T-590 Diesel / 800 Skid King (1973-1978) · 336 Diesel / 825 Skid King (1975-1979) · 336 Diesel, Case published applications · group 3: 850B (1976-1981) · 336 Diesel / 850C (1981-1984) · 336 Diesel / 850D (1984-1991) · 6-590 Diesel / 855C (1984) · 336 Diesel / 855D (1984-1991) · 6-590 Diesel / 880D (1984-1999) · 6T-590 Diesel / W14B (1985-1989) · 6-590 Diesel / W14H (1975-1984) · 336 Diesel, Case published applications · group 4: W18 (1978-1984) · 401 Diesel / W18B (1978-1982, 1983-1988) · 504 Diesel / W20 (1978-1981) · 401 Diesel / W20B (1980-1984) · 401 Diesel / W20C (1982-1989) · 504 Diesel / W24C (1977-1985) · 504 Diesel / W30 (1984-1989) · 504 Diesel / W36 (1983-1987) · 504 Diesel, Cummins Engines published applications: B Series (1980-1985), Fiat-Allis published applications: 100C (1977-1979) · 11000 Diesel / 150C (1977-1979) · 11000 Diesel / 200C (1977-1979) · 11000 Diesel, John Deere published applications · group 1: 4276D / T (1987-1991) / 490E (1992-1997) · 4045T, 4.5L John Deere Diesel / 570B (1982-2003) · 6059D John Deere Diesel / 595D (1989-1995) / 6466A / D / T (1984-1987) / 655 Utility Tractor (1981-1985) · Various Dsl. / 655B (1982-1986) · 6068T John Deere Diesel / 6619 (1983-1986) · 619 Diesel, John Deere published applications · group 2: 672B (1988-1995) · Various Dsl. / 750 (1975-1980, 1981) · Various Dsl. / 750B (1982-1990) · 6068 John Deere Diesel / 755 Utility Tractor (1976-1981) · Various Dsl. / 755A (1982-1984) · Various Dsl. / 755B (1985-1990) · Various Dsl. / 770B (1982-2003) · Various Dsl. / 772B (1982-2003) · Various Dsl. and 2 additional models shown on this page. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for 10480060?

Manufacturer number: DELCO.

How do I confirm 10480060 before ordering?

Confirm voltage and rated amperage against the original alternator label. Compare mounting ears, pulley type and pulley-groove count. Check plug shape, terminal position and regulator connection. Send clear photos of the original unit and connector layout when requesting a quote.
