1-09070141-0 / 1-09070142-0 Cylinder Head Bolts for Isuzu 6WG1
5 product photos · Swipe on mobile, or hover and select a thumbnail.
OEM / reference1-09070141-0
SpecificationM18x115 and M18x159 Cylinder Head Bolts
Catalog ID63256210

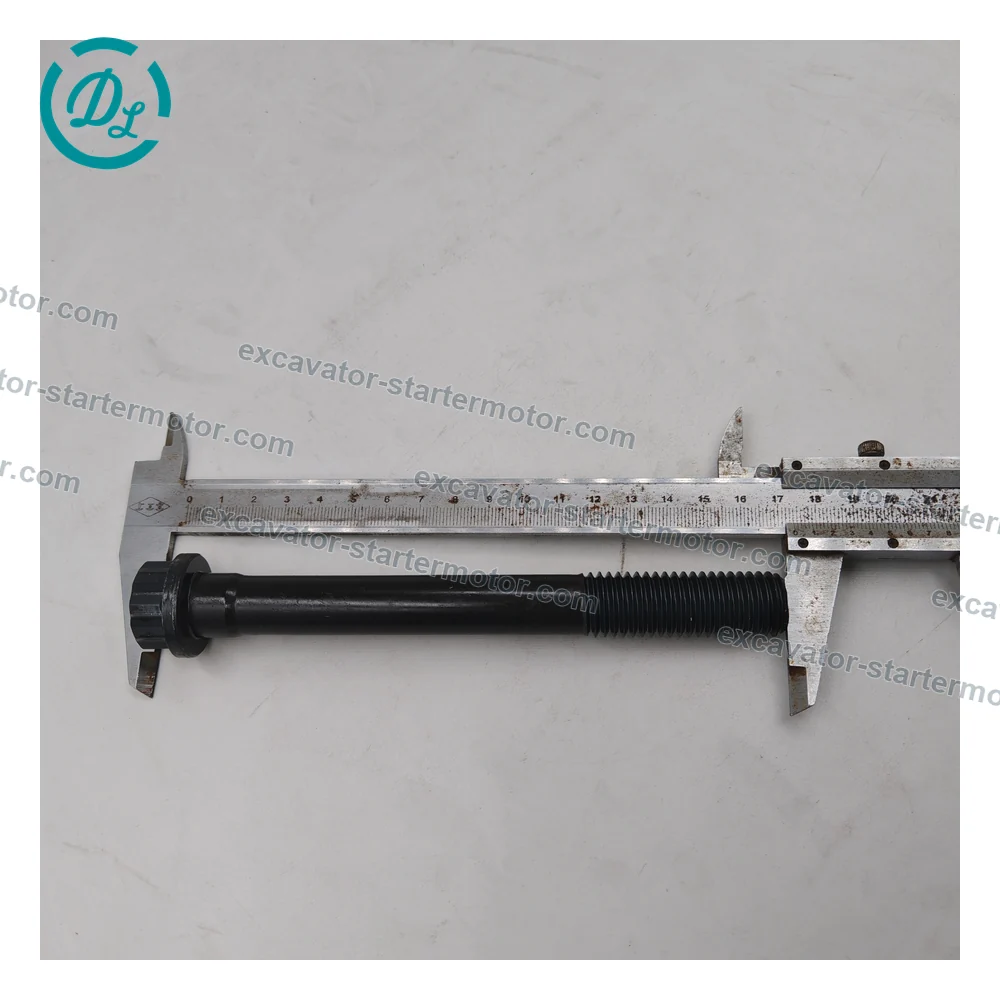

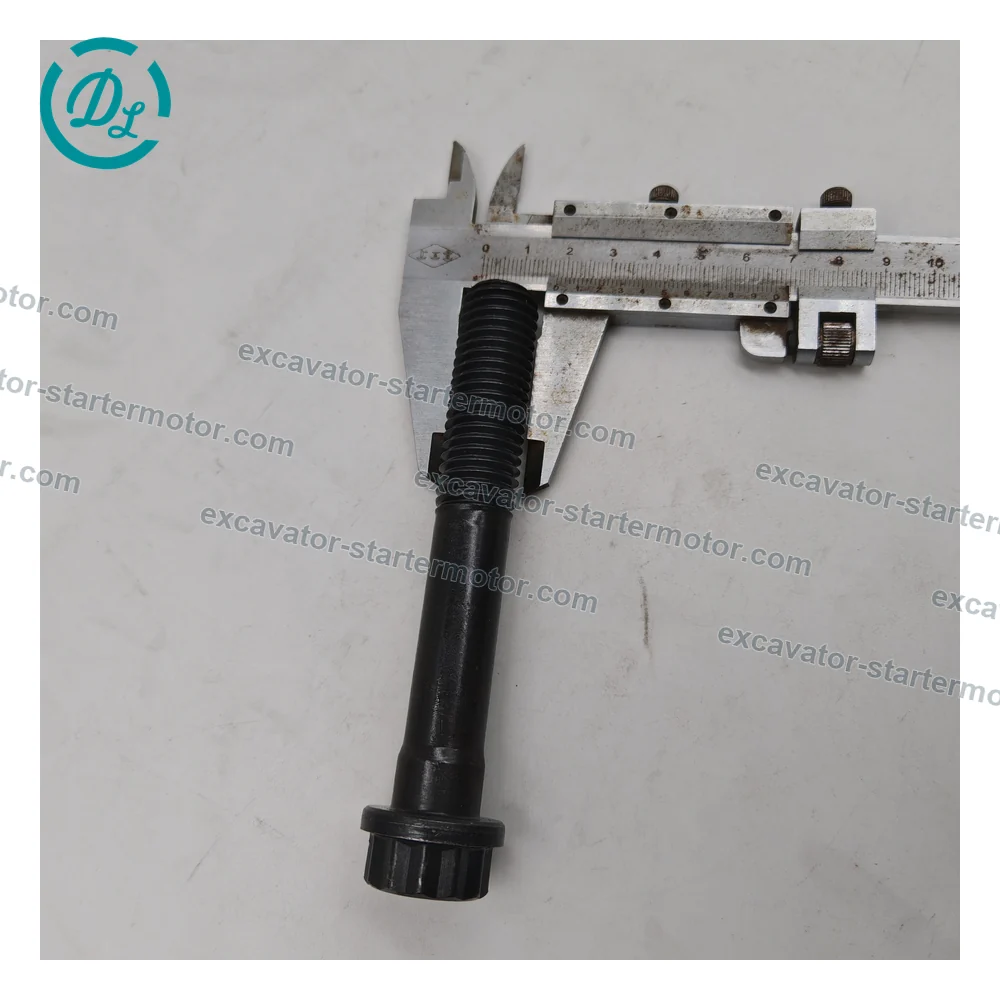

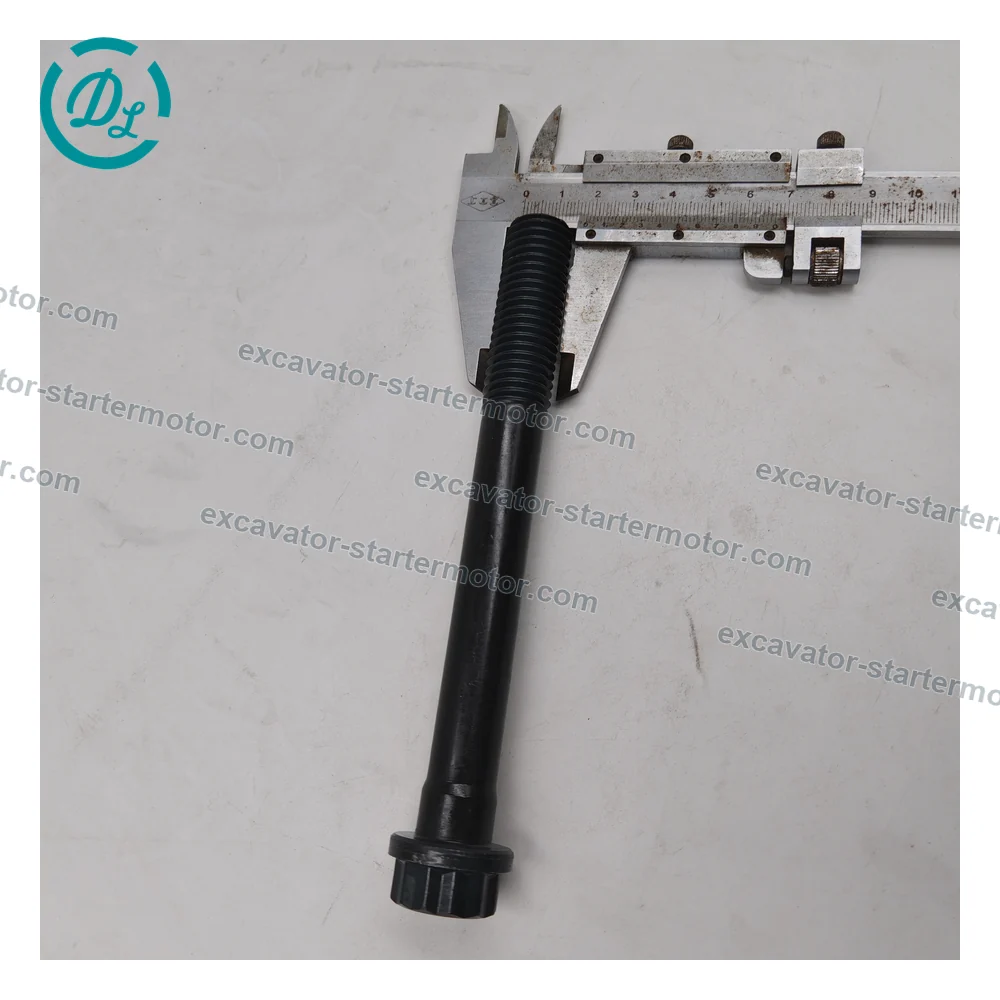

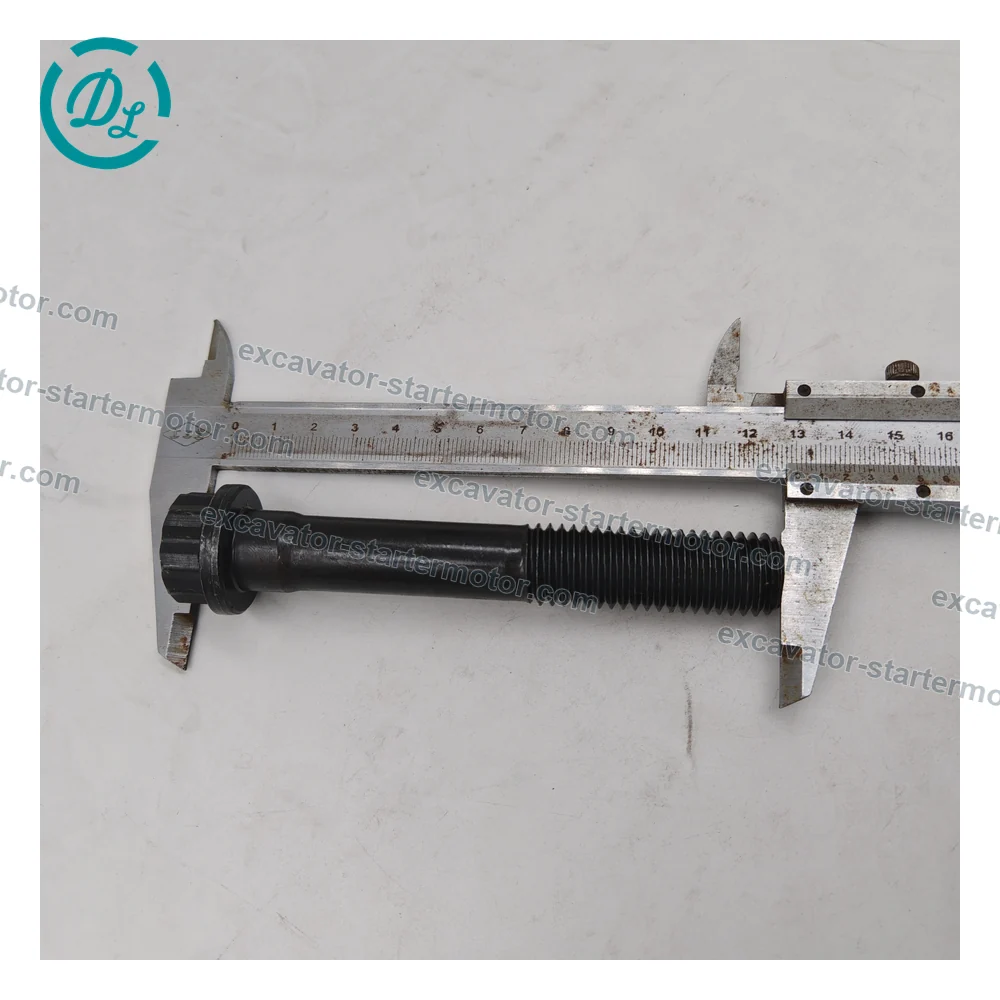

Two cylinder-head-to-block bolt positions for the Isuzu 6WG1 engine: 1-09070141-0 is the M18x115 bolt and 1-09070142-0 is the M18x159 bolt. These numbers identify different bolt lengths in the same cylinder-head assembly and are not direct interchanges. Confirm the required position and length before ordering.
Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.
Part-number relationships
Relationship
Reference family
Number
Primary Equipment Part Number
M18x115 cylinder-head bolt
1-09070141-0
Same-number Formatting Variant
Compact formatting for the M18x115 bolt
1090701410
Companion Assembly Part - Not Interchangeable
M18x159 cylinder-head bolt used at a different position
1-09070142-0
Same-number Formatting Variant
Compact formatting for the M18x159 companion bolt
1090701420
Cataloged Replacement Reference
Later number for the M18x159 bolt
8-98245541-0
Product fitment guide
Part numbers and compatible models
Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.
Part identification
Reference numbers
Primary number
1-09070141-0
Formatting alias
1090701410
1090701420
Direct interchange
1-09070142-0
Other documented relationship
8-98245541-0
Formatting aliases are the same number written differently. Related assemblies and remanufactured numbers are not presented as direct interchanges.
Product summary
M18x115 and M18x159 Cylinder Head Bolts
Category
Excavator Engine Parts
Catalog ID
63256210
Photo views
5
Before ordering
Confirm these details
Match the complete part number on the original component.
Compare connectors, mounting points and visible dimensions with the product photos.
Confirm the exact machine or engine model and serial range before ordering.
Machine fitment
Compatible model references
3 model references
Cataloged engine family: Isuzu 6WG1 / 6WF1
Cataloged equipment families: Hitachi, JCB and Case equipment using the applicable engine
Fitment limitation: Confirm bolt position, length and engine serial range
Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.
Quick fitment answers
Common questions about 1-09070141-0
Which machines use 1-09070141-0?
Recorded compatible model references include Cataloged engine family: Isuzu 6WG1 / 6WF1, Cataloged equipment families: Hitachi, JCB and Case equipment using the applicable engine, Fitment limitation: Confirm bolt position, length and engine serial range. Confirm the complete part number and machine serial range before ordering.
What numbers are documented for 1-09070141-0?
Documented direct interchanges: 1-09070142-0. Formatting aliases for the same number: 1090701410, 1090701420.
How do I confirm 1-09070141-0 before ordering?
Match the complete part number on the original component. Compare connectors, mounting points and visible dimensions with the product photos. Confirm the exact machine or engine model and serial range before ordering. Send clear photos of the original unit and connector layout when requesting a quote.
