04131602 12V 3.2kW 9-Tooth Starter for Deutz TCD 2.9 and F4M 2011

Q: What numbers are documented for 04131602?

Primary Deutz Part Number: 04131602. Aftermarket Catalog Number: aftermarket 31258N. Deutz Cataloged Replacement Family: 04130 1602 / 04606897 / 41301602 / 7266054. Letrika / Iskra Manufacturer References: 11.132.058 / 11.132.377 / 11.132.592 / 11.132.606 / 11.139.343 / IS 1380. Letrika Technical References: AZE4224 / AZE4282 / AZE4313 / AZE4314 / AZE6705. Equipment-Manufacturer References: Caterpillar 449-2391; JLG 1254594 / 1254594GT / 70031144 / 825691; Kramer 1000332119. Lester Industry Catalog Number: 31258. Relationship labels distinguish formatting aliases, direct interchanges, remanufactured references and related assemblies.

Q: How do I confirm 04131602 before ordering?

Match the complete part number, compare the connector or mounting arrangement with the product photos, and confirm the machine or engine model and serial range. Send clear photos of the original unit when requesting a quote.

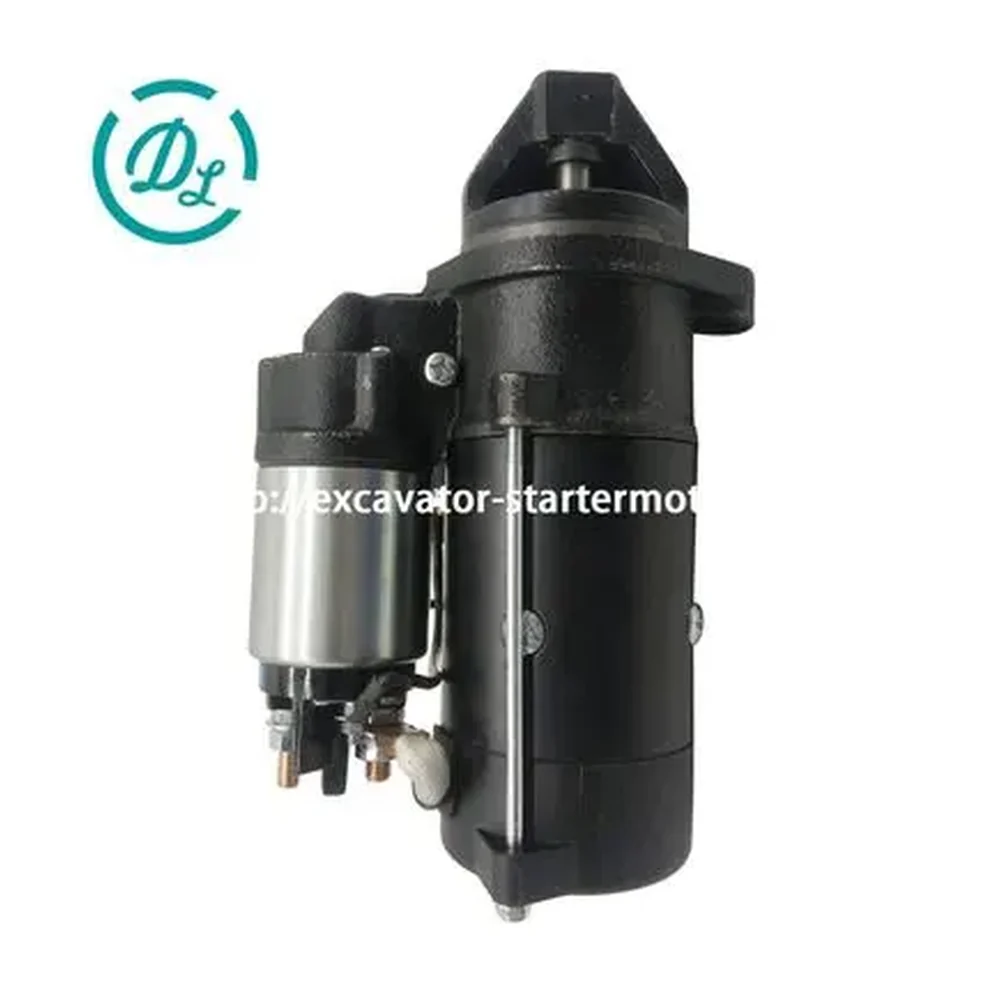

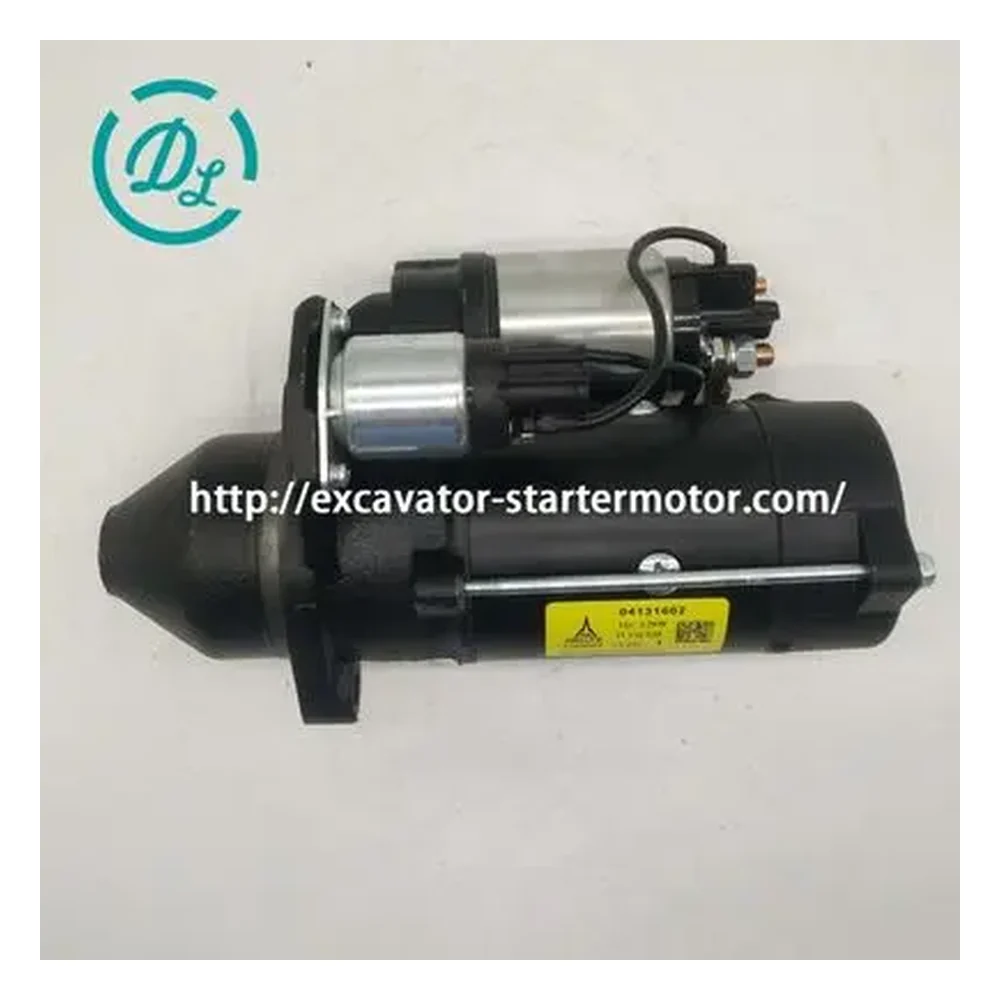

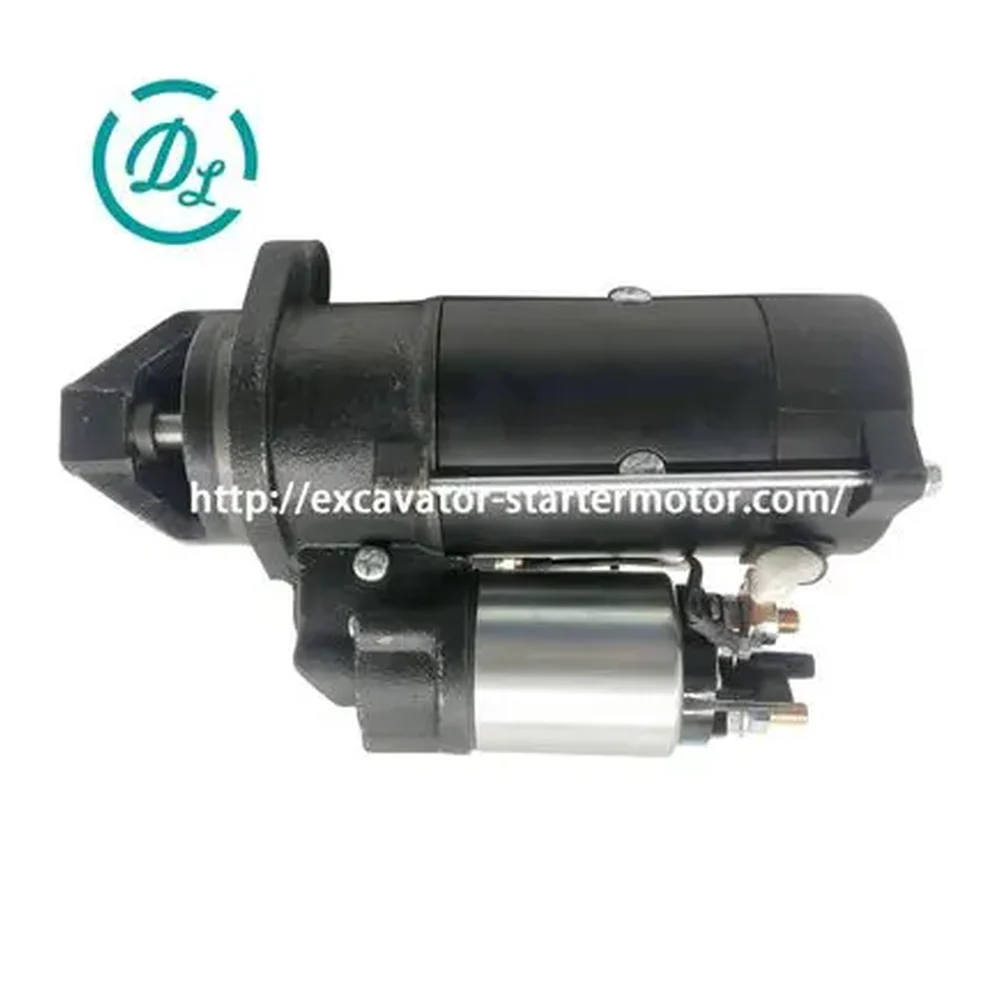

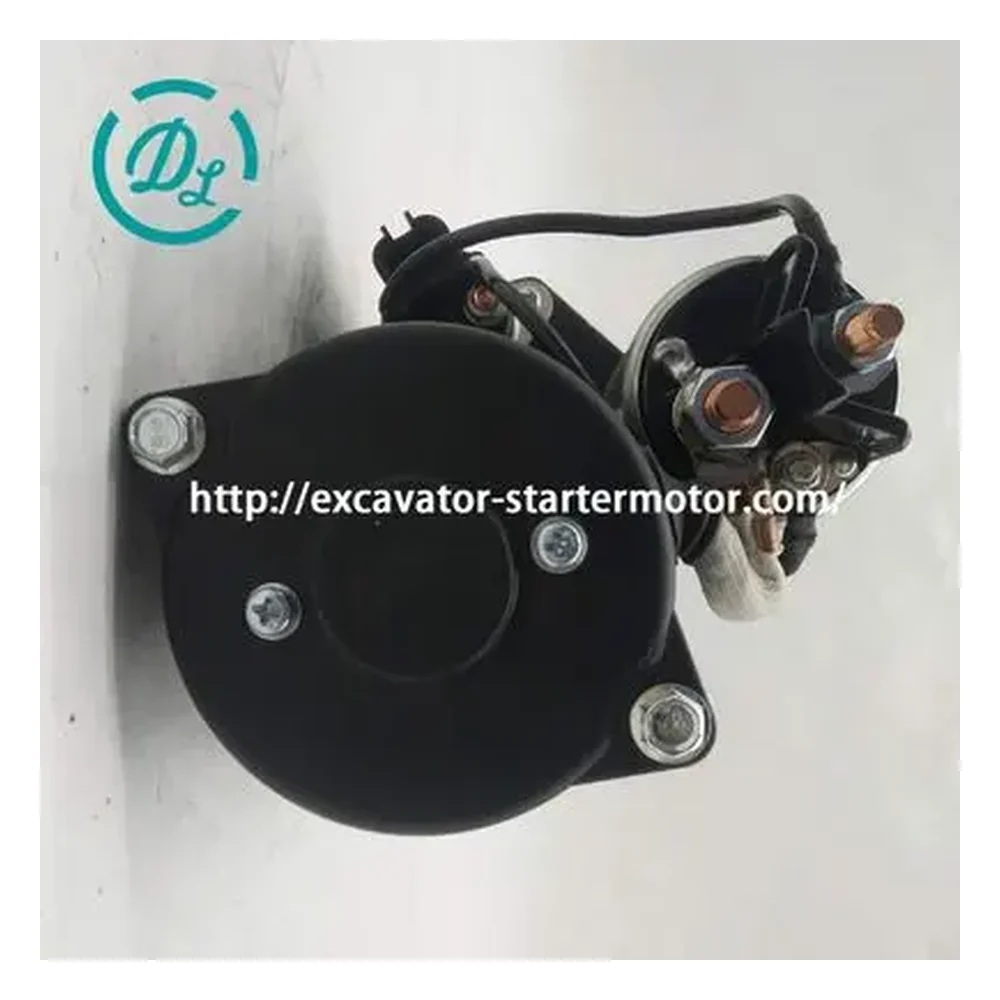

04131602 12V 3.2kW 9-Tooth Starter for Deutz TCD 2.9 and F4M 2011, OEM/reference 04131602, Starter Motor, product view 1

1 / 5

5 product photos · Swipe on mobile, or hover and select a thumbnail.

OEM / reference04131602

SpecificationStarter Motor

Catalog ID53827880

Product Type: PLGR starter motor
Voltage: 12V
Rated Power: 3.2 kW
Pinion Teeth: 9
Rotation: Clockwise (CW)
Design Family: Letrika / Iskra PLGR
Condition: New replacement part

Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Quotation details: MOQ, availability, lead time, item condition (new or remanufactured) and warranty coverage must be confirmed in your quotation before ordering.

Part-number relationships

Relationship	Reference family	Number
Primary Deutz Part Number	Official aftermarket 31258N replacement-reference entry	04131602
Aftermarket Catalog Number	Official verified product interchange record	aftermarket 31258N
Deutz Cataloged Replacement Family	Formatting duplicates consolidated	04130 1602 / 04606897 / 41301602 / 7266054
Letrika / Iskra Manufacturer References	Cataloged manufacturer references	11.132.058 / 11.132.377 / 11.132.592 / 11.132.606 / 11.139.343 / IS 1380
Letrika Technical References	Cataloged technical numbers	AZE4224 / AZE4282 / AZE4313 / AZE4314 / AZE6705
Equipment-Manufacturer References	Grouped separately by manufacturer	Caterpillar 449-2391; JLG 1254594 / 1254594GT / 70031144 / 825691; Kramer 1000332119
Lester Industry Catalog Number	Catalog cross-reference only	31258

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number

04131602

Manufacturer number

11.132.058 / 11.132.377 / 11.132.592 / 11.132.606 / 11.139.343 / IS 1380
Caterpillar 449-2391; JLG 1254594 / 1254594GT / 70031144 / 825691; Kramer 1000332119

Other documented relationship

aftermarket 31258N
04130 1602 / 04606897 / 41301602 / 7266054
AZE4224 / AZE4282 / AZE4313 / AZE4314 / AZE6705
31258

Formatting aliases are the same number written differently. Cross-references require a specification and fitment check; they do not by themselves confirm direct interchangeability. Related assemblies and remanufactured numbers are separate relationship types.

Product summary

Starter Motor

Category: Starter Motors
Catalog ID: 53827880
Photo views: 5

Before ordering

Confirm these details

Confirm voltage and power rating against the original starter nameplate.
Compare mounting-hole pattern, flange position and overall body orientation.
Confirm pinion tooth count and rotation where those values are specified.
Verify the engine model and machine serial range before ordering.

Machine fitment

Compatible model references

4 model references

Published Engine Families: Deutz TCD 2.9 / F4M 2011 / TCD 2.2 / D2011 L04
Telehandler Examples: Caterpillar TH255C / Gehl GTH-5519 / Skyjack SJ519 TH, SJ643 TH and SJ843 TH
Loader / Excavator Examples: Kramer 8095, KL30.8T, KL35.8T, KL37.8 and KL43.8; Menzi Muck 45rd and M220
Forklift Examples: Still RX70-40 / RX70-45 / RX70-50

Fitment / evidence notes

Fitment Limitation: Confirm 04131602, 12V/3.2kW label, nine-tooth pinion, rotation, flange, terminals and serial range

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about 04131602

Which machines use 04131602?

Recorded compatible model references include Published Engine Families: Deutz TCD 2.9 / F4M 2011 / TCD 2.2 / D2011 L04, Telehandler Examples: Caterpillar TH255C / Gehl GTH-5519 / Skyjack SJ519 TH, SJ643 TH and SJ843 TH, Loader / Excavator Examples: Kramer 8095, KL30.8T, KL35.8T, KL37.8 and KL43.8; Menzi Muck 45rd and M220, Forklift Examples: Still RX70-40 / RX70-45 / RX70-50. Recorded fitment/evidence notes: Fitment Limitation: Confirm 04131602, 12V/3.2kW label, nine-tooth pinion, rotation, flange, terminals and serial range. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for 04131602?

Manufacturer number: 11.132.058 / 11.132.377 / 11.132.592 / 11.132.606 / 11.139.343 / IS 1380, Caterpillar 449-2391; JLG 1254594 / 1254594GT / 70031144 / 825691; Kramer 1000332119.

How do I confirm 04131602 before ordering?

Confirm voltage and power rating against the original starter nameplate. Compare mounting-hole pattern, flange position and overall body orientation. Confirm pinion tooth count and rotation where those values are specified. Send clear photos of the original unit and connector layout when requesting a quote.
