01183035 24V 5.5kW 12T Starter for Deutz TCD2015 V6 V8

Q: What numbers are documented for 01183035?

Primary Part Number: 01183035. Formatting Alias - Same Number: 1183035. Manufacturer Part Number: 118-3035. Manufacturer Part Number: 11.131.609. Manufacturer Part Number: 11.131.871. Sales Reference: IS1211. Technical Reference: AZF4657. Technical Reference: AZF4698. Manufacturer Part Number: MS63. Catalog Cross-Reference: 31484N. Interchange Reference: S9409(LETRIKA). Relationship labels distinguish formatting aliases, direct interchanges, remanufactured references and related assemblies.

Q: How do I confirm 01183035 before ordering?

Match the complete part number, compare the connector or mounting arrangement with the product photos, and confirm the machine or engine model and serial range. Send clear photos of the original unit when requesting a quote.

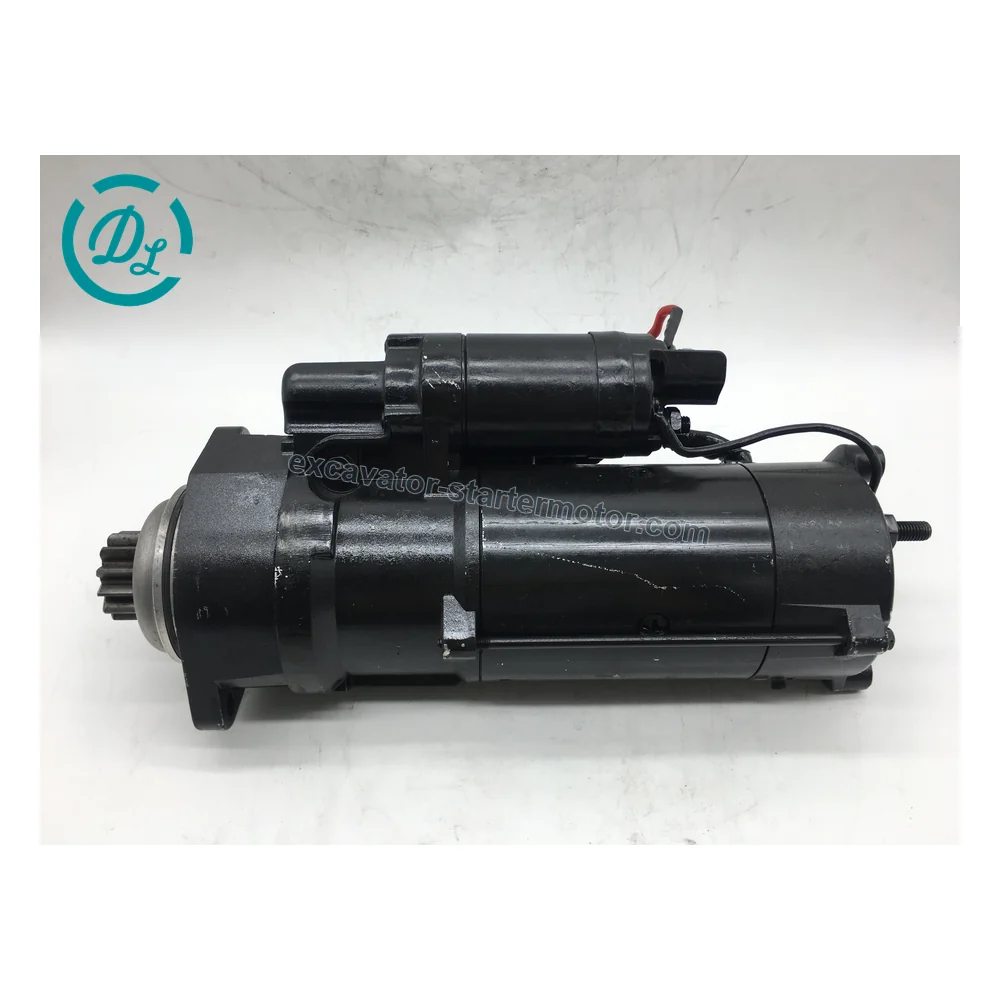

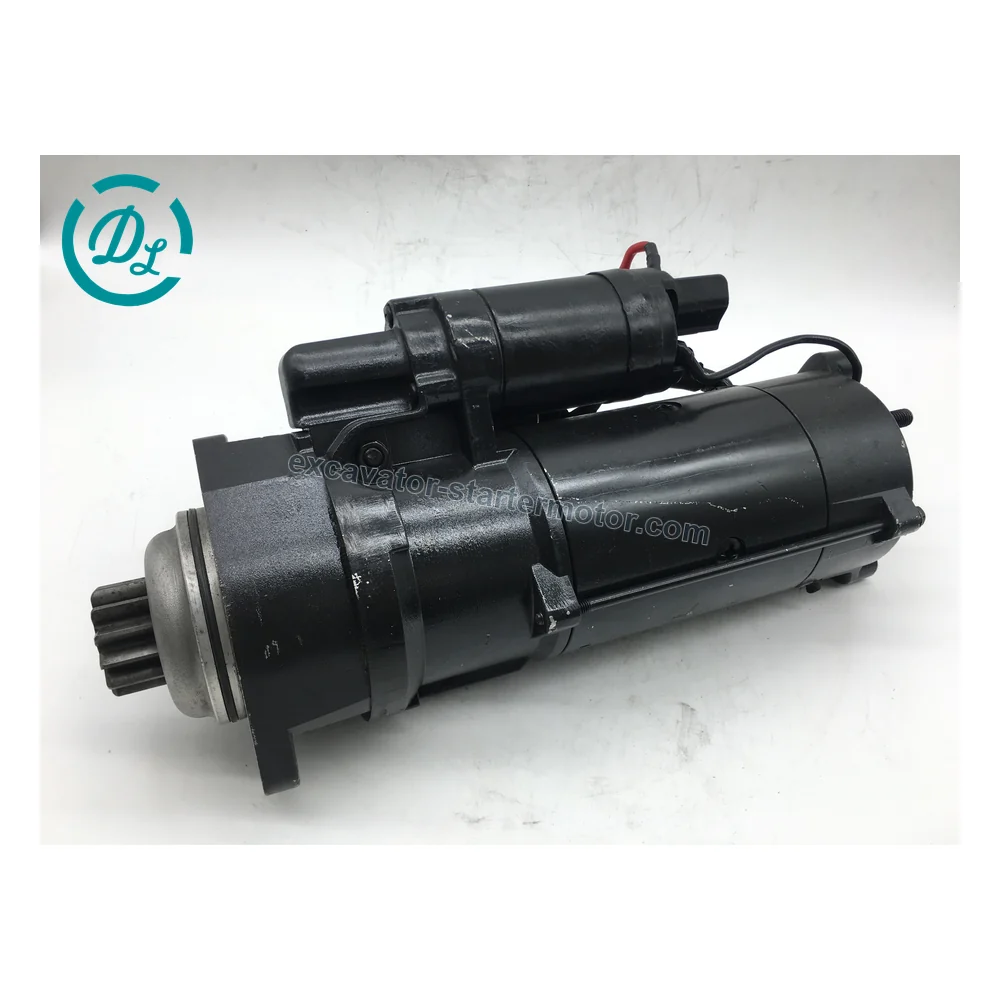

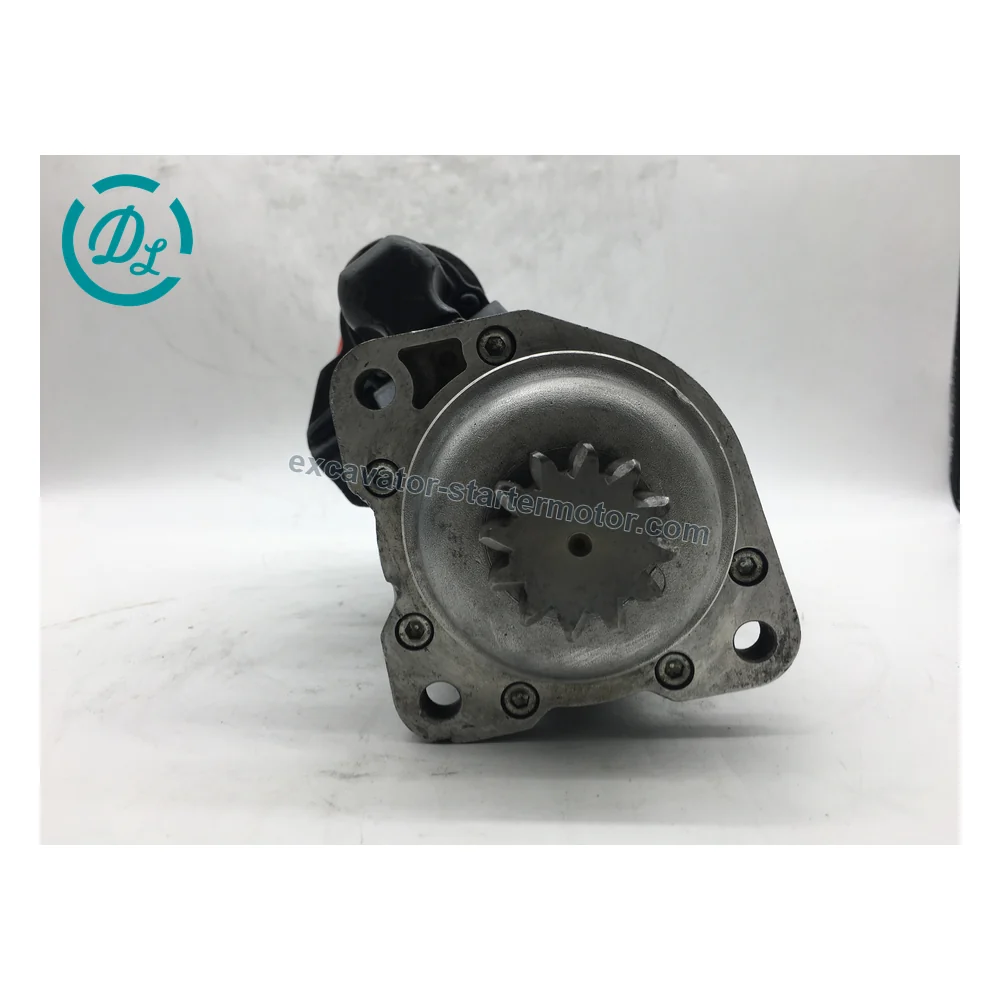

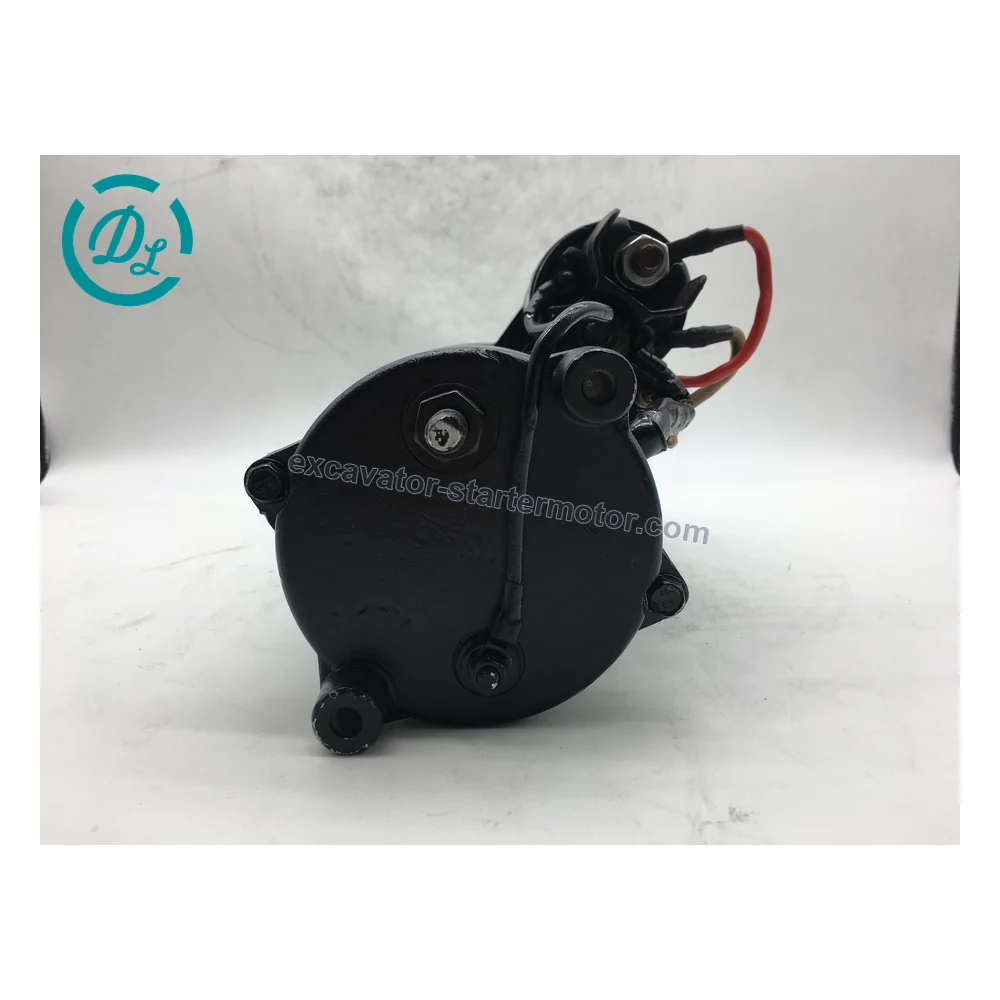

01183035 24V 5.5kW 12T Starter for Deutz TCD2015 V6 V8, OEM/reference 01183035, 24V / 5.5kW / CW / 12T / PLGR / 3-Hole / Insulated Return, product view 1

1 / 5

5 product photos · Swipe on mobile, or hover and select a thumbnail.

OEM / reference01183035

Specification24V / 5.5kW / CW / 12T / PLGR / 3-Hole / Insulated Return

Catalog ID

Product Type: Starter Motor
Voltage: 24 V
Rated Power: 5.5 kW
Rotation: CW
Pinion Teeth: 12
Design: PLGR
Flange Diameter (Size A): 89.00 mm
Pinion Position (Size B): 48.00 mm
Mounting Holes: 3
Threaded Mounting Holes: 0
Overall Length (L1): 353.00 mm
Mounting Pattern (O1/O2/O3): 127.00 / 90.00 / 90.00 mm
Mounting Hole Diameters (C1/C2/C3): 11.00 / 11.00 / 11.00 mm
Insulated Return: Yes
Condition: New replacement part

Send email inquiry Ask on WhatsApp Return to catalog

Send the machine model, engine model or nameplate photo so our team can confirm compatibility before shipment.

Quotation details: MOQ, availability, lead time, item condition (new or remanufactured) and warranty coverage must be confirmed in your quotation before ordering.

Part-number relationships

Relationship	Reference family	Number
Primary Part Number	Deutz Engine Mfr	01183035
Formatting Alias - Same Number	Deutz Engine Mfr	1183035
Manufacturer Part Number	KHD	118-3035
Manufacturer Part Number	Letrika / Iskra	11.131.609
Manufacturer Part Number	Letrika / Iskra	11.131.871
Sales Reference	Letrika / Iskra	IS1211
Technical Reference	Letrika / Iskra	AZF4657
Technical Reference	Letrika / Iskra	AZF4698
Manufacturer Part Number	Mahle	MS63
Cross-reference (fitment check required)	WAI	31484N
Cross-reference (fitment check required)	Letrika	S9409(LETRIKA)

Product fitment guide

Part numbers and compatible models

Quickly compare the reference number and recorded machine applications. Use the original photos and the checklist before ordering.

Part identification

Reference numbers

Primary number

01183035

Manufacturer number

118-3035
11.131.609
11.131.871
MS63

Formatting alias

1183035

Cross-reference (fitment check required)

31484N
S9409(LETRIKA)

Other documented relationship

IS1211
AZF4657
AZF4698

Formatting aliases are the same number written differently. Cross-references require a specification and fitment check; they do not by themselves confirm direct interchangeability. Related assemblies and remanufactured numbers are separate relationship types.

Product summary

24V / 5.5kW / CW / 12T / PLGR / 3-Hole / Insulated Return

Category: Starter Motors
Catalog ID
Photo views: 5

Before ordering

Confirm these details

Confirm voltage and power rating against the original starter nameplate.
Compare mounting-hole pattern, flange position and overall body orientation.
Confirm pinion tooth count and rotation where those values are specified.
Verify the engine model and machine serial range before ordering.

Machine fitment

Compatible model references

8 model references

Bomag: BC 772 EB-2 and MPH 122-2 with Deutz TCD2015 V06, 2006-2024
Bomag: MPH 125 with Deutz TCD2015 V08, 2006-2013
Bomag: MPH 600 / MPH 600-4i with Deutz TCD2015 V08, 2013-2024
Deutz-Fahr: 7545RTS with Deutz TCD2015 V06, 2015-2020
Matrot: M41H with Deutz BF6M1015 / TCD2015 V06, 1995-1996
Prinoth: RT400 with Deutz TCD2015 V06, 1995-2024
Sennebogen: 870M / 870R with Deutz TCD2015 V06, 2001-2008
Wirtgen: RX4500 / SF2600i with Deutz TCD2015 V06, 1996-2008

Fitment / evidence notes

Fitment limitation: Confirm 01183035 or an MS63-family number, dimensions, wiring, engine variant and machine serial

Compatibility lists identify searchable model families, not every production serial range. Confirm the original part number and machine serial number before purchase.

Quick fitment answers

Common questions about 01183035

Which machines use 01183035?

Recorded compatible model references include Bomag: BC 772 EB-2 and MPH 122-2 with Deutz TCD2015 V06, 2006-2024, Bomag: MPH 125 with Deutz TCD2015 V08, 2006-2013, Bomag: MPH 600 / MPH 600-4i with Deutz TCD2015 V08, 2013-2024, Deutz-Fahr: 7545RTS with Deutz TCD2015 V06, 2015-2020, Matrot: M41H with Deutz BF6M1015 / TCD2015 V06, 1995-1996, Prinoth: RT400 with Deutz TCD2015 V06, 1995-2024, Sennebogen: 870M / 870R with Deutz TCD2015 V06, 2001-2008, Wirtgen: RX4500 / SF2600i with Deutz TCD2015 V06, 1996-2008. Recorded fitment/evidence notes: Fitment limitation: Confirm 01183035 or an MS63-family number, dimensions, wiring, engine variant and machine serial. Confirm the complete part number and machine serial range before ordering.

What numbers are documented for 01183035?

Cross-references are listed in the relationship table above. Compare specifications and the original unit before treating a reference as interchangeable. Manufacturer number: 118-3035, 11.131.609, 11.131.871, MS63. Formatting aliases for the same number: 1183035.

How do I confirm 01183035 before ordering?

Confirm voltage and power rating against the original starter nameplate. Compare mounting-hole pattern, flange position and overall body orientation. Confirm pinion tooth count and rotation where those values are specified. Send clear photos of the original unit and connector layout when requesting a quote.
